Top Exporting Quality Farm equipment Mini round hay baler machine details
Productivity:2-5km/h;After-sales Service Provided:Overseas third-party support available;
Model Number:850;Pickup width:80cm;
Brand Name:Guoan;Bale size:50*70cm;
Warranty:1 Year;Application:Bale Hay Rice Wheat Straw;
Name:Mini round hay baler;Delivery Detail:Shipped in 15 days after payment;
Operating Speed:2-5 Km/h;Certification:ISO;
Weight:450 kg;Dimension(L*W*H):115*130*120cm;
Condition:New;Place of Origin:Shandong China;
Baler size:115*130*120cm;Baler weight:450kg;
Bale weight:15-25kg;Efficiency:1500-3000kg/h;
Supply Ability:6000 Set/Sets per Month round baler;Port:QINGDAO;
Match power:25-50hp;Packaging Detail:By iron crate package;
Type:Round baler;Type:Round Baler;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;

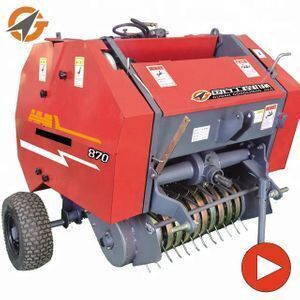

Top Exporting Quality Farm equipment Mini round hay baler machine.


1. Guoan mini round hay baler- can pickup all kinds of hay and straw.

2. The 850, 870/870F, 1070/1070F, 1090/1090F series models can supply to you. All can matched with 25-50hp tractors.

3. 870F/1070F/1090F series models has Forced Feeding technology, can prevent Jam problem when pickup Maize straw.


Product Description



Bale size:dia.*width50*70cm60*70cm62*95cm80*95cm
Dimension (L*W*H)115*130*120cm131*146*138cm131*167*156cm157*167*170cm
Pickup width800mm800mm950mm950mm
Drum speed200r/s200r/s200r/s200r/s
Math power25-5025-5025-5030-50
PTO speed540r/s540r/s540r/s540r/s
Forced feeding/870F have 1070F have 1090F have





1. Common machine is using a hydraulic valve, release the bale need to put the bundle,very inconvenient, long time use leak happens, hydraulic valve also will rust,etc .Our latest automatic solenoid valve can automatically put the bale, and the main material is aluminium alloy, not easy to rust, it can use for many years.


2. Ordinary machine roller is made of welding and the roller life is short, welding parts easy to fall off when it working ,the equipment and the operator has hidden a huge safety trouble.Our equipment is made of a forming technology, is not easy to wear and tear, no hidden dangers.


3. Common equipment use no seal or single sealed bearing, poor sealing effect, easy to dust, life is short, and easily damaged.Our equipment all parts are made of double sealed bearing, no grey, bearing using time is longer, equipment operation effect is better.


4. Ordinary equipment chain is rough , the chain is thinner, not wear-resisting, easy to fracture.Our chain adopt high quality alloy, it is not easy to fracture, long life, good transmission effect.

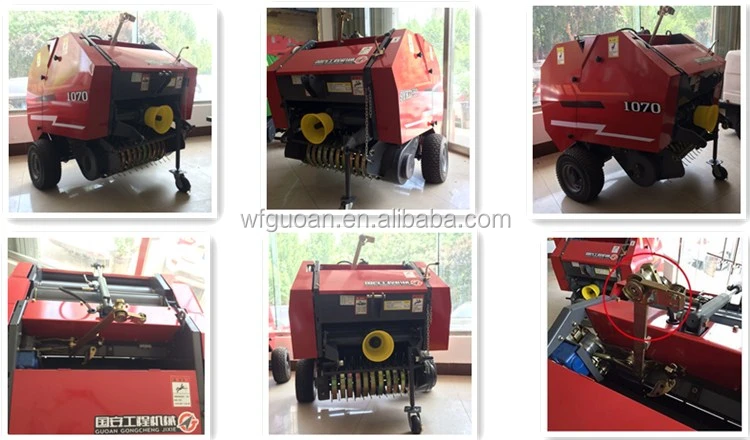

Product show:







Packaging & Shipping

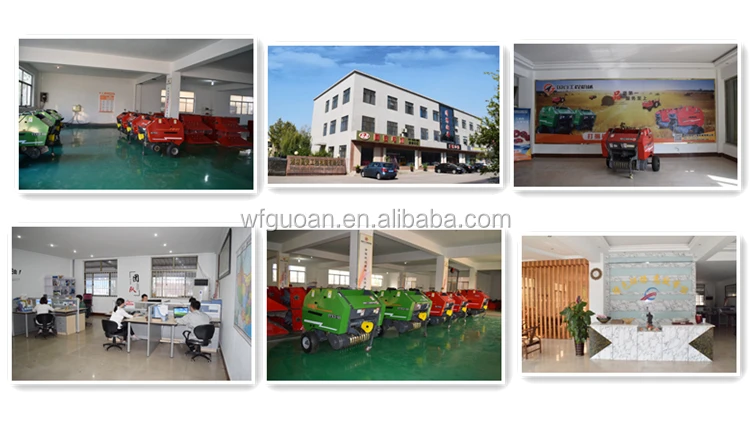

Company Information


Weifang Guoan Engineering Machinery Co., Ltd. ,Founded in 2006, is a comprehensive technology company integrating scientific research,production,sales and services.We have 20 years’ experiences of mechanical development and production. The 9YKD-50/60/850/870/1070/1090 series round baler that we have researched and produced independently are the hanging round baler that can be matched with 25-50hp tractor to go for the walking works in the field and is mainly used for collecting and bundling the dry green grass,straw,wheat-straw and cornstalk after their harvest.




1) . If you have any videos of the mini round baler?

       Yes, here is the videos website on YouTube.

       working video:

       company introduction:

       force feeding:

       connect with tractor:

2).  How much horsepower of the tractors can matched with this kind baler?

      Our baler 4 models just need the tractors with 25-50hp.

3).  How about the size of the 4 model hay bale?

      Here is the 4 model bale size(cm). 850 (50*70), 870 (60*70)

      1070 (62*95), 1090 (80*95).

If you have any other questions, welcome feel free to contact me.
