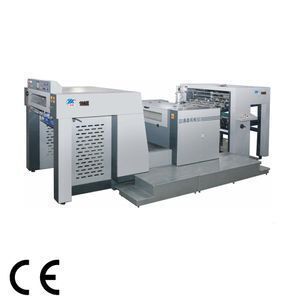

deep embossing machine YW-102E
-
Supplier: Wenzhou Yueda Packaging Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Peter Chen -
Price: $58000.00 /set -
Min. Order: 1 set
| Payment Terms: | L/C,T/T; | Brand Name: | xinxin; |
| Certification: | patent; | Automatic Grade: | Automatic; |
| Packaging Material: | Plastic; | Packaging Detail: | film plastic around,steel pallet.; |
| Weight: | 7000kg; | Usage: | Printing; |
| Condition: | New; | Embossing speed: | 5500sheets/h; |
| Driven Type: | Mechanical; | Application: | Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles; |
| Type: | Embossing Machine; | Function: | Hot Press Embossing; |
| Supply Ability: | 5 Set/Sets per Month; | Voltage: | 380v 50hz; |
| After-sales Service Provided: | Field installation, commissioning and training,Video technical support,Online support; | Place of Origin: | china; |
| Use for: | Soft Bags; | Suitable base material: | BOPP Film 0.012-0.050mm; |
| Packaging Type: | Film; | Embossing type: | Embossing Roller; |
| Dimension(L*W*H): | 5700x2000x1800mm; | Warranty: | 1 Year; |
| Port: | ningbo; |

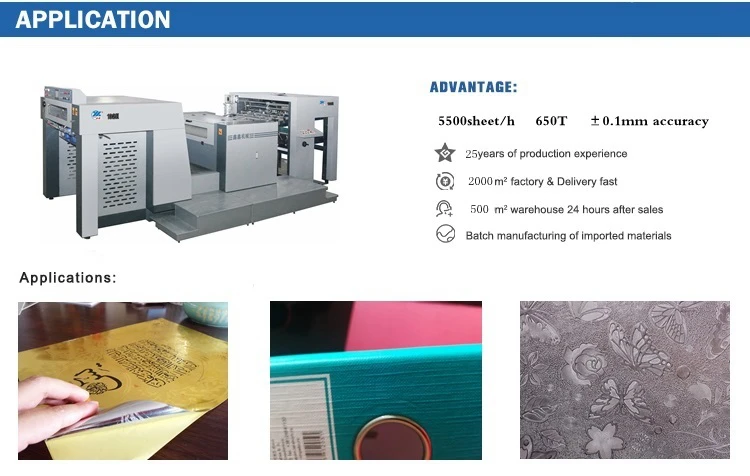

Product use:
Packing box for: cosmetics, gift, medicines, cigarette, wine, teas, handbags, etc.
Cards: greeting cards, invitation, cards, special occasion cards, playing cards, etc.
Picture: religious figures and themes, work of art, etc.
Product feature:
The embossing press adopts cylinder-to-cylinder structure with steady pressure. The pressure can easily adjust with different thickness of paper.
The wheel is designed with quick warm-up time and with temperature control ranges 80-150.You can easily adjust pressure with high precision.
The machine is applied to embossing and ink-free printing, pollution-free, low power and odorless; making different graphic images which can be special designed for customer. Such as: reflection, ice, laser, 3D, etc.
Main parameters:
Model | YW-102E |
Max. Paper size | 1020x720mm |
Min.Paper size | 450x360mm |
Max.Emboss size | 1000x680mm |
Material Thickness | 157-900gsm |
Embossing plate size | 1020x860x0.6~1.2mm |
Blanket size | 1020x950x1.8mm |
Max.speed | 5000R.P.H |
Total Power | 17kw |
Total Weight | 7000kg |
Overall Dimension | 5800x2000x1800mm |
Main part description:
Roller | |
Diameter of Embossing roller | 455.5mm |
Diameter of Liner plate roller | 454.5mm |
Blanket roller | |
Embossing surface thickness of roller | 65mm |
Diameter of shaft head | 160mm |
Embossing roller | |
Thickness of embossing roller surface | 65mm |
Diameter of shaft head | 160mm |
Wall version | |
Height | 1125mm |
Thickness | 730mm |
Precision of machine | |
Accuracy | ±0.2mm |
Thermostat | ±2℃ |
Pressure | 350T |
-
