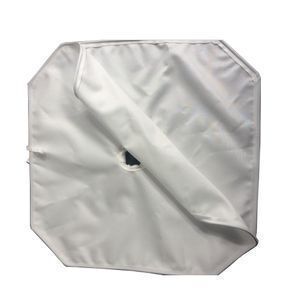

micron filter press cloth

Supplier: Shanghai Sffiltech Co., Ltd.
Region: Shanghai, China
Contact: Mr steven zhai
Price: $1.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Port:	shanghai;	Material:	PP,Polyester, Polypropylene, Cotton;
Certificate:	ISO9001;	Weaving:	plain, satin, twill;
Usage:	chemical, mine/metallurgy, food, biological, waste water indutries.;	Keyword:	filter press cloth;
Supply Ability:	10000 Square Meter/Square Meters per Day filter press cloth;	Type:	Moven filter;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Feature:	Eco-Friendly;
Brand Name:	SFF;	Model Number:	SFF-press cloth;
Material:	PP, Polyester, Polypropylene, Cotton;	Function:	liquid filter;
Place of Origin:	Shanghai China;	Packaging Detail:	carton or box for filter press cloth and water filter material with water filter cloth;
Package:	carton or customized;	Type:	Woven Filter;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;	Name:	filter press cloth and water filter material with water filter cloth;

Company Detail

Main product: Dust filtration,liquid filter filtration and related machines

1. Dust filtration-----filter bag and filter felt
Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.
2. Liquid filtration filter bag
Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.
3. Machines for making dust filter bags
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.

Usagae/Occasion
Filter bag can be used for industrial filtration,product filtration,solid/liquid separation, like:
- Asphalt mixing plants
- Biomass power stations
- Chemical and pharmaceutical industry
- High temperature dedusting
- Coal-fired power stations
- Food industry
- Non-ferrous metal and steel production
- Cement, gypsum and lime industry
- Thermal waste treatment

Detailed Image

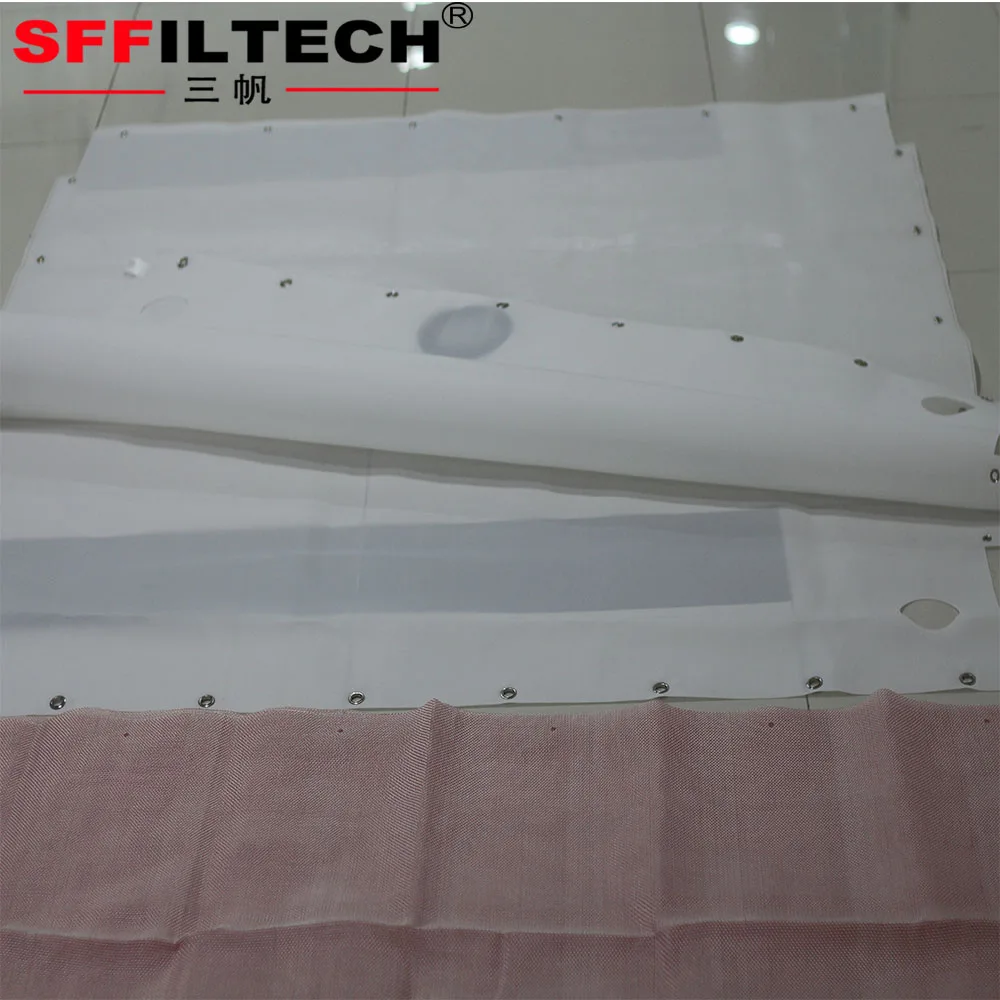

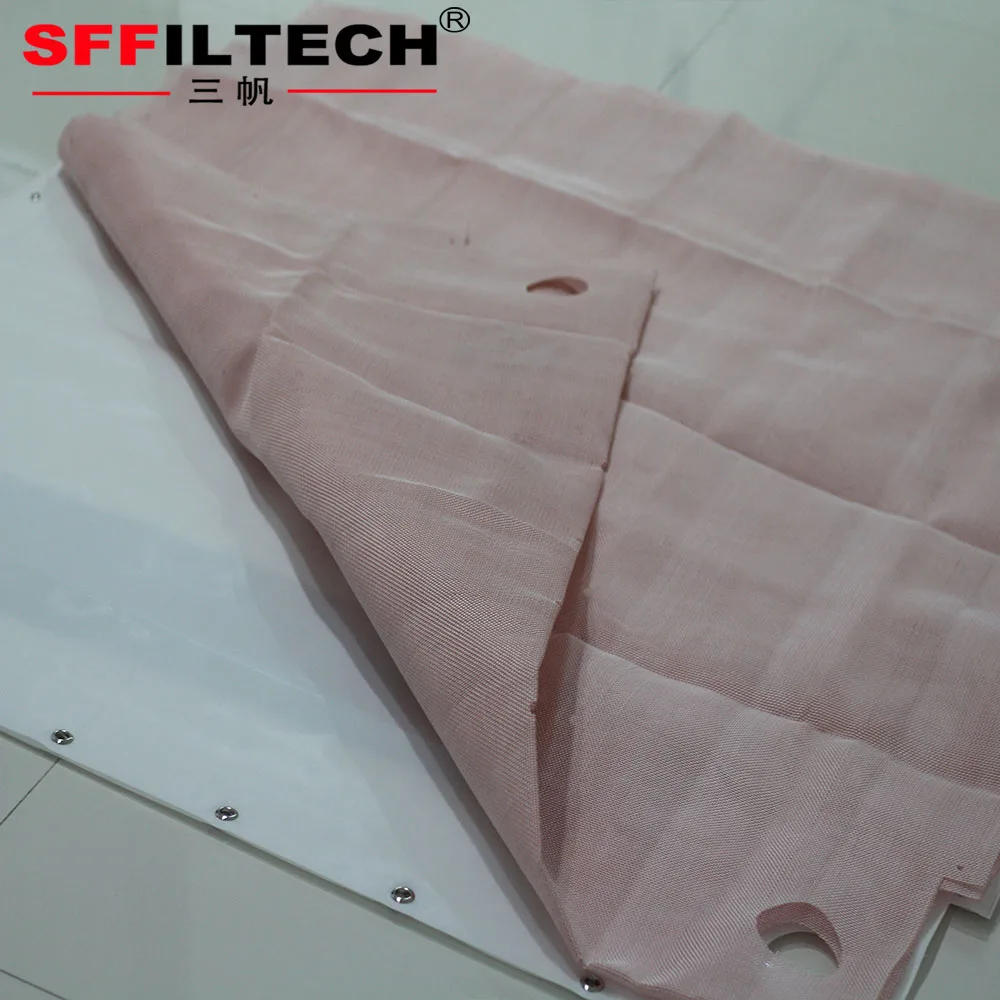

PE Filter cloths

Specs for polyester needle felt
Material	Polyester/Polyester Scrim			Thickness	1.9
Weight(g/sqm)	500	Density(g/cm³)	1.38	Air Permeability (m³/m²/min)	12~16
Warp Tensile Strength(N/5x20cm)	>1000	Weft Tensile Strenght(N/5x20cm)	>1300	Moisture Regain(20°C And 65% r. humidity)	0.10%
Warp Elongation(%)	<30	Weft Elongation(%)	<50	Support Combustion	Yes
Continuous Dry Heat Operation(°C)	135	Continuous Moist Heat Operation(°C)	94	Max Short Dry Heat Surge(Short Term)(°C)	150
Biological(Mildew, Bacteria)	fair	Alkalis	fair	Mineral Acids	fair
Organic Acids	fair	Oxidising Agents	good	Organic Solvents	good
Finishing	Singeing-calendering-heat setting
Product Applications	Chemical/ Steel/Waste Incineration/Thermoelectricity/Construction Material
Usage	Air Filter
Type	Filter Felt
Specialized in supplying
1. Needle puched felt 2. Woven filtration fabric 3. Filter bags 4. Filter cages 5. Filter tubing automatic production line

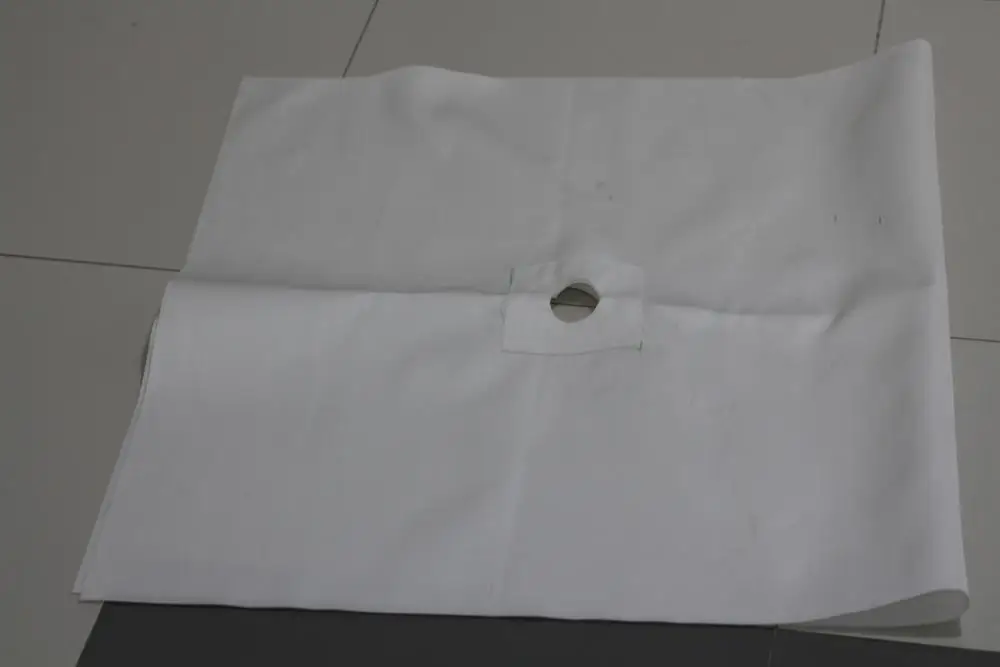

PP filter cloths

1 micron bag filters for Polyproplene are very popular recently, most of the cement industry electrical plant asphalt plant waste water treatment workshop come to us

Item	Polyproplene filter felt
Construction	Needle felt
Fibre Composition	Polyproplene or nylon
Micro rating	1um 5um 10um 25um 50um 75um 100um 125um 150um 200um 250um 300um
Continuous Temperature	90℃
Peak Temperature	95℃
Resistance Hydrolysis	Excellent
Resistance to Acids	Excellent
Resistance to Alkalis	Excellent
Resistance to Oxidation	Restrict
PHvalue	1-14
Application	Application to food ,flour.sugar,fertilizer,electropating and pesticide industries
Remark	Restrict resistance to oxidation,but excellent resistance to hydrolysis

filter sock detail picture for your referance we can make all kinds of pe liquid filter bag and any size of 90 micron tea bag filter mesh

PP Liquid filter socks felt are available in many different sizes and shapes. Normal used sizes are:

Item	Dia(inch)	length	mm
1#	7″	17″	180X420
2#	7″	32″	180X810
3#	4″	9″	102X230
4#	4″	15″	102X410
5#	6″	22″	152x559

Main Parameters of PP Liquid filter socks felt:

Material	PE,PP,NMO
Bag top ring	Plastic ring, Stainless steel ring
Relative filtration pore size	0.5, 1,5, 10, 25, 50, 100, 200 ,300µm
Type	various specifications
Airtight method:	Hot Melt, reverse sewing
Effective filtration area	various specifications
Others	special requirement of diameter and collar extension can be customized

Exhibition

Filtech in German

Filtration exhitbition in China

Biggest partner in USA to visit us in shanghai office

About us insurance

Dust filtration filter bag	Polyester filter bag Nomex dust filter bag ( nomex scrim or fiber glass scrim) Pps dust filter bag P84 dust filter bag fiber glass filter bag and so on
Liquid filtration	Micro Polyester filter bag Micro PP filter bag Nylon filter bag Stainsteel filter bag and so on
Machines for dust filtration	Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
Usagae/Occasion	Filter bag can be used for industrial filtration,product filtration,solid/liquid separation, like: - Asphalt mixing plants - Biomass power stations - Chemical and pharmaceutical industry - High temperature dedusting - Coal-fired power stations - Food industry - Non-ferrous metal and steel production - Cement, gypsum and lime industry - Thermal waste treatment
About us	1.Trade Assrurance, with trade assurance,you'll enjoy: 100% product quality protection 100% on-time shipmeng protection 100% payment protection for your covered amount 2.Gold supplier 3.We accept transactions via alibaba.com 4.Payment protection 5.on-time shipment 6.wholesal low MOQS 7.Popular Buying requests for"filter bag"and "Nut milk bag"
Size and Design	Any size is avaiable, we will follow you size and design
MOQ(small order accept)	50pcs is also accept
Price	We are factory(Our factory add for you check at any time)
Delivery time	Samples: usually shiped one day, orders, 2000pcs filter bags mass 7-15days.biggest order depengds on your quantity.
Package Detail	We have general packing,paper carton with plastic bag inside, some time with pallets.
Warm Tips	More products details,our advantage,package detail,delivery time, samples and so on, please E: info at sffiltech.com Tel.:0086-21-54715167 Phone: 0086-18501617016

Why choose us

1.our filter bag tube welding machine can weld the filter cloth automatically.
2.With the adjustable tube holder, it can welding different diameter tube size with one tube holder.
3.The puller feed the material actively to avoid the cloth dislocation and make the scrap in uniform.
4.The puller feed the material actively to avoid the cloth dislocation and make the scrap in uniform.
5.The deviation of the hot melting temperature is within ±1℃ to keep the better melting quality
6.Widely used in the PP, PE, plastic melting
7.With imported electric furnace heating wire to keep the precise of temperature
8.With advantage temperature control way to avoid the frequently connect and power off of electricity
