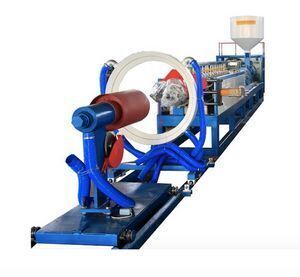

Excellent Performance EPE Foam Sheet Making Machine
-
Supplier: Laizhou Jinlida Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Ms Bella He -
Price: $99500.00 /set -
Min. Order: 1 set
| Condition: | New; | Key Selling Points: | Long Service Life; |
| Screw Design: | Single-screw; | Raw Material: | LDPE; |
| Applicable Industries: | Manufacturing Plant; | Voltage: | 380V 50HZ 3Phase(Customized); |
| Place of Origin: | Shandong China; | Plastic Processed: | PE; |
| Products' Thickness Range: | 0.3-5mm; | Supply Ability: | 10 Set/Sets per Month; |
| After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Online support; | Output (kg/h): | 400 - 500 kg/h; |
| name: | Excellent Performance EPE Foam Sheet Making Machine; | Automatic Grade: | Automatic; |
| Power (kW): | 400; | Certification: | CE ISO SGS; |
| Product Type: | EPE foam sheet, block, pipe, rod and net; | Brand Name: | JINLIDA; |
| Application: | Sheet; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Port: | QINGDAO CHINA; | Products' Width Range: | 1600-2000mm; |
| Screw diameter (mm): | 200 mm; | Screw Diameter: | 90mm; |
| Dimension(L*W*H): | 42*7*3m; | Output Capacity: | 60-90 kg/h; |
| Packaging Detail: | pvc film and epe sheet wrapping to avoid possible damage during shipment; | Payment Terms: | L/C,T/T; |
| Weight: | 15T; | Warranty: | 1 Year; |
| Power(W): | 185kw; |
EPE Foam Sheet Making Machine can produce EPE foam materials which are flexible packaging materials with good elasticity, shock resistance, excellent pressure reducing, shockproof and natural degradable. Because of the low cost and high grade, they are widely used in the packaging of electronic instrumentation, household appliances, computer, bicycle, various furniture, leather shoes, glass ceramics, etc.
Our EPE foam machines apply for the production of EPE foam materials. After thawing the LDPE resin mixed with butane gas, talcum powder, anti-shrink agent and other agents. With different mold heads, the extruder can foam and form various shapes of products, such as sheet, tube, rod, angle profiles (L or U), round and batten. Then use the different ancillary equipment to roll, cut, laminate or coating.
Model | L*W*H | Weight | Screw Diameter | Total Power | Foaming Ratio | Output Capacity | Products' Width | Products' Thickness |
| (m) | (ton) | (mm) | (kw) |
| (kg/h) | (mm) | (mm) |
EPE-75 | 20*4*3 | 3 | 75 | 55 | 30-40 | 25-50 | 1600 | 0.3-3 |
EPE-90 | 22*4*3 | 7.5 | 90 | 75 | 30-40 | 60-90 | 1600-2000 | 0.3-5 |
EPE-105 | 25*4*3 | 8.5 | 105 | 95 | 30-40 | 80-120 | 1600-2500 | 0.3-6 |
EPE-120 | 27*4*3 | 9.5 | 120 | 115 | 30-40 | 120-180 | 1600-3000 | 0.5-8 |
EPE-135 | 35*4*3 | 10.5 | 135 | 150 | 30-40 | 170-240 | 1600-3000 | 1-10 |
EPE-150 | 38*7*3 | 11 | 150 | 220 | 30-40 | 250-300 | 1600-3000 | 2-12 |
EPE-180 | 41*7*3 | 11 | 180 | 330 | 30-40 | 300-400 | 1600-3000 | 2-12 |
EPE-200 | 42*7*3 | 15 | 200 | 400 | 30-40 | 350-500 | 1600-3000 | 3-18 |
EPE-220 | 45*7*3 | 18 | 220 | 320 | 30-40 | 400-600 | 1600-4000 | 3-20 |
EPE-250 | 50*7*3 | 23 | 250 | 330 | 30-40 | 500-800 | 1600-4000 | 4-20 |
CLICK THE PICTURE FOR DETAIL OF RELATED PRODUCTS
1. We will send our rich experience engineers to your country for machinery installation, debugging, operator training.
2. We are 365 days on line, and give you response in 24 hours anytime you contacted with us.
3. We will amend or adjust the machines based on customer requirements.
Standard Safe Export Packaging
1. Use the PE foam sheet pack every part to avoid damaging.
2. Use anti-rust oil to the metal parts and cover with stretch film.
3. Use wood to fix the machines in container to make sure them can not move.
4. As per customer's requirements.
Our company, Laizhou Jin Lida Machine Co.,Ltd. is located on Laizhou City, Shandong Province, China. We always welcome you to visit us and we are prepared to show you our quality products.
-
