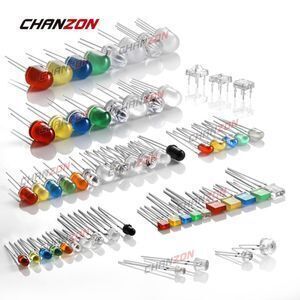

3mm 5mm 8mm 10mm LED Diode Warm White Red Green Blue Yellow UV RGB Orange Pink Round Oval Flat Straw Hat Light Emitting Diodes
- 0.01 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certificsdfates Type: | Rohs; | Country of Origin: | China Shenzhen; |
| Brand: | CHANZON; | Supply Ability: | 500000 Piece/Pieces per Week; |
| Max. Reverse Current: | 30uA; | Payment Terms: | T/T,Western Union,MoneyGram,Paypal; |
| Max. Reverse Voltage: | 5V; | Max. Forward Current: | 20mA; |
| Application: | PCB / Indicator / LED Lamp; | Packaging Detail: | ESD Bag + Kraft Paper Box; |
| Place of Origin: | Guangdong China; | Max. Forward Voltage: | 1.8V-3.3V; |
| Type: | LED; | Port: | China Shenzhen; |
| Model Number: | AA0001 ~ AA0188; | Package Type: | Through Hole; |
| Brand Name: | CHANZON; |
All Series Through Hole LED Diodes
| Tips |
| 1. According to the following form, find the "Model Number" of the model you need. |
| 2. Send the model number and the quantity to us, we will quote in 24 hours. |
Specification:
Lens Shape: Round / Flat Top / Straw Hat / Rectangle / Oval / Piranha
Lens Size: 3mm / 5mm 8mm / 10mm / 2x3x4mm / 2x5x7mm / 5x4x6mm
Emitting Color: White / Red / Green / Blue / Yellow / Orange / Pink / UV / Warm-white / Yellow-green

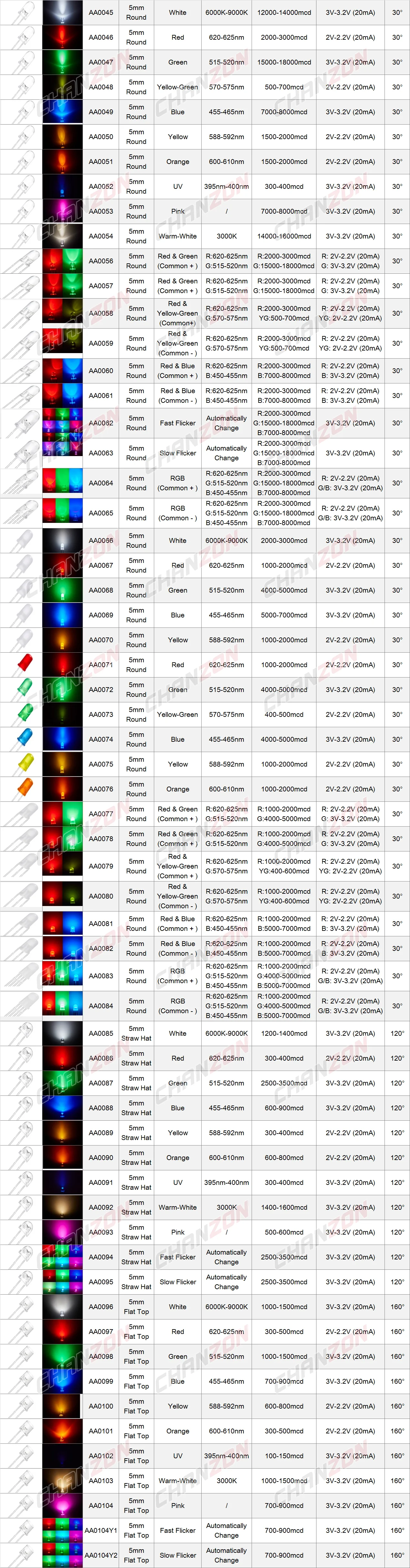

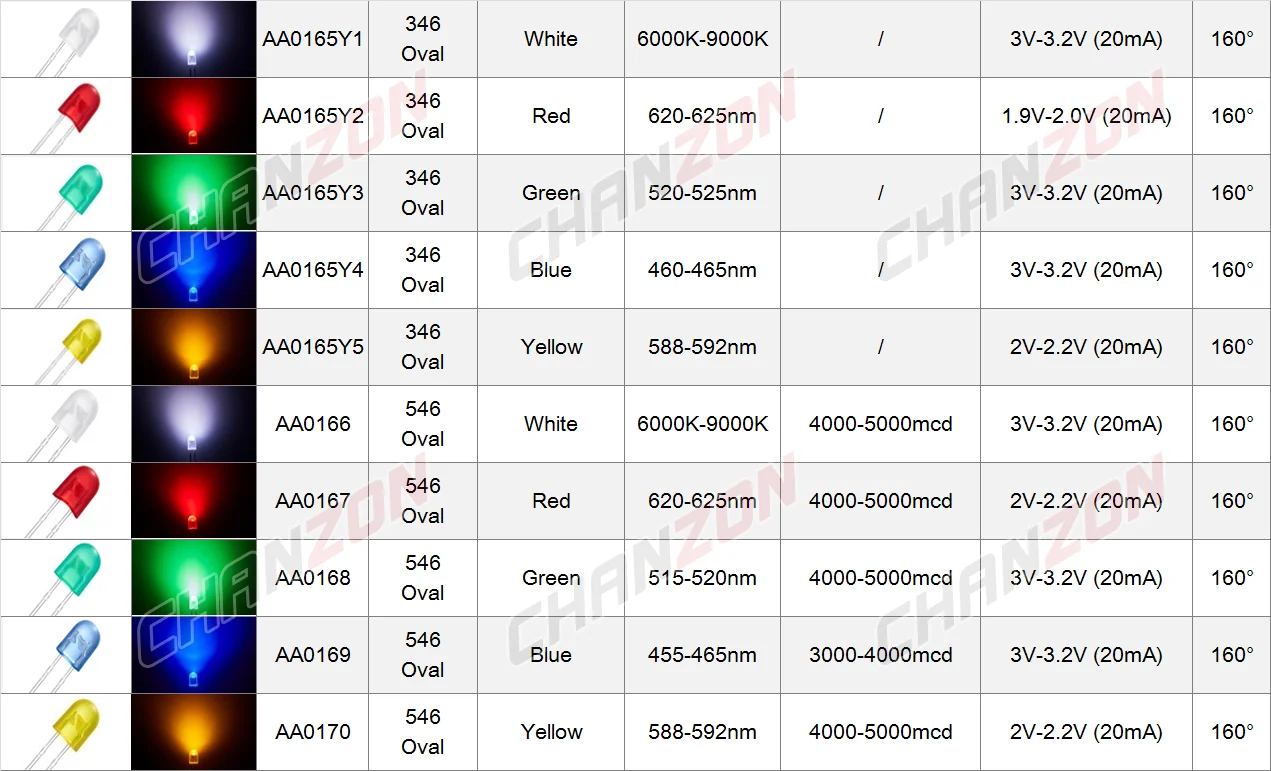

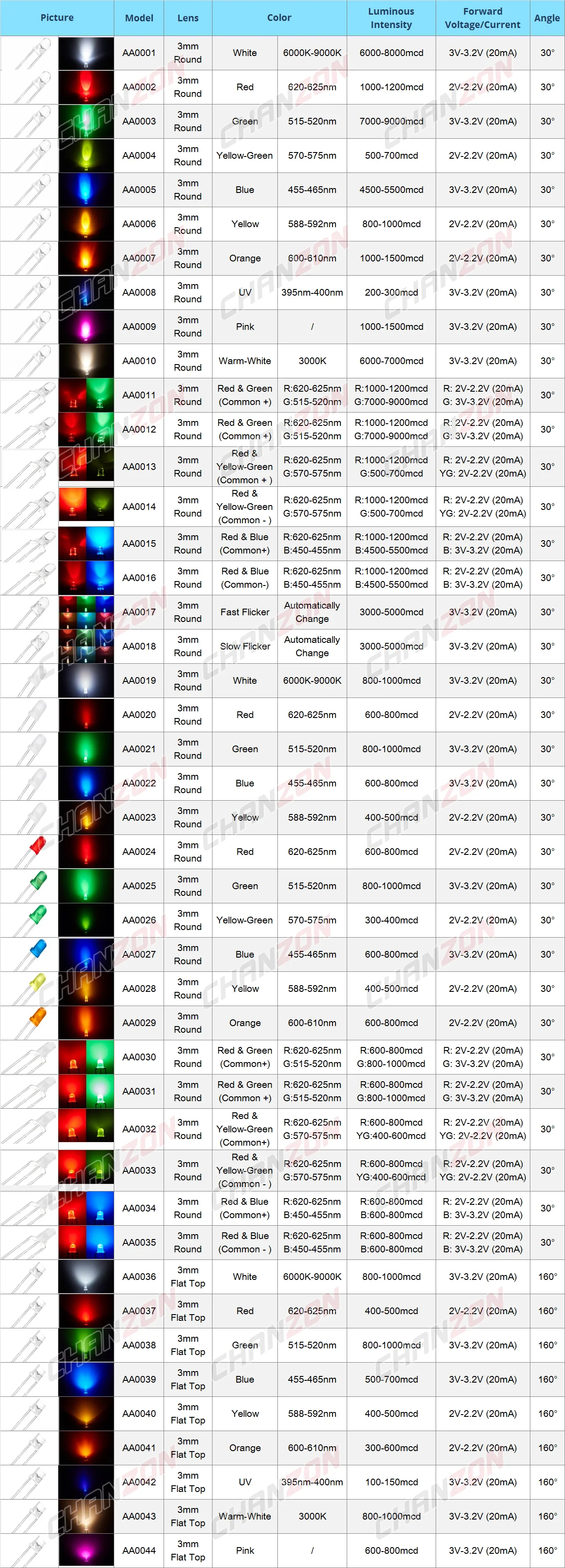

Luminous Intensity: See the Specification Picture
Viewing Angle: See the Specification Picture
Polarity: Anode (Longer Part) | Cathode (Shorter Part)
