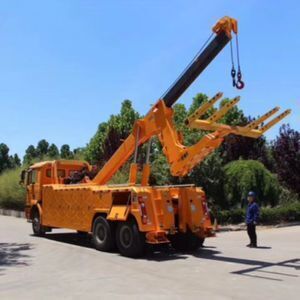

SHACMAN heavy tow truck wrecker truck H3000 6x4 300HP

Supplier: Shaanxi Zhongji Huasheng Trading Co., Ltd.
Region: Shaanxi, China
Contact: Ms. Gina Ji
Price: $60000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	1 Set/Sets per Week;	Packaging Detail:	Nude packing Shipped according to customer requirement;
Driving type:	6x4;	Place of Origin:	Shaanxi China;
Port:	china main port;	Brand Name:	Shacman;
Fuel Type:	Diesel;	Product name:	Car Towing Wrecker Truck;
Tires:	12.00R20;	Condition:	New;
Payment Terms:	L/C,T/T;	Emission Standard:	Euro 2;
Transmission Type:	Manual;	Dimensions (L x W x H) (mm):	10200x2490x3300;

MODEL		SX5255TQZMN584
Driving type		6×4
Curb weight(kg)		14100kg
Max.Weight(kg)		55000kg(technology)
Overall Dimensionmm(LxWxH)		10200×2490×3300
Wheelbase(mm)		5775+1400
Max. Speed(km/h)		99 km/h
Max. Grade ability(%)		30
Engine	Brand	WEICHAI
	Model	WP10.300E22
	Emission Standard	EUROⅡ
	Rated output power	300HP
	Rated speed/(r/min)	2200
	Max.Torque/	1240N.m/1200~1600r/pm
	Displacement(L)/	Displacement 9.726L
Transmission	Brand	FAST
	Model	RTD-11509C with QH70 PTO,9 forward,1 reverse
Front axle	Brand	HANDE
	Model	MAN 7.5T
Rear axle	Brand	HANDE
	Model	16t MAN double reduction axle,ratio 4.266
Clutch		430 diaphragm clutch
Steering		ZF technology
Frame		850×300(8+5)
Suspension		multiple leaf springs front and rear
Fuel tank		400L aluminium alloy flue tank /400L
Wheels and tires		12.00R20
Brakes		Running brake:Dual circuit compressed air brake
		Parking brake:Air discharging with spring control
		Auxiliary brake:Engine exhaust brake
		Without ABS

Cabin: H3000 standard roof cab/ one sleeping bed/hydraulic driver seat with seatbelts/ four-point hydraulic suspension cab/ electric window machine/ hydraulic reversal/ordinary rearview mirror/ electronic air-condition with temperature control/ metal bumper

Product Description

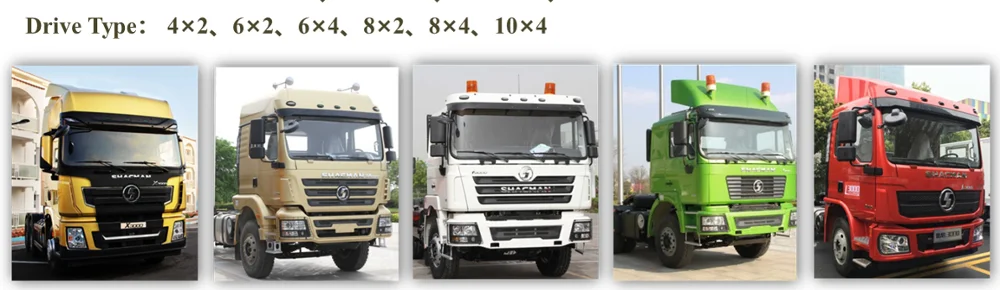

SHACMAN five platforms:X3000,M3000,F3000,F2000 and L3000,

which cover tractors,dumper trucks,lorry trucks and special vehicles in all aspects.
