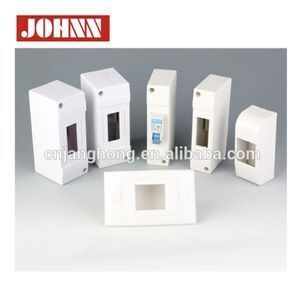

IP30 ABS PC HAG II Industrial Electrical Power Distribution Box Equipment

Supplier: Yueqing Jianghong Electrical Appliance Factory
Region: Zhejiang, China
Contact: Ms Ran Zheng
Price: $0.33 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Protective Degree:	IP30;	Supply Ability:	100000 Piece/Pieces per Month If you need sample, we can supply for you.;
Brand Name:	JOHNN;	Color:	White;
Sample:	If you need sample, we can supply for you.;	Port:	SHANGHAI or NINGBO;
Price:	Distribution Box's Price is Competitive.;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Material:	ABS,PC;	Test Standard:	Accord with IEC 060439-3, IEC 60529;
Range:	1-18Ways;	Rated Current:	50A -63A;
Name:	Distribution Box Equipment;	Model Number:	HAG II Series;
Place of Origin:	Zhejiang China;	Packaging Detail:	1. Package Size : 53X45X31 CM .2. Gross Weight / CTN : 9-20.9KGS, Net Weight / CTN : 8-19.9KGS. 3.Package Amount: 200-15PCS / CTN.;

IP30 ABS PC HAG II Industrial Electrical Power Distribution Box Equipment

Product Description

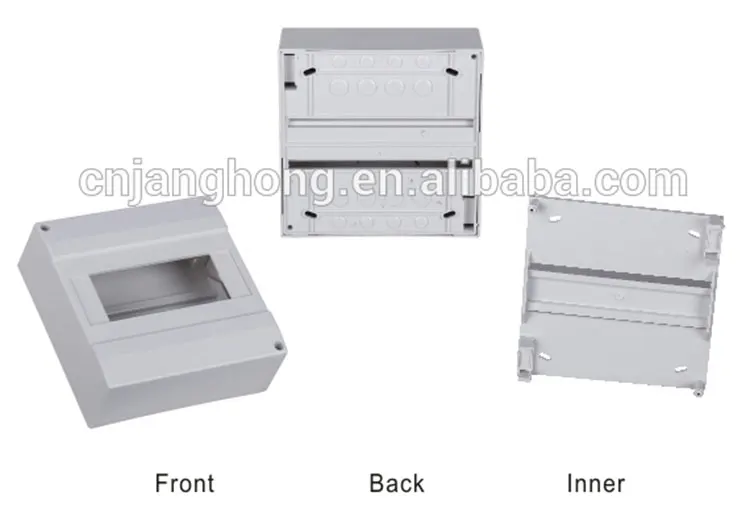

Details of HAG Ⅱ Series Distribution Box

* Model Number: HAG II Series Plastic Distribution Box

* Material: Insulation, Fire-Proof type refractory material

* Color: White

* HS Code: 8537109090

* Rated Current: 1 Way to 4 Way: 50A; 6 Way to 18 Way: 63A.

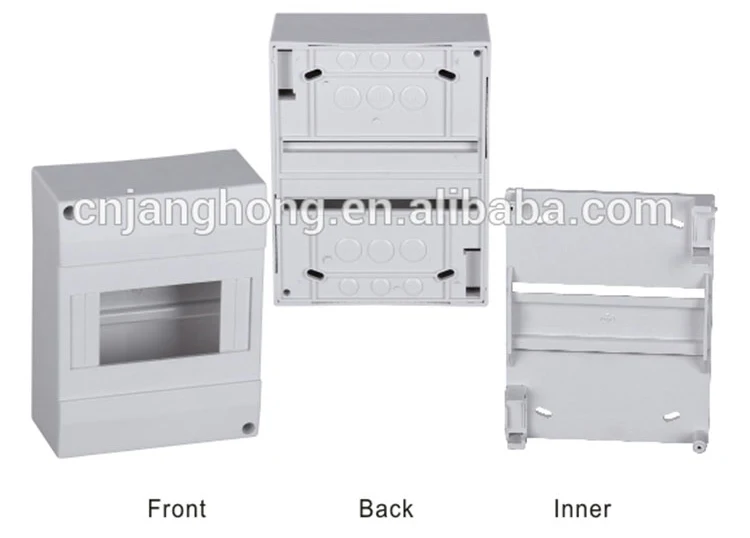

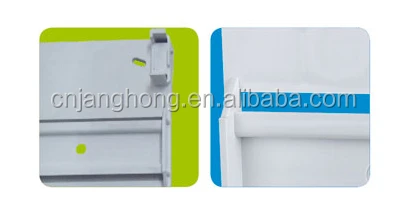

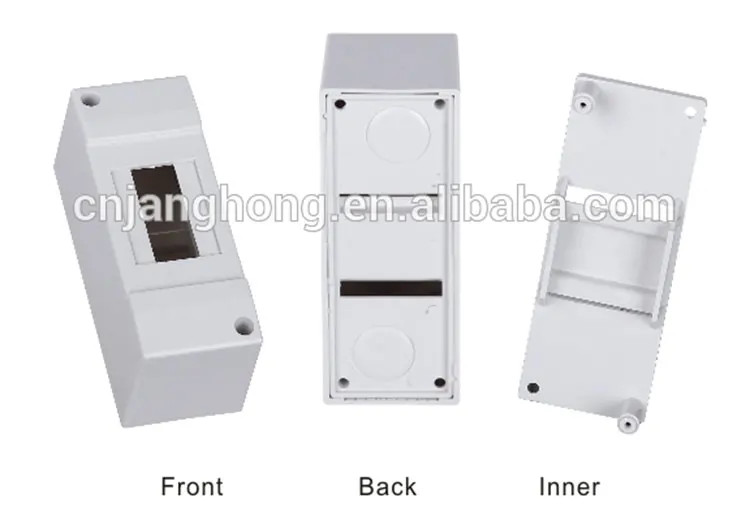

* Composition Structure:Removable matte blocks to increase the poles. The removable various size holes are available on the box of up and down, bottom in case of connecting wires in and out.

* Samples: Distribution Box's samples is available.

* Feature:

* HAG II series of surface box is kind of good-looking outline small volume. Easy to install economically modular distribution box. It mainly use for building electric distribution system's installation, matched and house rebuild fitment etc application.

* Qualification Certificate: CE , RoHS and etc.

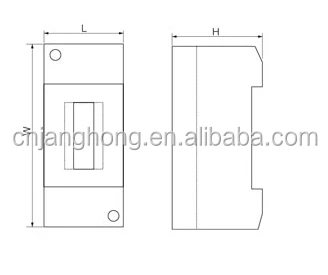

Specification of HAG II Series Distribution Box

Model Number	Dimensions
Model Number	L(mm)	W(mm)	H(mm)

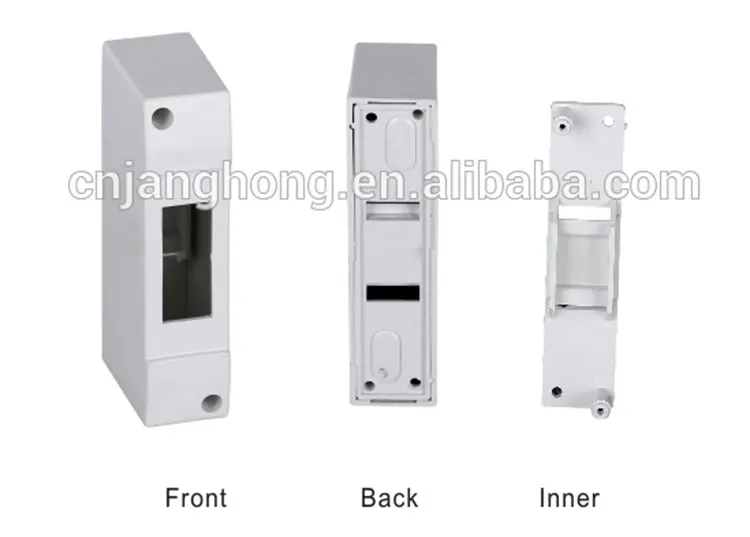

HAGⅡ-1P	34	130	60
HAGⅡ-2P	52	130	60
HAGⅡ-4P	87	130	60
HAGⅡ-6P	125	160	60
HAGⅡ-8P	160	160	60
HAGⅡ-12P	258	160	60
HAGⅡ-18P	365	160	60

Product Type	Package Size (CM)			QTY/CTN (PCS)	G.W (KGS)	N.W (KGS)
HAGⅡ-1P	53	45	31	200	17.7	16.7
HAGⅡ-2P	56	54	36.5	200	20.9	19.9
HAGⅡ-4P	53	45	31	100	11.6	10.6
HAGⅡ-6P	63	49	37	90	15.6	14.6
HAGⅡ-8P	64	49	31	60	12.5	11.5
HAGⅡ-12P	54.5	35.5	36	20	9	8
HAGⅡ-18P	76.5	35.5	36	15	11	10
