1873 snap on gripper chains for bottling machine 1873-D-K750

Click here to contact

Product details

Single gross weight:	3.3 KG;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory;
Single package size:	53X30X31 cm;	Type:	Leaf Chain;
Standard or Nonstandard:	Standard;	Selling Units:	Single item;
Transmission Chains:	plastic top gripper chains;	Tensile Strength:	3200N;
Working load:	3200N;	Certification:	ISO9001:2000;
Width:	152.4mm;	Size:	Standard size;
Business Type:	Manufacturer;	Material:	Plastic+rubber+SS;
Pitch:	19.05mm;	Brand Name:	LL;
Max length:	30m;	Package Type:	Carton or wooden package,to be suitable for sea and inland shipment;
Length:	1.524m;	Mat:	POM,Rubber;
Place of Origin:	Shanghai China;

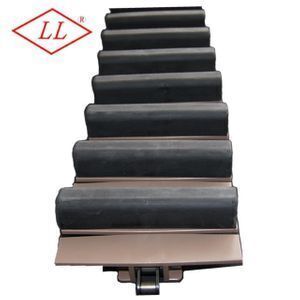

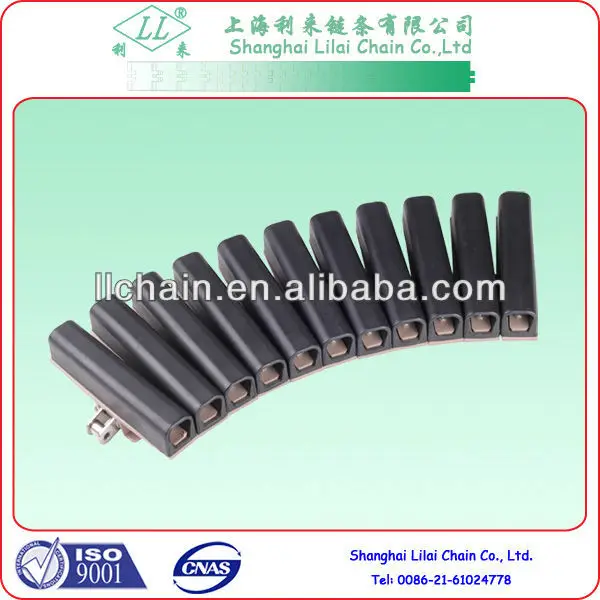

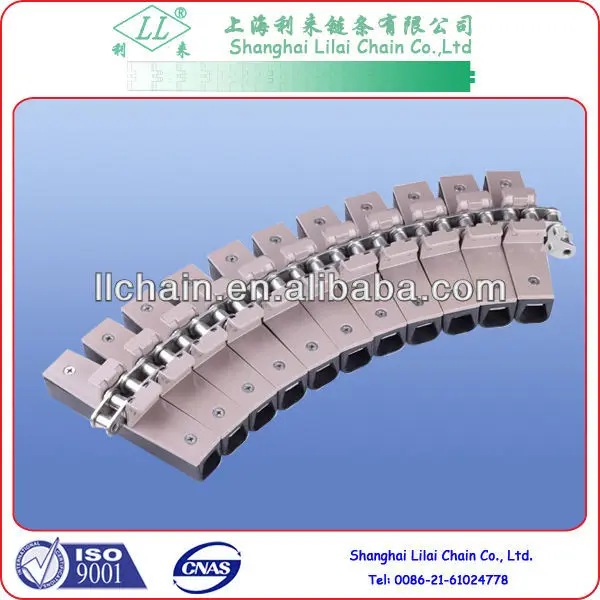

snap on gripper chains for bottling chains

Temperature range: -40°~90° Plates material: POM

Color: brown Roller base chain: standard 12A roller chain

Supply unit:1.524mtr (5ft) Max speed: 80m/min lubrication 50m/min dry

Working load: 3200N (mat.: CS), 1600N (mat.: SS) Packaging:1.524m/pc

Base roller chain material: stainless steel or carbon steel

Max conveying length: 30m (mat.: CS), 24m (mat.: SS)

Main application : for vertical conveying of cans, glass bottles, etc..

Other Products:

Introduction of our company:

Shanghai Lilai Chain Co.,LTD
Shanghai Lilai Chain Co., Ltd. specialized in manufacturing conveyor chains, modular belts, sprockets and conveyor components. Since 1998 we have been supplying products to customers in Italy, Germany, Spain, etc. Now we have business all over the world.




Main application:		Food,beverage and Pharmaceutical industry etc,such as transportations of bottles.
Certification:		ISO9001:2000
Note:		For the fast results, when requesting a quote: 1.Please inform quantities , material , sketches, drawings, lead time , etc. 2.We will reply you ASAP. 3. If you want to know more , please feel free to contact us.
