ALION AHC15A 240VAC din rail Daily and weekly programmable Electronic LCD Digital Timer

Product details
Frequency:50-60 Hz;Width:2 modules;
Usage:Timer Switch;Theory:Electronic;
Power consumption:4VA;Supply Ability:15000 Piece/Pieces per Month;
Brand Name:ALION;Shortest switching time:1 min;
Model Number:AHC15A;Installation type:DIN-rail;
Place of Origin:Zhejiang China;Incandescent/halogen lamps:2300 W;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Power reserve:3 years;
Port:Ningbo or Shanghai;Type:Mini;
Packaging Detail:Packed in standard export cartons.;Battery:3YEARS;
Operating voltage:230 - 240 V AC;Item:AHC15A LCD Digital Timer;

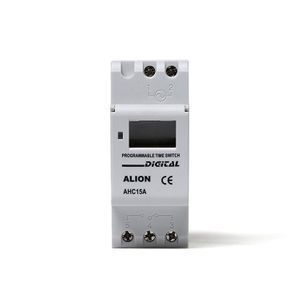

ALION Din Rail Weekly Timer, AHC15A Programmable Digital Time Switch

Product Description

Focus On Time Control For 24 Years

The AHC15A serives are cost-effective choice,there are very diverse features and flexible installation, and a wide range of applications including commercial and industrial lighting and equipment control.



Description:
- Din rail weekly program Digital time switch
- 1 channel
- 24-Hour or 7-day applications
- 20 ON/OFF program
- 20 pulse programs(1s~59m59s)
- Countdown program(1s~59m59s)
- Calculated switching times
- Integrated operating hour counter
- Auto-correct time(-30 sec ≤Change in time≤30 sec)
- Built-in lithium battery,power failure memory
- Preset date and time
- Fully operable without mains connection
- Permanent switching ON/OFF
- 12/24 hour format conversion
- Screw terminals

Applications:

- Light of billboard or showcase control
- Air-condition or Commercial Refrigeration
- Pumps/Motor/Fan Control
- Hydroponic Systems
- Wastewater Treatment Systems
- Generator Exercising
- Boilers / Heater Control
- Pool & Spa
- Ventilation
- Hot Water Pump Circulation
- Lighting Panel Control
- Landscape Lighting
- Bug and Pest Control Systems
- Aerobic Waste Water Systems
- General Electrical Circuits





Technical data:

+
Product TypeAHC15A
Number of  ON / OFF programs20
Number of pulse programs20
Range of pulse time1s~59m59s
Range of countdown1s~99m59s
Width2 modules
Installation typeDin rail
Type of contactChangeover contact
Switching outputPhase-independent
Method of connection terminalScrew terminals
Power reserve3 years
Switching capacity at 250 V AC, cos φ = 116A
Switching capacity at 250 V AC, cos φ = 0,610A
Incandescent/halogen lamp load 230V2600W
Energy saving lamps170W
LED lamp < 2 W30W
LED lamp 2–8 W100W
LED lamp > 8 W120W
Fluorescent lamp load (electronic ballast)650W
Fluorescent lamp load (conventional) not corrected1000VA

Fluorescent lamp load (conventional)

series-corrected

1000VA
Fluorescent lamp load (conventional)
parallel-corrected
730 VA 80uF
Time accuracy at 25 °Ctypical ± 2 s/day (quartz)
Consumed power4VA
Test approvalCE
Type of protectionIP 20
Protection classII according to EN 60 730-1
Housing and insulation materialHigh-temperature resistant, self-extinguishing thermoplastic
Work  temperature:-10 ~ +50 °C (non-icing)
Ambient humidity:35~85% RH



Product selection:

+
Product TypeVoltageFrequencyTerminalSwitching capacity
AHC15A-220/50Hz-16A220V50Hz516A
AHC15A-220/60Hz-16A220V60Hz516A
AHC15A-110/50Hz-16A110V50Hz516A
AHC15A-110/60Hz-16A110V60Hz516A
AHC15A-12V-16AAC/DC 12V 50/60Hz for AC516A
AHC15A-24V-16AAC/DC 24V 50/60Hz for AC516A
AHC15A-220/50Hz-3P-20A220V50Hz320A
AHC15A-220/50Hz-5P-20A220V50Hz520A
AHC15A-220/60Hz-3P-20A220V60Hz320A
AHC15A-220/60Hz-5P-20A220V60Hz520A
AHC15A-110/50Hz-3P-20A110V50Hz320A
AHC15A-110/50Hz-5P-20A110V50Hz520A
AHC15A-110/60Hz-3P-20A110V60Hz320A
AHC15A-110/60Hz-5P-20A110V60Hz520A
AHC15A-12V-20AAC/DC 12VAC 50/60Hz520A
AHC15A-24V-20AAC/DC 24VAC 50/60Hz520A

Connection example:Scale drawings:
