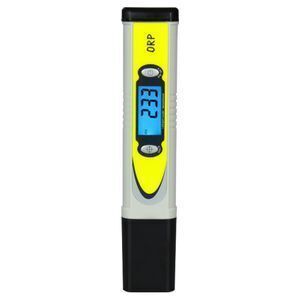

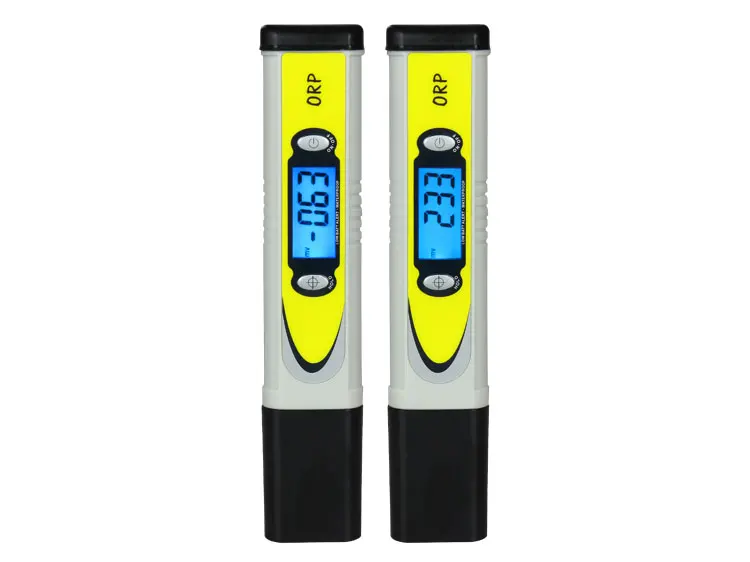

New goods -1999mv to +1999mv pen type digital redox water tester orp meter for pool

Supplier: Guangzhou Jubway Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Boway Zhu
Price: $21.90 /unit
Min. Order: 1 unit

Click here to contact

Product details

Test item:	Test water negative potential value;	Packaging Detail:	Quantity: 5 pieces per carton Weight: 0.9 kg Carton Size: 25198 cm 20"ft" Container: 7368 cartons 40"ft" Container: 15263 cartons;
Supply Ability:	1000 Unit/Units per Month;	Product name:	orp meter;
Payment Terms:	L/C,T/T,Credit Card, Debit Card.;	Operating temperature:	0~50℃;
Size:	1683320 (mm);	Model Number:	A57-B-1;
Tolerance accuracy:	± 5 mv;	Measurement range:	-1999 ~ 1999mv;
Port:	Guangzhou, Shenzhen;	Application:	Pool, aquarium, hydroponics, household drinking water;
Advantages:	High accuracy, fast determination, backlight display;	Battery:	4*1.5V ( AG-13 button battery );
Resolution:	1 mv;	Brand Name:	Jubway or OEM;

New goods -1999mv to +1999mv pen type digital redox water tester orp meter for pool

F01 Product Specification of orp meter

Model No:	A57-B-1
Measurement range:	-1999 ~ 1999mv
Tolerance accuracy:	± 5 mv
Battery:	4×1.5V ( AG-13 button battery)
Operating temperature:	0~50℃
Size:	168×33×20 (mm)
Test item:	Test water negative potential value.
Advantages:	Fast determination, high accuracy and backlight function.
Application:	Swimming pool, aquarium, hydroponics, household drinking water.

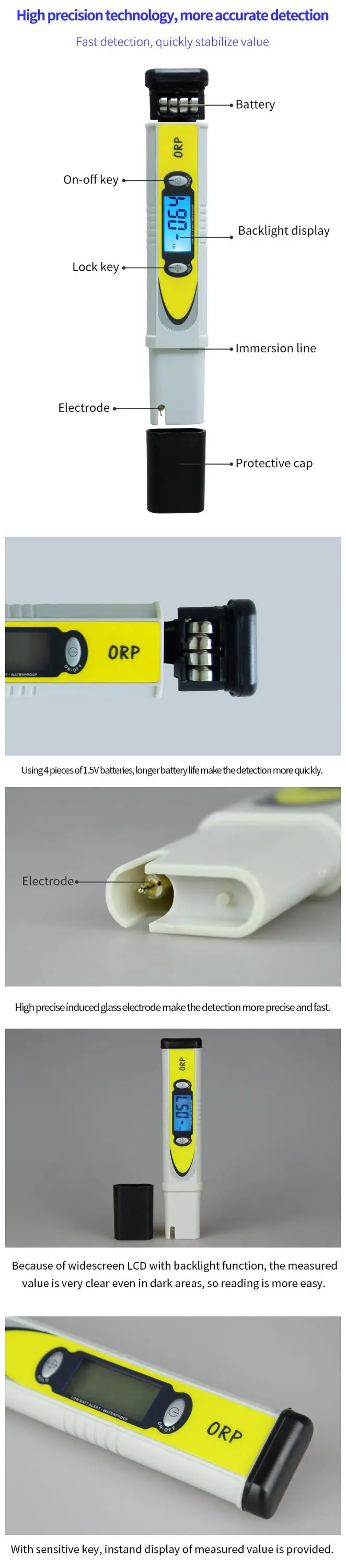

F02 Advantages and structure of orp meter

F03 Instructions and cautions of orp meter

Use Steps:

Step 1: Remove the protective cap, clean the electrode with water.

Step 2: Press " on-off" key, then put ORP meter into the water, the water should

not exceed water line.

Step 3: Wait for around 10 minutes until the reading become stable, then press

"HOLD" key to lock the measured value.

Step 4: After use, clean the electrode with water and wipe off water on the

electrode.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Cautions:

1. While test, gently stir the orp meter to remove the water bubbles on the

electrode until the reading pulsate very slowly and reading become stable.

Normally it takes a few minutes or even approximate 10 minutes to stablize

the reading.

2. Although the orp meter is waterproof, it should not be immersed in water

for long time, so the water should not exceed water level in order to extend

its life.

3. It is normal phenomenon that the measured values of orp meter vary irregularly.

F04 How to calibrate the ORP meter?

Step 1: Put the orp meter into saturated potassium chloride solution for 2 to 3

hours.

Step 2: Clean the electrode with water, then put orp meter into 256mv standard

solution and shake gently.

Step 3: Adjust correction potentiometer with a mini screwdriver until reading

is 256mv.

F05 The importance of ORP meter

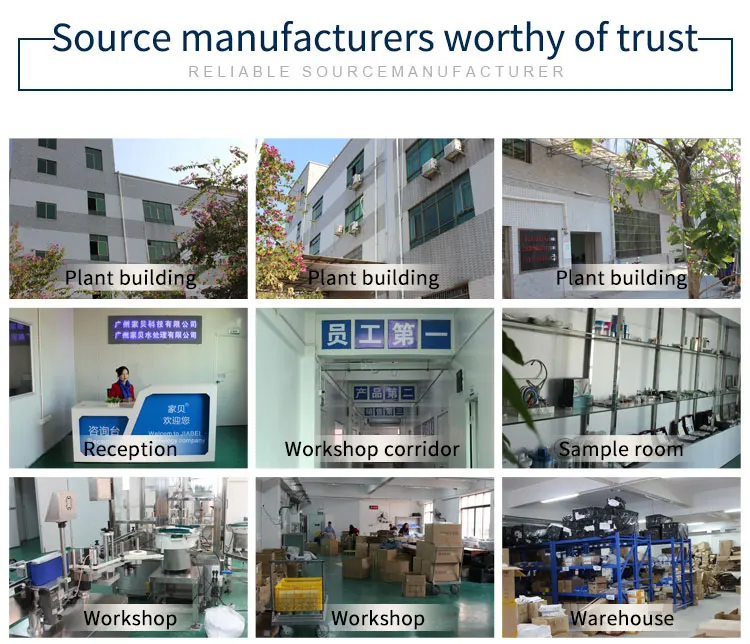

F06 Our company and factory profile

Guangzhou Jubway Technology Co.,Ltd was established in 2009 in Guangzhou and specialize in water quality testing devices over 13 years.

We are one professional enterprise with a combination of research,design, manufacture and sales, we have our own brand of Jubway. We are skilled

in R&D and has developed series of patented products, such as TDS meter, water electrolyzer, TDS minerals testing meter, electronic color comparator, ORP meter,

pH meter, water test kit and so on. Meanwhile, we have long-term cooperative clients both in china and abroad.
