Germany Type Stainless Steel hose clamp KEBG12X032SS

Product details
Port:Shanghai;Color:Silver White;
Brand Name:K-SEAL;Model Number:KEBG12X032SS;
OE NO.:N/O;Usage:Motorcycle Hose;
Warranty:1 Years;Standard:Din 3017;
Size:Varisized;Packaging Detail:10pieces/bag 50bags/carton for Germany Type Stainless Steel zebra hose clamp;
Car Make:Universal Car;Supply Ability:50000 Piece/Pieces per Day;
Material:Stainless Steel;bandwidth:12mm;
Usage:zebra hose clamp;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;
Delivery Detail:25 days;Place of Origin:Anhui China (Mainland);

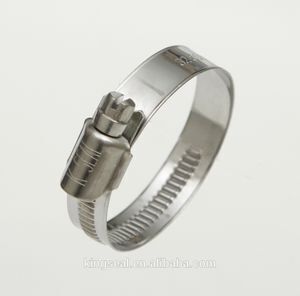

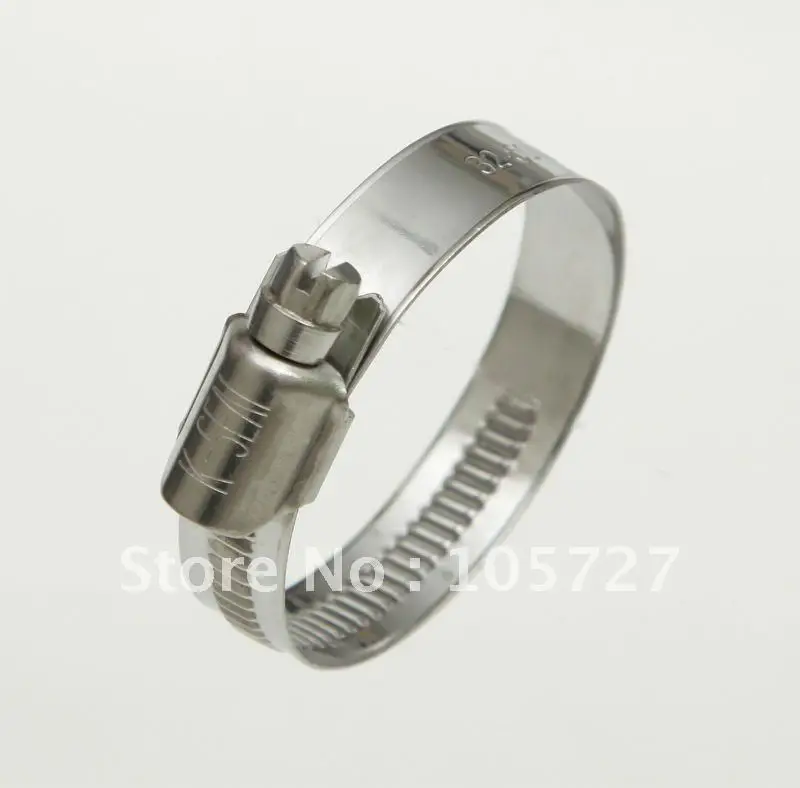

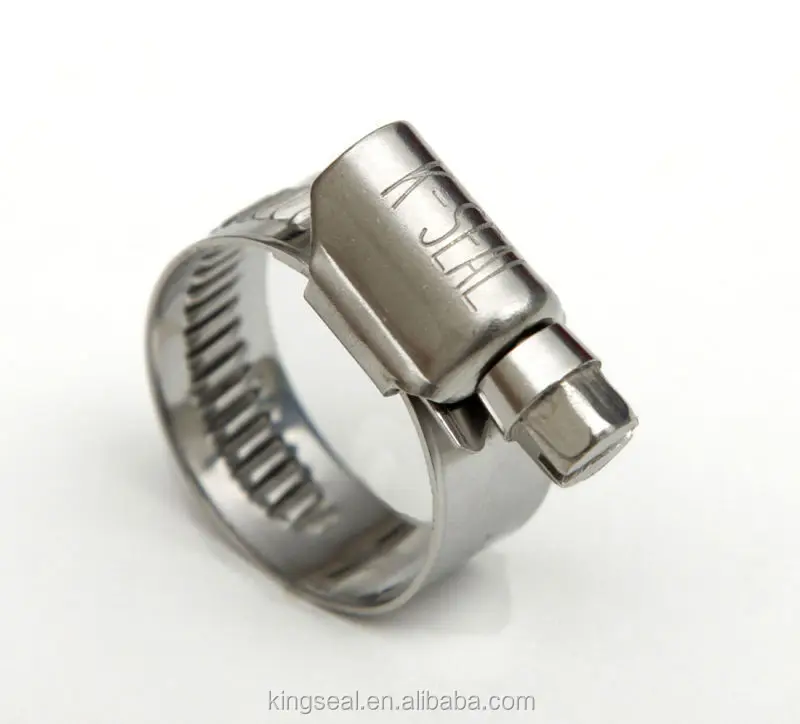

  Germany Type Stainless Steel zebra hose clamp

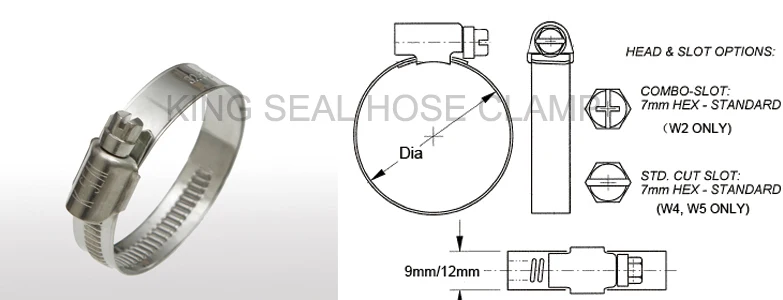

Product Information:
* Band width: 9mm or 12mm

* Screw size: 7mm hex head slotted

* Standard: DIN 3017 Type FE
* Material: stainless steel W2, W4, W5
* ISO9001:2008 Certified

   Germany Type Stainless Steel zebra hose clamp

Features:
* Spot weld free housing
* Rolled-up edges and non-perforated band that

   protects silicone and other soft hose surface
* Even distribution of clamping pressure
* Flexible adjusting screw for wide clamping range





Specifications&Sizes

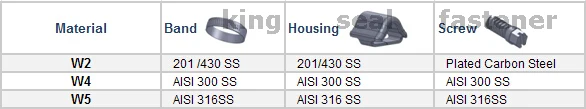

    Germany Type Stainless Steel zebra hose clamp



  W2 (430SS+plated carbon steel)

  W2 (201SS+plated carbon steel)

  W4 (AISI 301 SS)

  W4 (AISI 304 SS)

    W5 (AISI 316 SS)

Adjust range(mm)

 9mm bandwidth

KEB9X012M

KEB9X012A

KEBF9X012SS

KEBG9X012SS

KEBL9X012SS

8-12

KEB9X016M

KEB9X016A

KEBF9X016SS

KEBG9X016SS

KEBL9X016SS

10-16

KEB9X020M

KEB9X020A

KEBF9X020SS

KEBG9X020SS

KEBL9X020SS

12-20

KEB9X025M

KEB9X025A

KEBF9X025SS

KEBG9X025SS

KEBL9X025SS

16-25

KEB9X032M

KEB9X032A

KEBF9X032SS

KEBG9X032SS

KEBL9X032SS

20-32

KEB9X040M

KEB9X040A

KEBF9X040SS

KEBG9X040SS

KEBL9X040SS

25-40

KEB9X050M

KEB9X050A

KEBF9X050SS

KEBG9X050SS

KEBL9X050SS

32-50

KEB9X060M

KEB9X060A

KEBF9X060SS

KEBG9X060SS

KEBL9X060SS

40-60

KEB9X070M

KEB9X070A

KEBF9X070SS

KEBG9X070SS

KEBL9X070SS

50-70

KEB9X080M

KEB9X080A

KEBF9X080SS

KEBG9X080SS

KEBL9X080SS

60-80

KEB9X090M

KEB9X090A

KEBF9X090SS

KEBG9X090SS

KEBL9X090SS

70-90

KEB9X100M

KEB9X100A

KEBF9X100SS

KEBG9X100SS

KEBL9X100SS

80-100

KEB9X110M

KEB9X110A

KEBF9X110SS

KEBG9X110SS

KEBL9X110SS

90-110

KEB9X120M

KEB9X120A

KEBF9X120SS

KEBG9X120SS

KEBL9X120SS

100-120

KEB9X130M

KEB9X130A

KEBF9X130SS

KEBG9X130SS

KEBL9X130SS

110-130

KEB9X140M

KEB9X140A

KEBF9X140SS

KEBG9X140SS

KEBL9X140SS

120-140

KEB9X150M

KEB9X150A

KEBF9X150SS

KEBG9X150SS

KEBL9X150SS

130-150

KEB9X160M

KEB9X160A

KEBF9X160SS

KEBG9X160SS

KEBL9X160SS

140-160

xx

xx



xx

xx

xx

 12mm bandwidth

KEB12X025M

KEB12X025A

KEBF12X025SS

KEBG12X025SS

KEBL12X025SS

16-25

KEB12X032M

KEB12X032A

KEBF12X032SS

KEBG12X032SS

KEBL12X032SS

20-32

KEB12X040M

KEB12X040A

KEBF12X040SS

KEBG12X040SS

KEBL12X040SS

25-40

KEB12X050M

KEB12X050A

KEBF12X050SS

KEBG12X050SS

KEBL12X050SS

32-50

KEB12X060M

KEB12X060A

KEBF12X060SS

KEBG12X060SS

KEBL12X060SS

40-60

KEB12X070M

KEB12X070A

KEBF12X070SS

KEBG12X070SS

KEBL12X070SS

50-70

KEB12X080M

KEB12X080A

KEBF12X080SS

KEBG12X080SS

KEBL12X080SS

60-80

KEB12X090M

KEB12X090A

KEBF12X090SS

KEBG12X090SS

KEBL12X090SS

70-90

KEB12X100M

KEB12X100A

KEBF12X100SS

KEBG12X100SS

KEBL12X100SS

80-100

KEB12X110M

KEB12X110A

KEBF12X110SS

KEBG12X110SS

KEBL12X110SS

90-110

KEB12X120M

KEB12X120A

KEBF12X120SS

KEBG12X120SS

KEBL12X120SS

100-120

KEB12X130M

KEB12X130A

KEBF12X130SS

KEBG12X130SS

KEBL12X130SS

110-130

KEB12X140M

KEB12X140A

KEBF12X140SS

KEBG12X140SS

KEBL12X140SS

120-140

KEB12X150M

KEB12X150A

KEBF12X150SS

KEBG12X150SS

KEBL12X150SS

130-150

KEB12X160M

KEB12X160A

KEBF12X160SS

KEBG12X160SS

KEBL12X160SS

140-160

xx



xx



xx

xx

    Germany Type Stainless Steel zebra hose clamp

Product overview

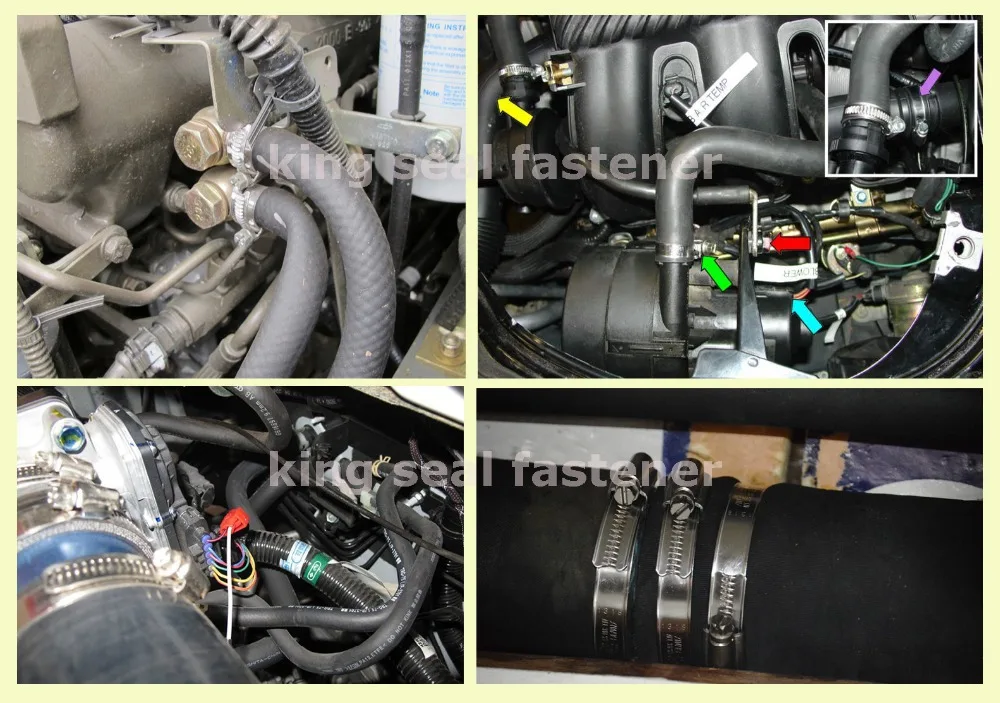

Application Show

Embossed worm drive clamps are commonly used in automotive, industrial, hydraulic, mining,marine and general hardware applications, especially for soft pipes and hoses.



   Germany Type Stainless Steel zebra hose clamp

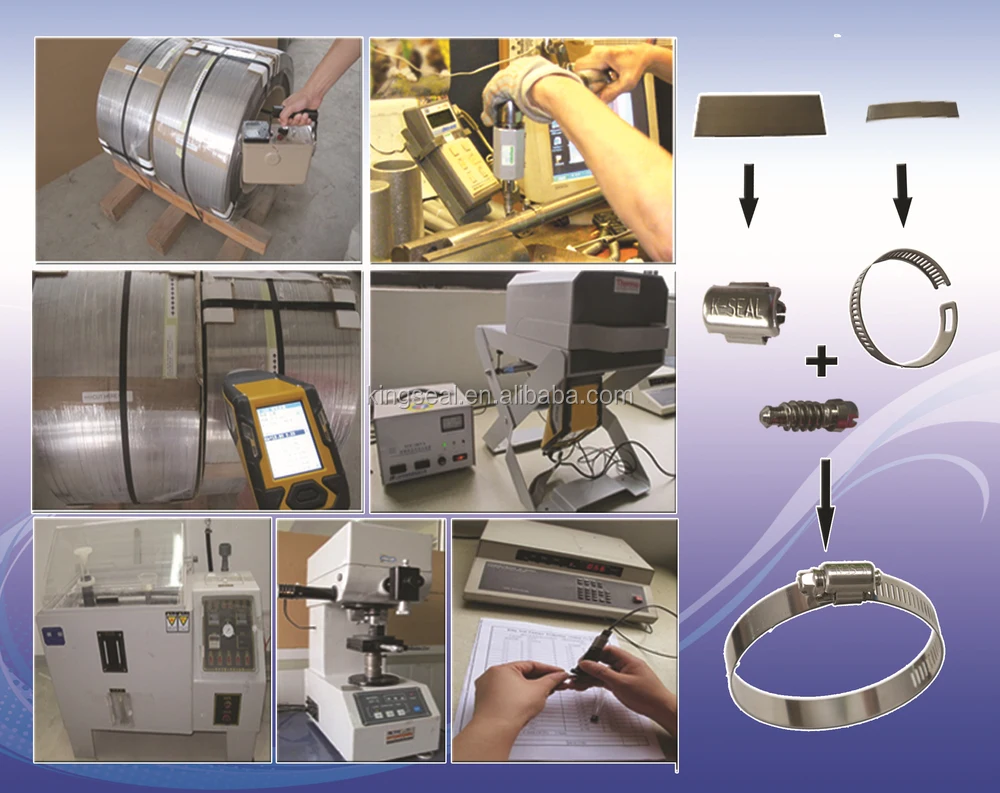

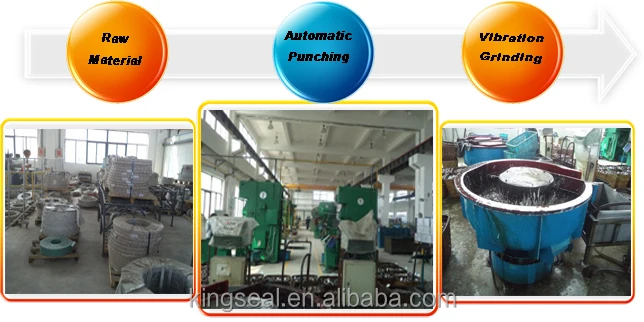

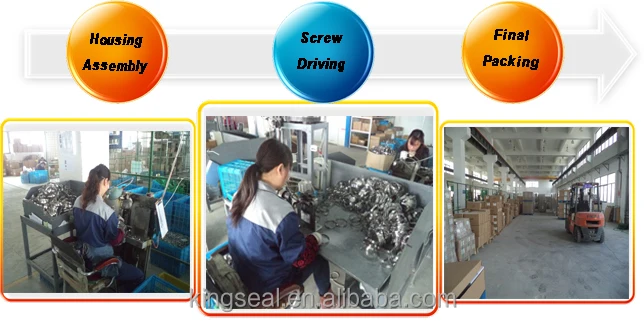

Production Flow



Test&Certificates

 Radiation Test,  Torsion Test,  Material Test,  Chemical components Test,  Salt Spary Test,  Band Load and Tension Test, Zinc-coating Thickness Test





   Germany Type Stainless Steel zebra hose clamp



Why Us

1. Background:

King Seal is a subsidiary company of Murray Corporation in US which is the most trusted name in Clamping solution industry for over 100 years in North America. We specialize in manufacturing various hose clamps, with rich experience and mature technology.

2. Tech&Equipment:

The core technics and some production equipments are from US with precise molding and stamping. Sharing the same production line with Murray brand products.

3. Quality Control:

  Strict quality inspection throughly covered raw material, production process, finish products, various tests are conducted to guarantee STABLE superior quality. Everyone in production line is capable of inspecting the process by themselves.

4. Customer Groups:

 Reliable and trusted supplier of American leading hose clamp brands and large chain stores for years.

5. Price&Quality:

Much more competitive price compared with other same quality hose clamp. We have the best quality in China, and superior quality worldwide.

6.  After-sales Service:

We have One-Year Quality Warranty. Bisides, we purchased Product Liability Insurance, to eliminate customers' concerns about quality issues.



stainless steel hose clamps



Factory overview



   Germany Type Stainless Steel zebra hose clamp

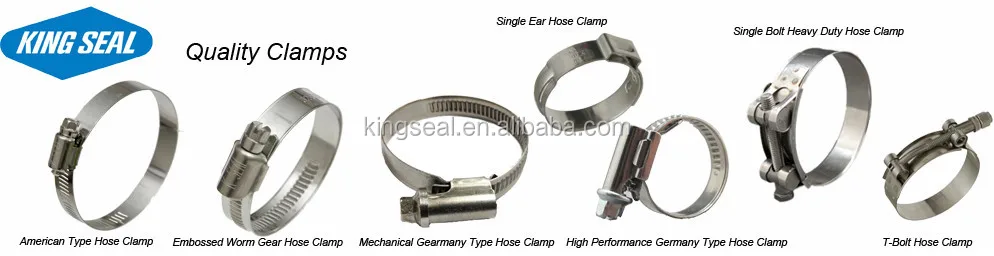

Related Products:



1)    Worm Drive Hose Clamp: Most commonly used general-purpose clamp. The bands have clean punched rectangular perforations that hold strong and connect easily. American hose clamps can be used in non-circular objects.



2)    Non-perforated Hose Clamp: We have Welding Hose Clamp, Mechanical Hose Clamp,and High Performance Hose Clamp. Based on our popular general purpose worm Drive clamps. The non-perforated band keeps soft silicone hoses from shearing or extruding during installation, and providing a more stable and secures connection.

3)    Single Bolt Heavy Duty Hose Clamp: Highly resistant multiple use clamps for high pressures and significant clamping forces. The clamps are provided with three welding points and raised edges to increase their security, often used for irrigation, drains, pumping sludge etc.



4)    Double Bolts Double Bands Hose Clamp: Suitable for applications with very powerful clamping requirements. The solid band is provided with raised edges. Often used in the transportation of pulverulent, concrete, sand and cement.



5)    T-Bolt Clamp: K-Seal T-Bolt clamps are designed to provide connections without leaks. Band edges are rounded to protect the hose. It’s manufactured to the highest quality standards. This high strength clamp is often used for industrial, marine and vehicle.



6)    Spring-loaded T-Bolt Hose Clamp: Designed to compensate for the expansion and contraction of hose caused by temperature and/or hose cold flow. Typical installations include silicone hoses on charge air cooling/air to air, after cooling systems, and primary engine coolant systems.



7)    Ear/Seamless/Pinch Clamps: Easy to install in narrow spaces with normal pliers and provide a uniform, tamper proof seal. They are widely used on both soft hose and rigid plastic pipe.



8)    Rubber Lined Retaining Hose Clamp: Ideal for vibration damping and insulation support - for wire, pipe & hose. The rubber profile is in EPDM material.



9)    Spring Hose Clamp/Clip: Self-compensating hose clamp. Expands/Contracts with hose in response to temperature shifts. Cannot be over/under tightened. Less time for assembly. Can be reused. Used in Cooling &Heating System, hydraulic etc.



10) Double Wire Hose Clamp/Clip: Providing for the clamping of annulated and polyethylene hoses in the area of maintenance, irrigation, ventilation etc.
