Profile Arch Roof Roll Forming Construction Machine
-
Supplier: Yingkou Longshun Machinery Manufacturing Co., Ltd. -
Region: Liaoning, China -
Contact: Ms Lisa Liang -
Price: $28000.00 /set -
Min. Order: 1 set
| Delivery Detail: | 25-30 days; | Rollermaterial: | 40 Cr; |
| Brand Name: | LongShun; | Model Number: | LSMBM-1; |
| Cutting balde material: | Cr12; | Supply Ability: | 20 Set/Sets per Year; |
| Packaging Detail: | 40 HQ*1; | Payment Terms: | L/C,T/T,Western Union; |
| Port: | DaLian; | Roller rows: | 14-15 rows; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | CE; |
| Place of Origin: | Liaoning China; | Working speed: | straight: 15m /min bending plate: 13m /min; |
| Total Weight: | 12T; | Suitable Material: | steel coil; |
| Coil thickness: | 0.8-1.5mm; | Total power: | 18.5KW; |
| Shaft material: | 45# steel, adjustable; |
Arch Roof Roll Forming Construction Machine
Why Do People Choose Arch Roof Steel Buildings?
Fast And Easy DIY Assembly
Durable Construction With Galvalume Steel
High Quality Grade
Affordable, Factory Direct Pricing
What Is The large span arch roof Machine Widely Used For?
1.Conventional Building Appearance
2.Ideal For Backyard Applications, Including Workshops Garages, And Equipment Storage
3.Economical And Easy Construct
We provide you all the relevant accessories for free, with which you can begin to do projects immediately.
Our machine is easy to assemble, strong, durable and can offer you dependable services
Machine Components:
arch roof sheet making machine
Working flow:
Decoiler --- Feeding --- Roll forming ---Cutting --- Curving --- Output table

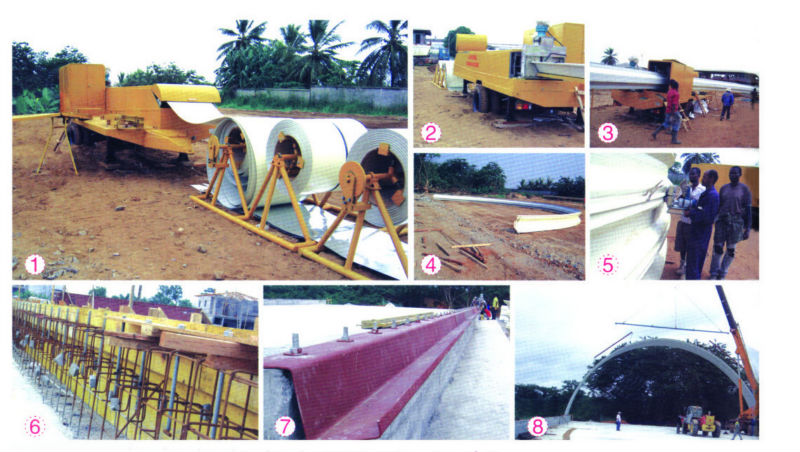

Large span arch roof Roll forming machine On sit production and installation of self supported curved roofing without any structure, enables faster and leak proof roofing system, thus ensuring utmost flexbility in work and design |
arch roof sheet making machine
Easy & Quick installation As the production is carried out on site, the installation will be very fast, take an example, 1500 square meters area in 12 hours, enabling to finish the project in very quick time. |
Arched roll forming machine Arch building machine
Arch roof sheet making machine
Tpyes:
| Type | Feeding width | Effective Width | Coil Thickness | Max span | Use ratio | The depth of the groove |
| LS-1250-800 | 1250mm | 800mm | 1.0-1.5 mm | ≤45m | 64% | 320mm HOT |
| LS-1000-800 | 1000mm | 800mm | 0.8-1.5 mm | ≤25m | 80% | 114mm HOT |
| LS-1000-750 | 1000mm | 750mm | 0.8-1.5 mm | ≤28m | 75% | 138mm HOT |
| LS-1000-700 | 1000mm | 700mm | 0.8-1.5 mm | ≤25m | 70% | 175mm |
| LS-1000-680 | 1000mm | 680mm | 0.8-1.5 mm | ≤36m | 68% | 223mm HOT |
| LS-1000-610 | 1000mm | 610mm | 0.8-1.5 mm | ≤45m | 61% | 243mm HOT |
| LS-1000-550 | 1000mm | 550mm | 0.8-1.5 mm | ≤45m | 55% | 187.5mm |
| LS-1000-400 | 1000mm | 400mm | 0.8-1.5 mm | ≤45m | 40% | 253mm |
| LS-914-750 | 914mm | 750mm | 0.8-1.5 mm | ≤20m | 82% | 86mm HOT |
| LS-914-700 | 914mm | 700mm | 0.8-1.5 mm | ≤25m | 76% | 123mm |
| LS-914-650 | 914mm | 650mm | 0.8-1.5 mm | ≤28m | 71% | 181mm |
| LS-914-610 | 914mm | 610mm | 0.8-1.5 mm | ≤40m | 66% | 203mm HOT |
| LS-914-400 | 914mm | 400mm | 0.8-1.5 mm | ≤45m | 43% | 210mm |
| LS-600-305 | 600mm | 305mm | 0.8-1.5 mm | ≤30m | 51% | 109mm |
Long span Arch roof forming machine
Our products can be made according to your requirement.
Excellent quality and reasonable price to provide.
We do quotation within 24 hours and welcome your any inquiry at anytime.
More detail pelease call or email to me directly,thank you.
My Skype ID : yingkoulslucas
My phone No.86 1834 0780 160
Warranty: 1 year and long-life maintenance
*Installation and debugging: We will send professional engineer to make installation and debugging, buyer provide accommodation, food and the round-trip ticket fee.
| Packing: | 40HQ. |
| Delivery terms: | 25- 30 days after receiving 30% deposit. |
| Payment terms: | T/T,30% depoisit, 70% before delivery |
Our company takes producing color steel forming equipment series as the central task. Our main production equipment contains arch roof sheet making machine , composite sandwich plate machine, C shape purlin machine, Z shape purlin machine, flat sheet corrugated, glazed tile roll forming machine, granary machine, bending machine, slitting machine and guard rail forming machine. We sell them around the world receiving the high praise from domestic and international customers.
Longshun people persist in pioneering and enterprising. We regard customers' needs as our driving force and attribute our success to customer approvals. What makes Longshun dominate the market is that we always provide customers with the best products. Welcome to visit our factory.
