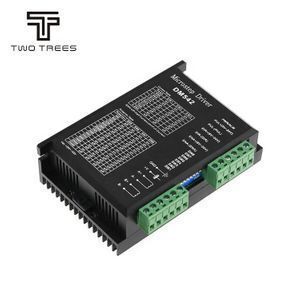

Laser equipment parts 2-phase 57 86 series Digital Stepper Motor Driver 18-48 VDC 4.2A cnc driver step motor dm542
- 7.77 >=2 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Place of Origin: | Guangdong China; | Size: | 11.7*8.5cm/4.61*3.35inch; |
| Brand Name: | Twotrees; | Model Number: | DM542-4.2A; |
| Product name: | DM542-4.2A stepper motor driver; | Single gross weight: | 0.278 KG; |
| Power supply: | DC 24-60 (V); | Output phase current: | 1.5A-4.5A; |
| Package Type: | Box packaging; | Single package size: | 18X12X8 cm; |
| Logic input current: | 10-20mA; | Selling Units: | Single item; |
| Operating temperature: | -15°-+45°; |
Welcome to TWOTREES
Product Description

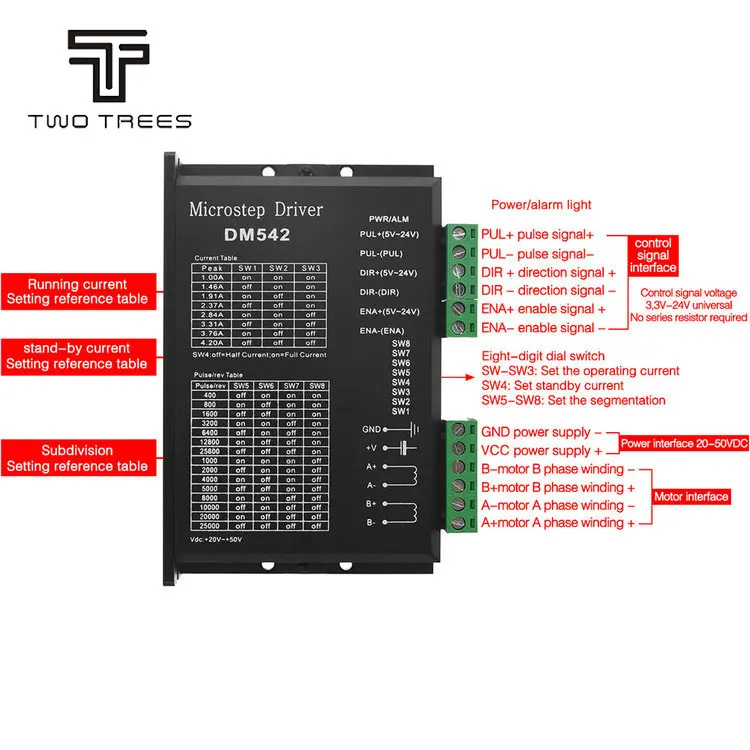

Laser equipment parts 2-phase 57 86 series Digital Stepper Motor Driver 18-48 VDC 4.2A cnc driver step motor dm542
The driver uses discrete components structure, as long as no over voltage and wiring is right, please rest assured that two-phase 4-wire, 6-wire, 8-wire can be used. 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
Feature:
20KHz chopping frequency
Optical isolation signal input

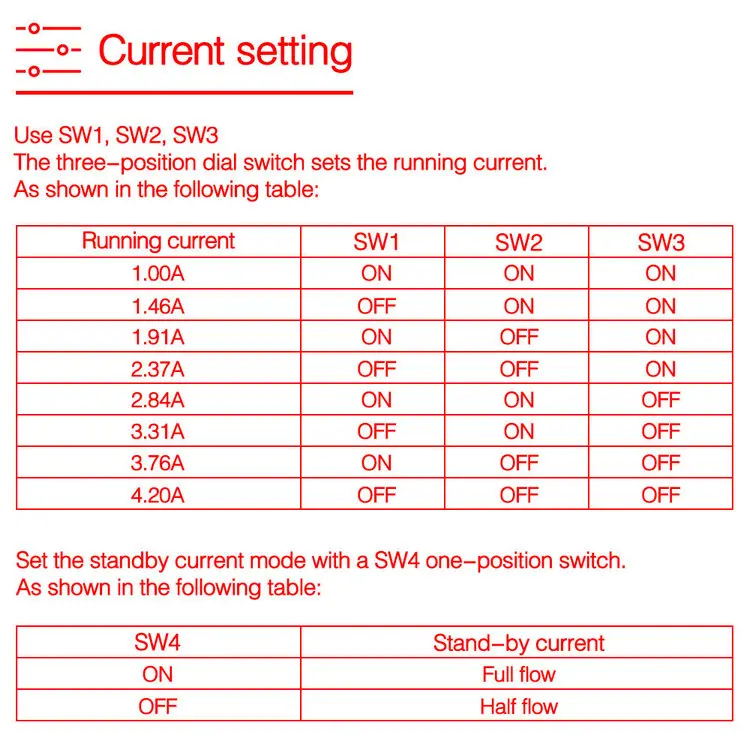

Output current DIP switch is adjustable
Bipolar constant current chopping method
High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200

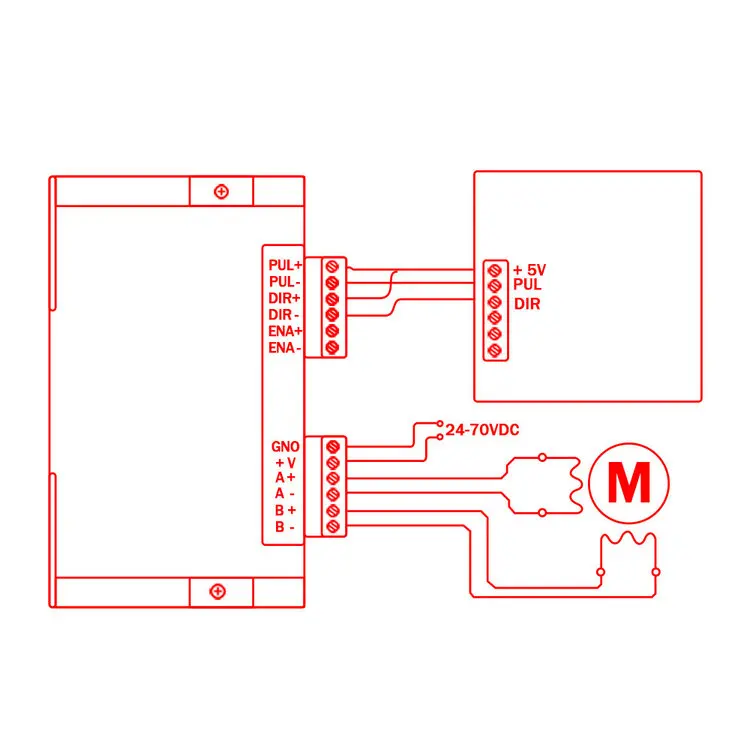

TTL input signal compatible,while accepting differential signal input
Specifications:
Power supply:DC 24-60 (V)
Output phase current:1.5A-4.5A
Logic input current:10-20mA
Operating temperature:-15°—+45°

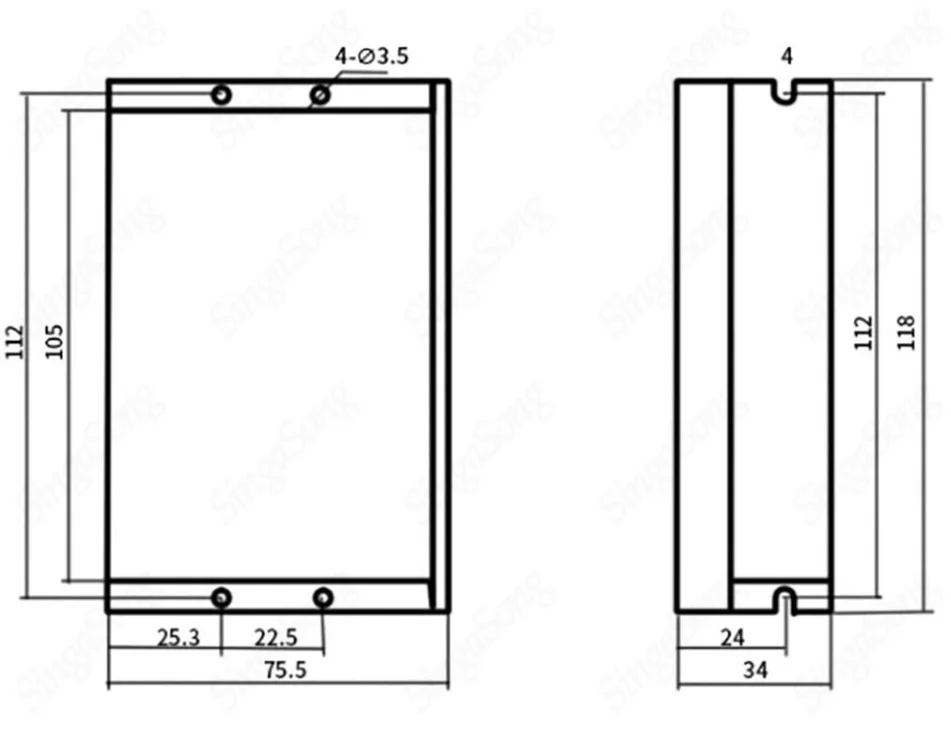

Size:11.7*8.5cm/4.61*3.35inch
