Digital portable metal rockwell hardness tester price HARTIP1800 with D&DL 2-in-1 probe

Product details
Place of Origin:Beijing China;Display:OLED;
Language:10 language;Payment Terms:T/T,Western Union;
Supply Ability:200 Piece/Pieces per Month;Name:HARTIP1800 HARDNESS TESTER;
Impact device:D/DL 2-in-1;Brand Name:SADT;
Model Number:HARTIP 1800 D/DL;Dimension (mm):148x44x22;
brand:SADT;Port:Any port in China;
Impact direction:Universal auto impact direction;MODEL:HARTIP1800 D&DL;
Packaging Detail:Product package: carrying case Delivery package: carton;Material:11 Common Metal Materials;
Accuracy:±2HL;
Specifications:

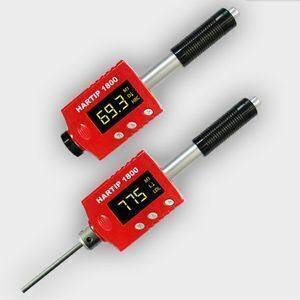

 Digital Hardness Tester Hartip1800D/DL
1.Two-in-one probe
2.Convert simply between probe D and probe DL only by changing impact body D and DL.
3.Economic

 HARTIP1800 pen type hardness tester is an advanced state-of-the-art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength. HARTIP 1800 has a memory capacity of 3000 data which can be download to computer via USB. The 3.7V Li-ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel.



HARTIP1800 D&DL is equipped with two-in-one probe. With unique two-in-one probe, HARTIP1800 D&DL can convert between probe D and probe DL simply by changing impact body. It’s more economic than buying them individually. It has the same configuration with HARTIP1800 except two-in-one probe.

  • Palm sized and easy operation
  • High contrast OLED display
  • Wide operating temperature:-40°C~+60°C
  • Auto switch on & off
  • It can recognize impact direction automatically
  • Duplex readings on display: HLD value and correspond scale
  • Large digits and more readings alternatively
  • Four display orientations
  • Vast memory capacity: 400K data can be saved
  • USB/RS232 interface
  • Micro-printer can be used on site
  • Recalibration allowed by user
  • Liner compensate for angle measurement
  • LI-ion rechargeable battery charged by USB port or mains power
  • Statics value calculated automatically
  • 10 language
Model

HARTIP 1800 D/DL Hardness teseter Durometer

Principle

Leeb hardness measurement

Accuracy

±0.3% @ HL=800 / ±2HL

Display

digital with high contrast LED

Display mode
                                            Normal or flip
Hardness scale

HL/HRC/HRB/HB/HV/HS/σb

Measruing range

HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm2

Impact device

D (Internal)
D/DL 2-in-1 (Internal, optional)

Materials

11 common metal materials

Memory

3,000 data

Statistics function

Average / Max. / Min. / value

Recalibration

Allowed by user

Interface
           USB for data transferring to PC and charging battery
Indicator

Low battery

Power on/off

Auto

Power supply
                              3.7v Li-ion rechargeable battery
Working environment

-40~+70°C

Standard
                            ASTM A956, DIN 50156, GB/T 17394-1998
Dimension (mm)

148x44x22

Net weight (g)

110



Company Information

Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers since 1995. Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, roughness tester, handheld metallurgical microscope, Concrete test hammer, gloss meter, Color difference meter, ultrasonic flaw detector and so on. Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.

We are ISO 9001 certified and most of our products have CE mark.
