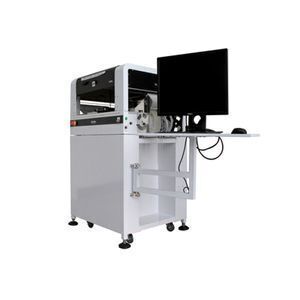

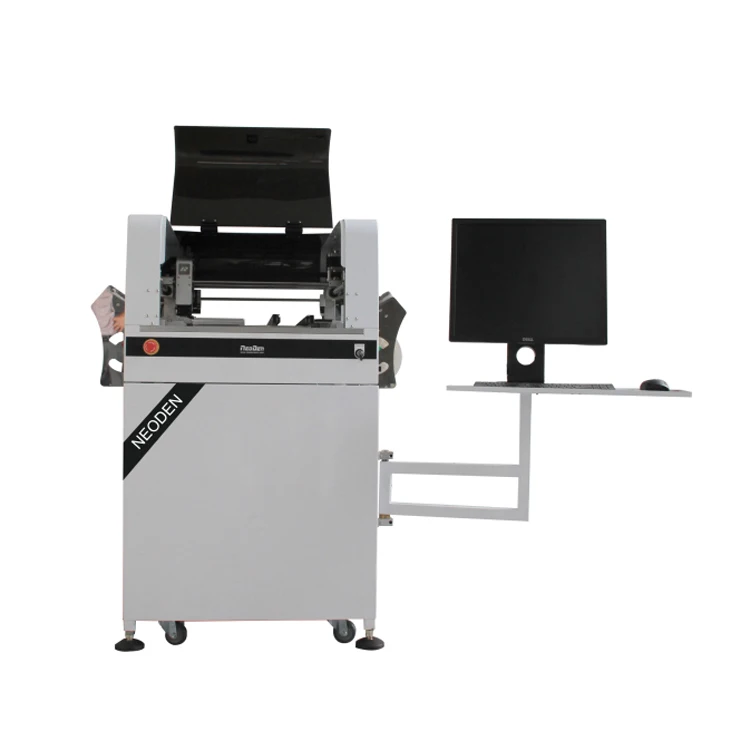

Smt desktop pick and place machine Neoden4 small automatic led pick and place machine 4 head pick and place robot

Supplier: Hangzhou Neoden Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Haimi Lin
Price: $7499.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model:	NeoDen4;	Brand Name:	NEODEN;
Smallest Component size:	0201;	Weight:	80KG;
Port:	All port within China mainland;	Resolution:	X/Y axis:0.01mm Z axis:0.1mm;
Function:	PCB prototype led assembly line;	Number of Heads:	4;
Tape width:	8mm,12mm,16mm,24mm;	Place of Origin:	Zhejiang China;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Applicable PCB area:	310mm*1500mm;
Packaging Detail:	nonfumigation wooden case,desktop pick and place machine,led smt machine,led production,pcb prototype;	Dimension(LWH):	876848CM;
Warranty:	2 Years;	Placement Rate:	10000PCS/H (vision off) 5000PCS/H (vision on);
Voltage:	220/110V;	Power(W):	180W;
Largest Component size:	TQFP240;	Applicable Industries:	Manufacturing Plant,Other,auto electronics industry,power industry;
Brand:	NeoDen;	Certification:	CE Certificate;
Supply Ability:	300 Set/Sets per Month;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;

First

Product Description

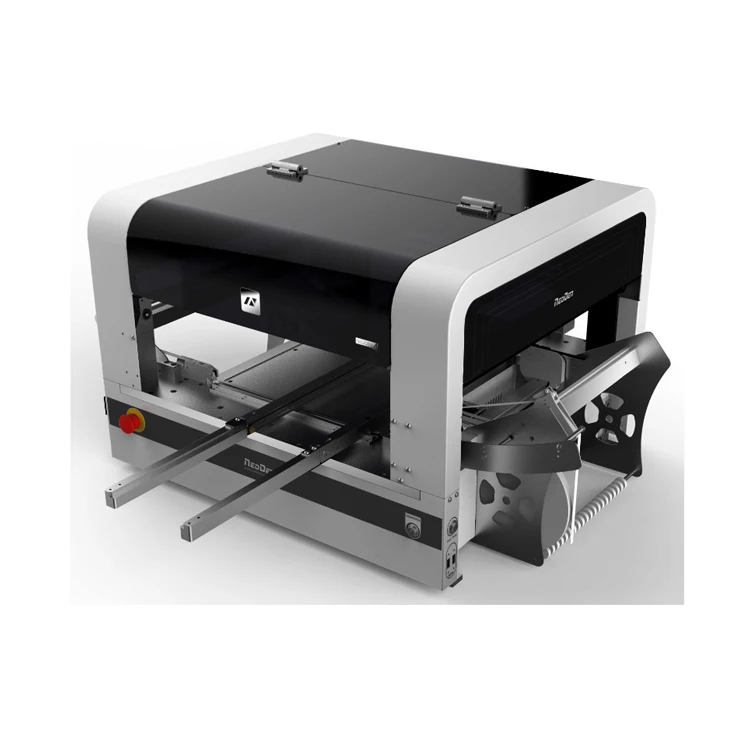

NeoDen4 is a flexible pick and place machine for all types of production
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.

Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..

Main Features

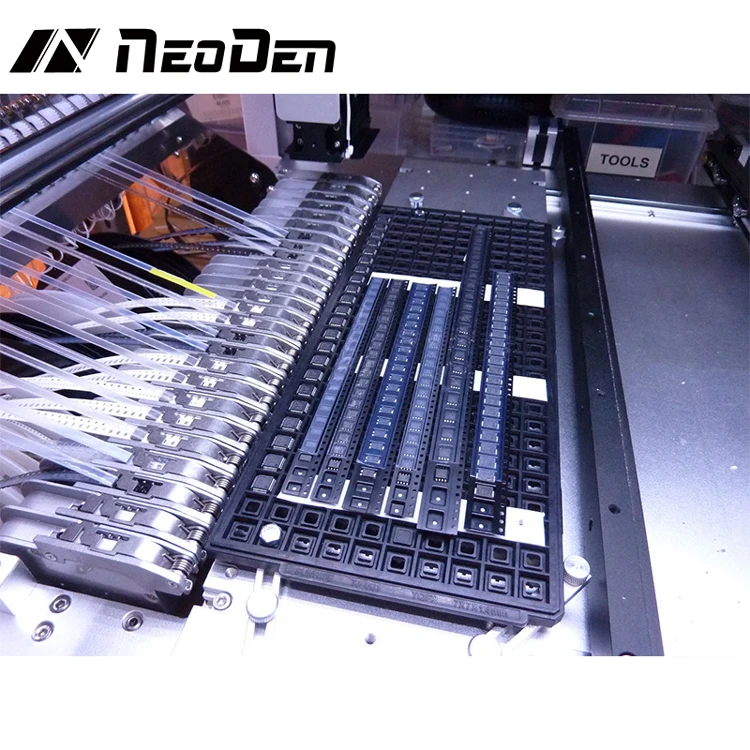

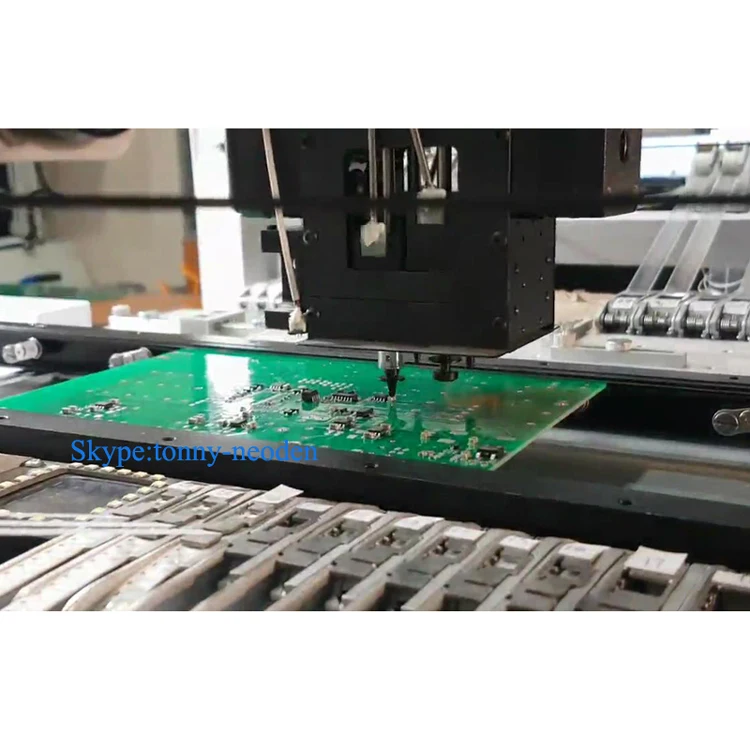

1. Dual vision system (up-looking and down-looking camers), identify and calibrate the different components at one
time, improves the accuracy of placement from 0201 to BGA;
2. Automatic electric feeders, reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you;
6.19in display contributes to easier and convenient operation.

Model	NeoDen4
Machine Style	Single gantry with 4 heads
Alignment	Stage Vision
Placement Rate	Vision on:5,000CPH
	Vision off:10,000CPH(Optimum)
Feeder Capacity	Tape feeder:48(all 8mm)
	Vibration feeder:5
	Tray feeder:45
Component Range	Smallest Size	0201
	Largest Size	32x32mm (Pitch 0.5mm)
	Max Height	5mm
Rotation	±180°
Placement Accuracy	± 0.02mm
X-Y Repeatability	±0.02mm
Board Dimension(mm)	Maximum	310 x 1,500mm
	Minimum	350 x 400mm(Option)
		140 x1,500mm(Option)
Main Control	GUI
Electricity Supply	110V/220V
Power	180W
Weight	85KG

Accessories

1 Vibration feeder *1
2 Nozzle *6
3 8G Flash Drive* 1
4 Power Cord(3m) *1
5 Rail extension parts *1
6 Double Sided Adhesive Tape *2
7 Allen wrench Set *5
8 Tool Box *1
9 Reel holder stand *1

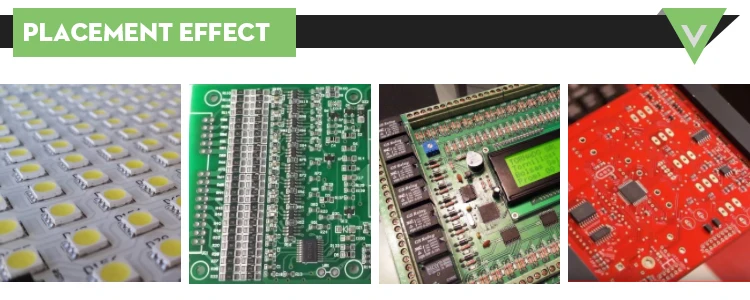

Placement effect
