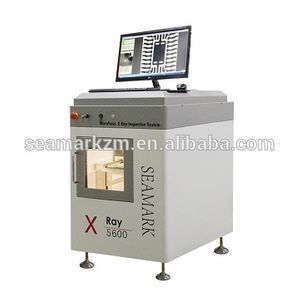

Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
-
Supplier: Shenzhen Zhuomao Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Noda Zhuomao -
Price: $43800.00 /unit -
Min. Order: 1 unit
| Supply Ability: | 100 Unit/Units per Week x5600 xray machine; | Application 1: | SMT BGA Soldering X-Ray Inspection; |
| Packaging Detail: | xray machine Standard Wooden Package for x ray machine price; | Place of Origin: | Guangdong China; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Image Receptor: | 9 million pixels, 72lp/cm; |
| Weight: | 1400KG; | Voltage: | 30 - 90 kV; |
| X-Ray Tube Type: | Close X-Ray Tube 90KV 4um; | Brand Name: | Seamarkzm/zhuomao; |
| Model Number: | x-ray machine X-5600; | Power: | 8W; |
| Port: | shenzhen; | Size: | 1450 X 1600 X 1670mm; |
| Application: | PCBA PCB X Ray inspection; | Name: | PCB xray inspection equipment machine; |
| Warranty: | One Year Warranty; |
More details ,welcome to contact us.
Angela Luo
whatsapp/Tel/Wechat : 0086 150 135 11044
skype:bgajuan
Email:luoxiaojuan(@)zhuomao.com.cn
\
Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
1, Main Features:
- Closed Tube From HAMAMATSU Japan.
- Imported Detector from Korea Rayence.
- Fully integrated, 130 kV high power closed X-ray tube
- Micro-focus
- Spot size down to 5µ
- 5″ x 5″ or 4″ x 3″ high resolution and ultra resolution CMOS digital flat pane imagel detectors
- 60° camera tilt for oblique angle viewing
- 22″ x 18″ Inspection Stage with 350° Rotation
- Color mapping camera with zoom window provides easy location and identification of faults
- Z axis movement of the x-ray tube and detector
- Computer controlled kV and mA settings
- Computer controlled variable speed X-Y stage (and rotate)
- Simple point and click, intuitive GUI provides access to create advanced inspection routines
- All s/w tools standard including (but not limited to)
- BGA Void detection and automatic calculations
- Mobile Flex Cable FPC x-ray inspection
- SMT Mounting and PCB X-ray inspection
- Easy macro recording for intuitive step and repeat programming
- Various measuring tools for TH, radius, area, perimeter, etc
- Industrial PC with Windows 7 PRO, 23″ LCD flat panel display
| X-Ray Tube |
| Tube Stylexray machine | Closed Type | |
| Tube Voltagexray machine | 90-130kV | |
| Tube Currentxray machine | 0.32mA | |
| Focal Spot Sizexray machine | 5 Micron | |
| Tube Coolingxray machine | Forced Air | |
| Geometric Magnificationxray machine | 250X | |
| System Magnificationxray machine | 1000X | |
| Digital Flat Panel Detector |
| Detector Size | 5″ x 5″ high resolution | 4″ x 3″ ultra resolution |
| Grayscale | 14-bit (16,384 shades of grayscale) | 14-bit (16,384 shades of grayscale) |
| Speed | 30 FPSxray machine | 10 FPSxray machine |
| Resolution | 100 µmxray machine | 50 µmxray machine |
| X-Ray Cabinet |
| Dimension | 1450mm (L) x 1600mm (W) x 1670mm (H) / 59″(L) x 62.9″ (W) x 62.9″(H) | |
| Sample Table Size | 560mm x 457mm / 22″ x 18″ | |
| Inspection area | 360mm x 290mm / 14.2” x 11.6” | |
| Weight | 1600 kg / 3527 lbs. - Steel – Lead – Welded construction | |
| Power |
| Automatic switching power supply | AC 110-230VAC, 50/60Hz (Universal) | |
3, Principle Diagram
4, Detail Presetation
5, Application
6. XRAY inspection machine Video:
https://youtu.be/F5-MAH18gDQ
https://youtu.be/UbTrbgmvnY8
https://www.youtube.com/watch?v=WYH5B_jOBV0
7. Other XRAY machine :
Nearly every day some customers from home and abroad come to visit our factory, we arrange the technician to show the PCB X-ray machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
1.We are 15 years Manufacturer = Own factory+ R&D team+Sheet metal production team + strong assemble team + packaging+free training service;
2. Logo/Brand:Customers' designs and logos are welcome,we can silk-print your own logo
3. Huawei,Samsung,Lenovo,Ericsson,Foxconn, Flextronics,Nvidia ,Delta,Honeywell,Leyard,Dajiang’s vendor with high reputation
4.Agent in USA,Brazil,Argentina,Turkey,Iran,India,South Asia, Mid-East and European countries;
5. 100% NEW products;
6. Over 20 R&D engineers, with 15 years experience;
7. Over 100,000 Global Users;
8. All models are approved by CE ISO9001;
9. 100% QC inspect before shipment;
10.High quality & competitive price&long life after-sales service.
Now we have joined Alibaba Trade Assurance program. It can guarantee the buyer profit(Refund the money)if the contract has not been fulfilled.
Welcome to order through Alibaba online order system!
If you do not know how to place order, do not worry!
Send INQUIRY or CHAT with us, I will try my best to help you!
1. How about the package ? Is it safe during the delivery ?
All PCB X-ray machine is packed by standard strong wooden carton.
It is safe when shipping.
Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
4, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
5. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
Zhuomao factory xray machine price x5600 optical digital SMD PCB BGA IC x-ray inspection machine
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
More details ,welcome to contact us.
Angela Luo
whatsapp/Tel/Wechat : 0086 150 135 11044
skype:bgajuan
Email:luoxiaojuan(@)zhuomao.com.cn
-
