High quality automatic aoi system equipment

Supplier: Kunshan Myzy Fixture Technology Co., Ltd.
Region: Jiangsu, China
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	MYZY;	Packaging Detail:	Wooden boxes/cartons/pallets;
Payment Terms:	T/T;	Place of Origin:	Jiangsu China;
Type:	3D Measurement System;	Product name:	High quality automatic aoi system equipment;
Supply Ability:	10 Set/Sets per Month aoi equipment;	Feature:	The measurement system was designed based on ATOS 3D Imaging System.;
Port:	Shanghai;	Key words:	aoi;
Application:	Machining Parts, Injection Molding Parts, Sheet Metal Parts;	OEM:	Accepted;
Model Number:	AOI - 3D Measurement System;

Product Description

Product Name	AOI - 3D Measurement System
Type	3D Measurement System
Power	Electronic
Application	Machining Parts, Injection Molding Parts, Sheet Metal Parts and irregular parts
Feature	The measurement system was designed based on ATOS 3D Imaging System
OEM	Accepted
Size	Customized

Send an inquiry, you will get more information and the latest price.

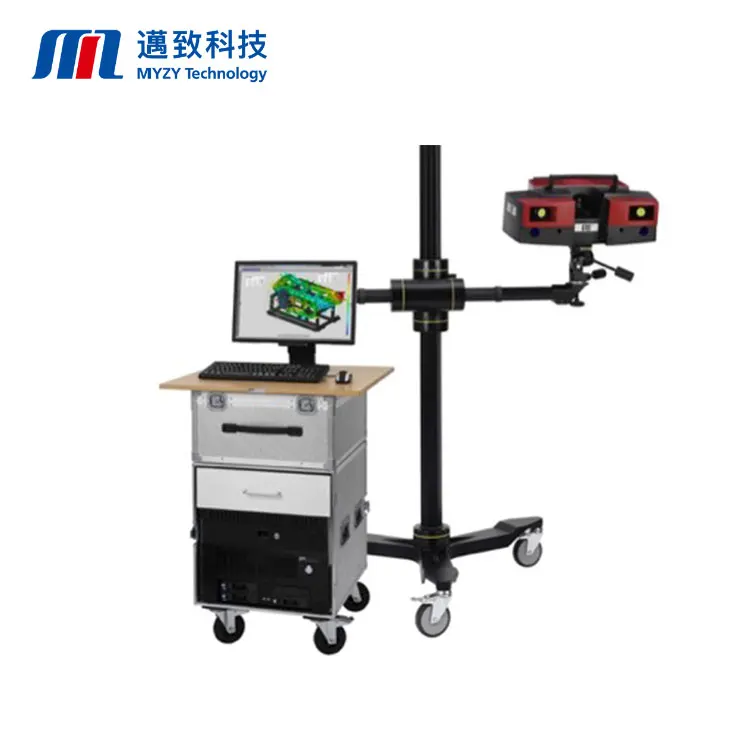

Detailed Images

Feature

1.The measurement system was designed based on ATOS 3D Imaging System. However,after redeveloped and rescontructed based on DUT 3D modelling, the overall dimensions can be measured rapidly, like Length, Width, Height, diameter, distance, thickness, radians, flatness, surface profile, depth of step and etc.
2.However, the tinny dimensions of surface profile, internal chamfer, internal surface profile and etc also can be measured.
3.Working Flow: Scanning -> Create 3D Model -> Measure -> Generate Output Report

Applications

Application:
