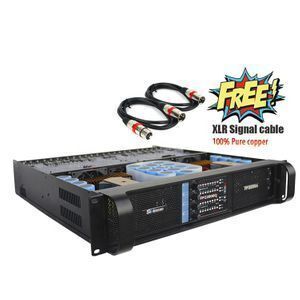

10000 watt power amplifier 4 channels class td professional power amplifier

Supplier: Guangzhou Xinbaosheng Audio Equipment Company Limited
Region: Guangdong, China
Contact: Ms Hong Lee
Price: $790.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Certificate:	CE , ROHS;	Type:	Professional Amplifier;
Channels:	4;	Application:	church amplifier;
Warranty:	3 year;	Brand Name:	Sinbosen;
Channel:	4 channel power amplifier;	Model Number:	FP-22000Q;
Power:	4x2500w 8 ohms;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Trade Assurance,Paypal,Ali express etc.;
Packaging Detail:	strong carton packing: white carton/brown carton 10000 watt Professional audio power amplifier;	RACK:	2u power amplifier;
Supply Ability:	2000 Unit/Units per Month;	Port:	Guangzhou;
Place of Origin:	Guangdong China;	Voltage:	100v amplifier / 220v professional power amplifier;
Type:	Professional audio;	Function:	Switching Power Amplifier;
Color:	Black;

10000 watt power amplifier 4 channels class td professional power amplifier

Specification

4 Channel Class TD Switching power amplifier
4 x 4,650 Watts into 4 Ohms, 4 x 2,500 Watts into 8 Ohms
Create SUPER sound quality, good for dual 18”/21” subwoofer
Separately controllable on Gain
Scalable Voltage Peak Limiter (VPL)
The bridge-mode operation for Touring Applications
Comprehensive protection scheme

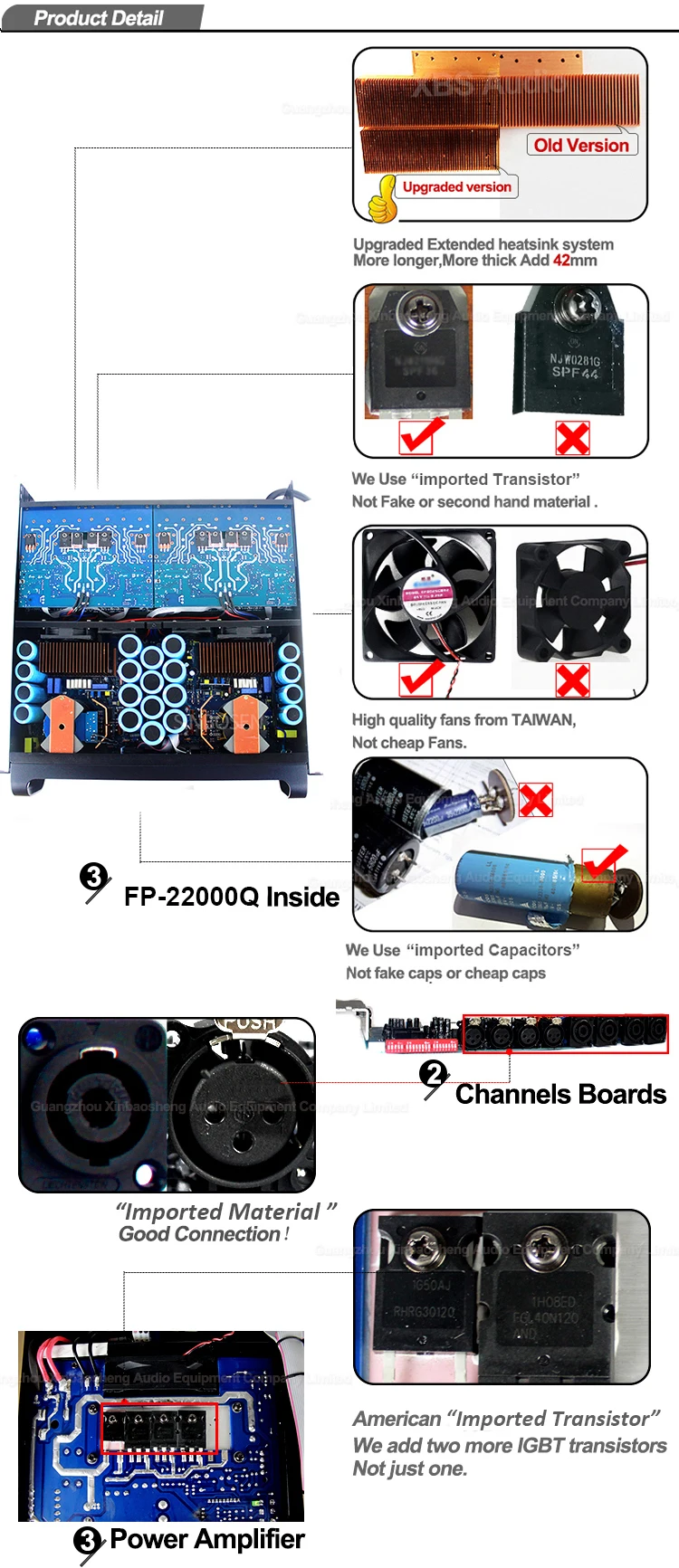

High-quality material:
Use Original high-quality capacitor 3600uf 200V
Use Original type PNP power output transistor 15024G/15025G
XLR*/Speakon connectors
Extended heatsink board to 94 mm

Must know before buying:

Full-range speaker [line array speaker, professional speaker], the power of the power amplifier should be greater than 1.5 times or more;
Subwoofer speakers, the power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than the full frequency speaker!

DS SERIES Amplifier
	DS-7K	DS-9K	DS-14K	DS-6Q	DS-10Q	DS-20Q	FP-22000Q
8 ohm Stereo Power(RMS)	1500WX2	1800WX2	2400WX2	700WX4	1350WX4	2200WX4	2500WX4
4 ohm Stereo Power(RMS)	2800WX2	3000WX2	4400WX2	1300WX4	2100WX4	4000WX4	4650WX4
8 ohm Bridged Power(RMS)	5600W	6000W	8800W	2500WX2	4200WX2	8000WX2	9500WX2
4 ohm Bridged Power(RMS)	7000W	9000W	14000W	3000WX2	5000WX2	9000WX2	23750WX2
