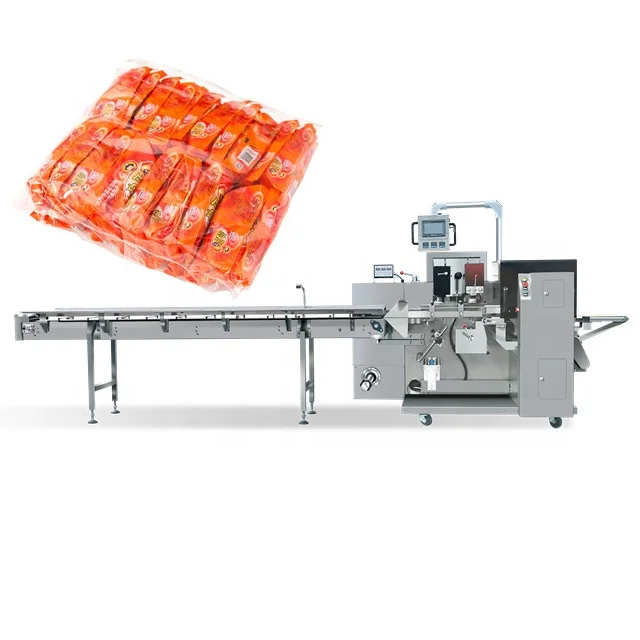

Bread Automatic Horizontal Packing Machine

Click here to contact
Product details
Application:Commodity;Warranty:12 Months;
Packaging Material:Plastic;Port:Qingdao, Any seaport in China;
Function:No product No pack;Voltage:220V/50HZ;
Control system:PLC + Three Servo + English Touch Screen;Dimension(L*W*H):4500*1050*1700;
Packing material:Laminated Film;Material:304 Stainless Steel;
Certification:CE Certificate;Sealing type:Back Sealing / 3 Side Sealing;
Brand Name:BOSTAR;Power:3.6kw;
Weight:1000kg;Place of Origin:Shandong China;
Automatic Grade:Automatic;Packaging Detail:Standard Export Wooden Case Packing;
Condition:New;After-sales Service Provided:Engineers available to service machinery overseas;
Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;Name:horizontal packing machine;
Product name:Bread Automatic Horizontal Packing Machine;Driven Type:Electric;
Packing speed:20-180packs/minute;Supply Ability:100 Set/Sets per Month;
Packaging Type:Film;Type:Other;
Optional Device:Auto Splicer;
Product Description

Please Attention:
----------------------------------------------
BOSTAR WILL OFFER YOU:

* FACTORY DIRECT PRICE.
* NICE QUALITY.
* PRODUCE THE HORIZONTAL PACKING MACHINE ACCORDING TO YOUR PRODUCT FEATURES
* QUICK SHIPPING.
* NO MOQ , 1SET OK .
* AFTER SALES SERVICES 24 HOURS, 7 DAYS ONE WEEK

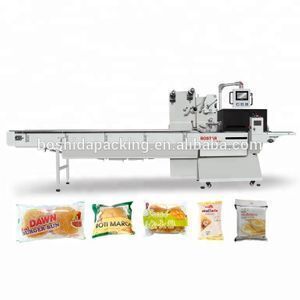

Bread Automatic Horizontal Packing Machine

Product Application of Bread Automatic Horizontal Packing Machine

* Horizontal Packing Machine Specially designed for Bakery Products with Gas Flushing.
* One piece in one bag or two pieces in one bag.

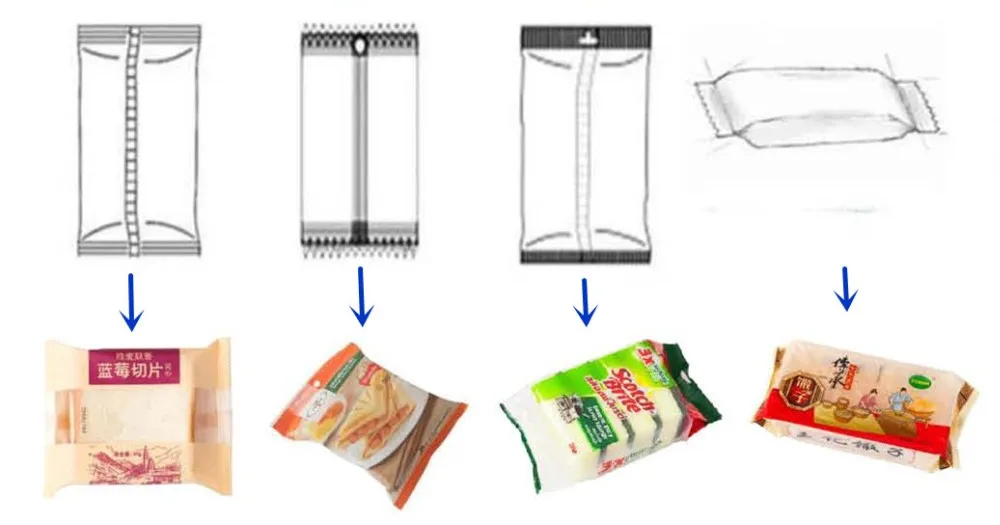

BAG TYPE OF HORIZONTAL PACKING MACHINE

     Form 1 (Standard)      Form 2 (optional)    Form 3 (optional)    Form 4 (optional)
     Pillow Bag                 Pillow bag with       Pillow bag with       Pillow type
                                      Hole punch            Euro slot                 Gusset bag

TECHNICAL PARAMETER

Note:
We have different models for horizontal packing machine.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Product Size (Length*Width*Height) details required.

Horizontal Packing Machine Model
BOSS450/99-S
BOSS450/120-S
BOSS450/132-S
BOSS450/150-S
Packing film size (mm)
Max450
Max450
Max450
Max450
Packing speed (packs/min)
20-180
20-180
20-160
20-160
Package length (mm)
80-340
90-370
95-450
100-450
Product width (mm)
20-140
20-140
20-140
20-140
Product height (mm)
5-40
5-60
35-70
35-75
Power (kw)
3.6
3.6
3.6
3.6
Dimension L*W*H (mm)
4500*1050*1700
4500*1050*1700
4500*1050*1700
4500*1050*1700
Wight (Kg)
1000
1000
1000
1000
Power supply
220V 50HZ
220V 50HZ
220V 50HZ
220V 50HZ

Main Features of Bread Automatic Horizontal Packing Machine


* Max. Output/ speed: 20 ~ 160 packs/min (Depending on bag length, product character , packing material, manual putting speed)

* Machine body covered by stainless steel SUS304.

* Three Panasonic servo motors. One is controlled the center sealer and film; the other one is controlled the end sealer; the third one is controlled infeeder.

* No product no pack. If there's no product on machine infeeder, the film and end sealing will stop, waiting for the product coming.

* One set of rotary end sealing jaw (with straight or zig-zag cutter and cycle stop at open position function)

Optional: two sets of rotary end sealing jaws, three sets of rotary end sealing jaws.

* Adjustable end sealing, can adjust according to the products height.

* 2 sets of auto centering reel holder for quick film change over.

* 2 sets of center sealing wheels. One is driving the film and the other one is heating and sealing.

* Gas Flushing System. After nitrogen filling, the bread will be fresher and the storage will be longer.

* Panasonic PLC Program Controller.

* PID Control Temperature, making the seal at a low temperature to raise the packing speed and reduce the film burning.

* High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.

* 7' colorful touch screen with 10 kinds of product packing data memories for easy data setting and change over.

* Display the packaging speed and length automatically, insuring cut-off accuracy

* 360` Cantilevered touch screen.

* Adjustable bag former.


* Safety Cover with Tilted No: ZL201620122680.9.

* CE Certification. Adopted multiple security protective measures to ensure the safety production.

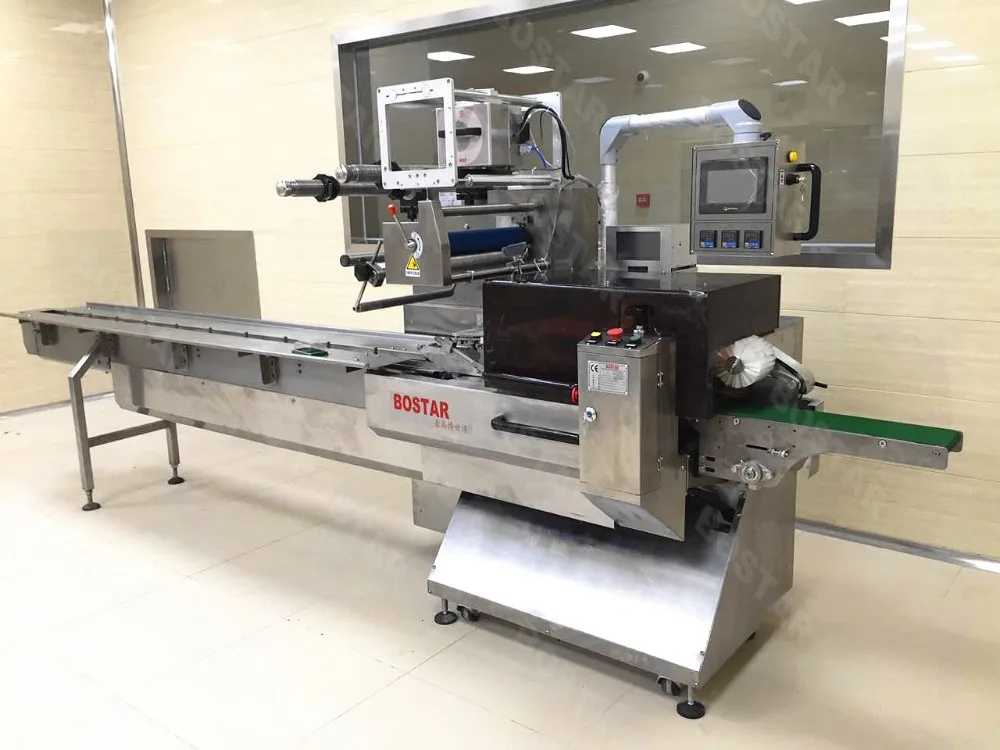

Detailed Images

Full SUS304

2 Sets Auto Centering Film Holder

Machine body covered by stainless steel 304, feed by manually or automatically



2 sets of auto centering reel holder for quick film change over.

Three Panasonic Servo Motor and Driver

Panasonic PLC Program Controller

* One is controlled the center sealer and film
* The other one is controlled the end sealer
* The third one is controlled infeeder.



PLC controlled can realize the functions of keeping and extracting packing data and produce different products easily and quickly.


No Product No Pack

Sensor for No Product No Pack

If there's no product on machine infeeder, the film and end sealing will stop, waiting for the product coming.




360` Cantilevered touch screen

Photoelectric Eye Color Tracking

* 7' colorful touch screen with 10 kinds of product packing data memories for easy data setting and change over.
* Display the packaging speed and length automatically, insuring cut-off accuracy.



High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.


End Sealing Jaws

Safety Cover

* One set of rotary end sealing jaw (with straight or zig-zag cutter and cycle stop at open position function).
* Adjustable end sealing, can adjust according to the products height.


* Safety Cover with Tilted No: ZL201620122680.9.
* Easy to open and close, easy to operation and maintain the horizontal packing machine.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

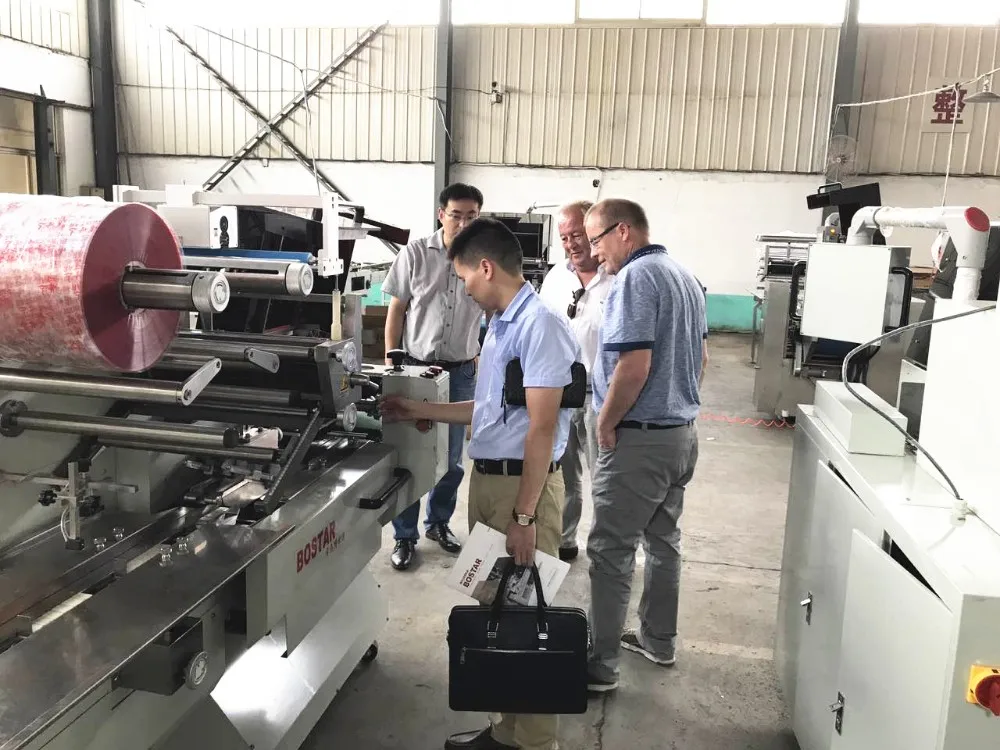

* Visiting our Factory.

Machine Testing Before Delievery

* Testing and running before machines delievery to make sure all parts and function are perfect.

After-Sales Service for Horizontal Packing Machine

* Training how to instal the horizontal packing machine, training how to use the horizontal packing machine.
* Engineers available to service horizontal packing machine overseas.

* Manules of horizontal packing machine installation, adjusting, setting, maintenance are available.
* Any problems of horizontal packing machine can Call or Online face to face communication available 24 hours.
* BOSTAR engineers & technician are available send to your factory for horizontal packing machine services if you agree pay the expenditure.
* One year warranty for horizontal packing machine, two years warranty for electrical part.
   During the warranty year if any of the parts broken not by man-made.
   We will free charge to replace the new one to you.
   The warranty will begin after the horizontal packing machine send out when we received the B/L.
* BOSTAR has an independent team for after-sale service. Any emermancy pleas call the salesman or       our after-sale's manager.

Our Company
World-Wide Customer

About BOSTAR:

* We have our own factory to manufacture the automatic horizontal packing machine
* We have our own spare center to produce the automatic horizontal packing machine spare parts, to guarantee the quality
* Our boss and engineers occupy themselves in researching and developing of automatic horizontal packing machine for 20 years.
* We have independent international management team.
* We had the honor to serve many automatic horizontal packing machine of world wide companies allover the world.
* Passed CE certification, 2008 quality system.

WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS. WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTREPRISE".

WELCOME TO CONTACT US.

"with us your MONEY in safe ; your BUSINESS in safe"
Certifications
Packing & Delivery

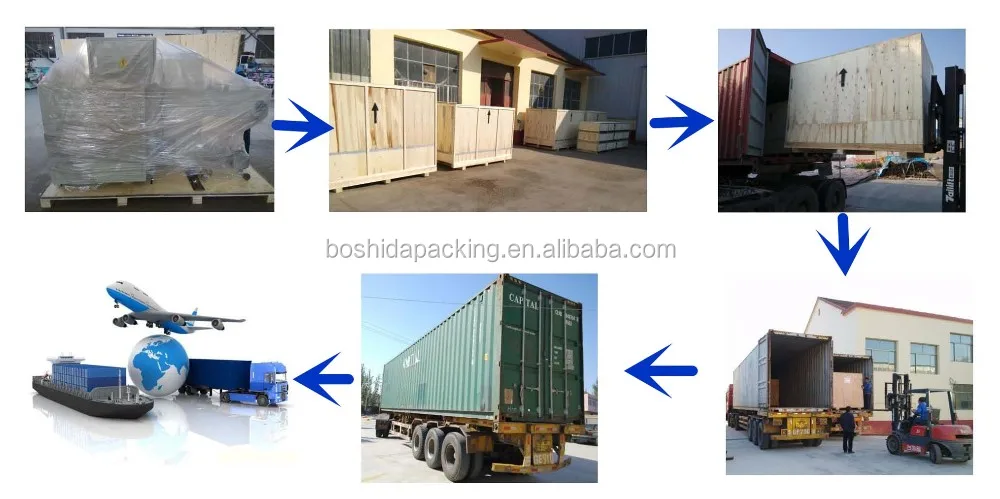

Packaging & Shipping for Bread Automatic Horizontal Packing Machine

* Standard Export Wooden Case Packing

* Upon receipt of payment , delivery date will be within 7-15 days.

* Shipment cost will depend on the destination, shipment way and the weight of the goods.

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate


Why Choose us?

We are professionally at manufacturing Bread Automatic Horizontal Packing Machine and Bread Automatic Horizontal Packing Line, in order to reduce labor costs.
Why you can rely on us for quality automatic horizontal packing machine? We have following qualifications:

* Passed CE certification, 2008 quality system.

* Quality guarantee. We adopt the high quality materials and import electric parts.
For example, Japanese Panasonic servo motor, Japanese Panasonic PLC, Japanese Panasonic Servo driver, Switzer ABB Switch button and indicator light, Demark Danfoss Transducer and so on.

* Abundant experience serving overseas upscale market, such as Malaysia, Thailand, Indonesia, Vietnam, Philippines, Uzbekistan, Kyrgyzstan, India, Hungary, Mauritius, Middle East, America, Bangladesh, Kenya, New Zealand and Egypt etc.

* Abundant technoloy experience of automatic horizontal packing machine.
Our boss and engineers occupy themselves in researching and developing of automatic horizontal packing machine for 20 years.

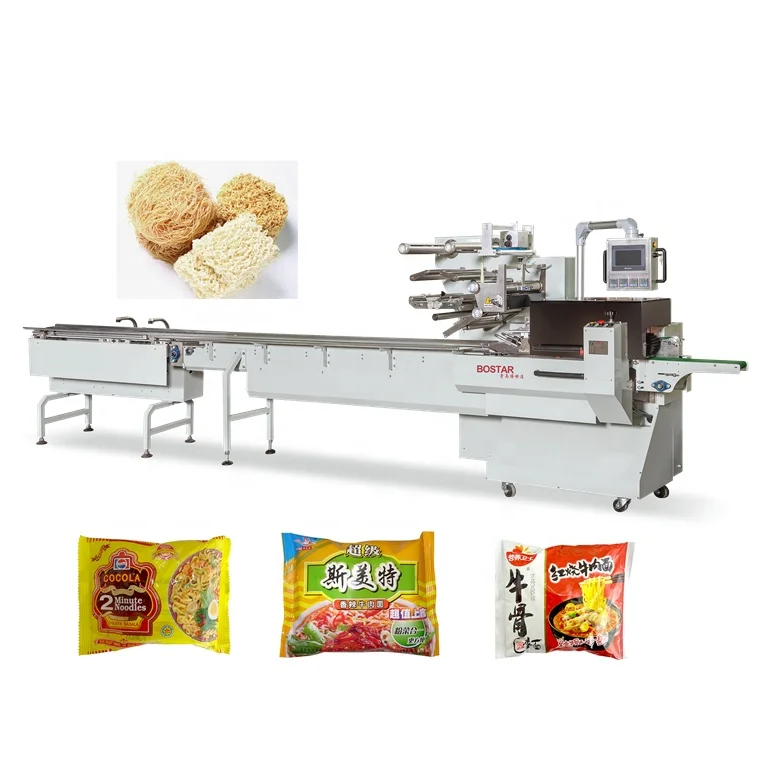

* We have different kinds type of automatic horizontal packing machine for packing bakery products, instant noodles, frozen food, seafood, medical, daily necessities etc.

* We have our own Research & Development department. We development and improve the BOS series fully automatic horizontal packing machine, shrink packing machine, auto-feeder, nitrogen flushing system, auto-splicer, No Product No Pack, tray free horizontal packing machine and so on.

* We will do our best to offer you high quality automatic horizontal packing machine and best service.
