Original Industrial Printing Thermal Label Dpi Printers With Led Display

  • Supplier: Anvento Co., Ltd
  • Region: Guangdong, China
  • Contact: Ms Christopher Chen
  • Price: $478.00 /unit
  • Min. Order: 1 unit
Product details
Black Print Speed:Up to 6 ips;Interface Type:USB/RS232/Centronics/Internal Ethernet;
Style:Black And White;Place of Origin:Tianjin China;
Max. Resolution:203dpi;Color Print Speed:Noll;
Use:Barcode Printer;Products Status:Stock;
Max Paper Size:Width:4.09",Length:90";Package Type:Carton;
Model Number:ME240;Selling Units:Single item;
Brand Name:TSC;Type:Thermal transfer/Direct thermal;
Single gross weight:18 KG;Single package size:54X38X41 cm;

Product model ME240
Print SpecificationResolution8 dots/mm (203 DPI)
Max. print speed152 mm (6")/second
Max. print width104 mm (4.09")
Max. print length2,286 mm (90")
Printing methodThermal Transfer & Direct Thermal
LCD/LEDLCD/LED• Basic model without LCD
• Advanced model with Graphic type, 128 x 64 pixel, with back light

MemorySDRAM8 MB
Flash4 MB
ExtensionSD Flash memory card reader for Flash memory expansion, up to 4 GB
Ribbon & Media CapacityRibbon capacity450 m long, max. OD 81.3 mm, 1" core (ink coated outside)
Ribbon width40 mm ~ 110 mm (1.6" ~ 4.3")
Media typeContinuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width25.4 ~ 118 mm (1.0" ~ 4.6")
Media thickness0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media core diameter25.4 mm ~ 76.2 mm (1" ~ 3")
Media length5 ~ 2,286 mm (0.2" ~ 90")
Media roll capacity203.2 mm (8") OD
InterfaceStandard• RS-232
• USB 2.0

Options• Parallel
• USB Host
• Ethernet
• 10/100 Mbps

Software SupportSoftware supportSAP, Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label
Physical characteristicsDimension286 mm (W) x 259 mm (H) x 434 mm (D)
11.26" (W) x 10.20" (H) x 17.09" (D)

Weight11 kg (24.25 lbs)

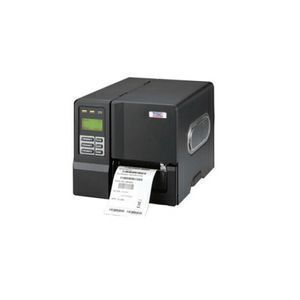

TSC ME240 series of industrial thermal label printers was designed to offer the right features at the best value in the industry. The ME240 features a small footprint and low profile design that fits where larger industrial printers do not.

Its quiet operation and fast label throughput is equally at home, in the office or shop floor environment. The printers all-metal construction and die-cast aluminum print mechanism engine is durable enough to withstand the toughest production environments.

While priced for value, the ME240 series offers two models loaded with popular features, and offers a selection of options and accessories to further enhance its capabilities to meet the demands of a wide range of printing solutions. Standard features include USB and Serial connectivity, a 2-button 3-LED (basic model)/ 6-button LCD (advanced model) control panel 3-button LED display, Real Time Clock, 8 MB SDRAM memory, 4 MB Flash memory and an SD Flash memory card reader that allows for Flash memory expansion up to 4 GB.

Popular options include a full featured graphical LCD display (for basic model), Ethernet connectivity, USB host, a peel-off module, stand-alone keyboard, cutter module and a parallel port to work with legacy installations.

The ME240 series features TSPL-EZ firmware that is easy to set up and use. TSPL-EZ offers automatic TPLZ and TPLE language emulation right out of the box. The printer simply translates each label format as the printer receives it. The included DiagTool configuration software makes it a snap to replace existing printers with a modern durable ME240 series printer. Other TSPL-EZ features include a file manager and programming language that support stand-alone and down-time programming solutions allowing you to print labels without connection to a host computer, or optionally be able to continue printing labels during times of network failure.
