Mini stone crusher, high capacity small jaw crusher 100*60 for laboratory testing

Supplier: Henan Fineschina Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Jack Lee
Price: $750.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	FINESCHINA;	Motor Type:	AC Motor;
Weight:	80-350 kgs;	Inlet size:	100/60;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	laboratory;
Packaging Detail:	Before delivery, the equipment is treated for anti-corrosion. Small parts and electric motor will be put into wooden cases; while the large parts are in nude.;	After sale Service:	Maintenance;
Color:	Any color available;	Capacity:	100-3000kgs/h;
Supply Ability:	3 Ton/Tons per Quarter;	Feeding size:	50;
Type:	Jaw Crusher;	Warranty:	1 Year;
Capacity(t/h):	40-1800 kgs/h;	Test&Installation:	Professional Engineer Assigned;
Place of Origin:	Henan China (Mainland);	Name:	Lab jaw crusher;
Certification:	ISO, SGS, BV;	Port:	Qingdao, Shanghai, Ningbo, Tianjin, Any Chinese port;
Condition:	New;	Spare parts supply:	Anytime;
Brand name:	FINESCHINA;	Payment Terms:	L/C,T/T,Western Union;
After-sales Service Provided:	Video technical support,Online support;	Dimension(LWH):	Varies;

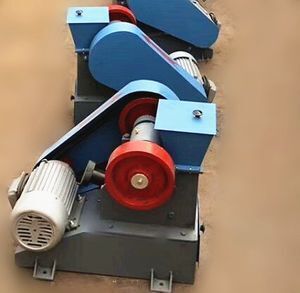

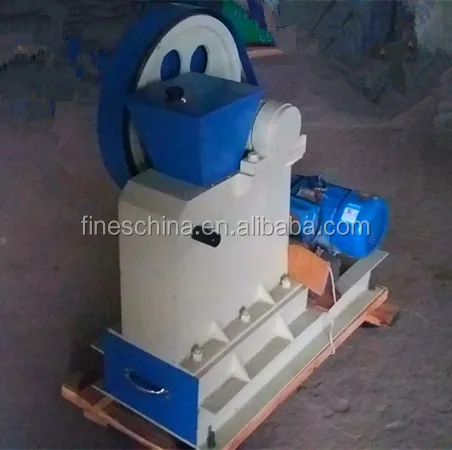

Laboratory Jaw Crusher Small Crusher From China

Processing capacity:0.04-3t/h

Output size:1-40mm

Applied material:for laboratory using

Brief Introduction of Lab Jaw Crusher:

Laboratory jaw crusher is ideal crusher for laboratory using. Laboratory Jaw Crusher is a new generation of crushing equipment with easy open of dynamic and static jaws, convenient clean up and no blending of samples. It is capable of fine and medium crushing a variety of ores and materials with compressive strength of 24kg/cm2 and below. Have the performance of great crushing ratio, uniform particle size and adjustment of output size.

Working Principle of Lab Jaw Crusher:

Laboratory jaw crusher uses the motor to drive belt and pulley, through the eccentric shaft to make the jaw move up and down, when movable jaw falls, the angle between the fixed jaw and the movable jaw become smaller, the materials are crushed to achieve crushing the purpose; when movable jaw rises, the angle between the movable jaw and the fixed jaw become larger, the movable jaw plate leaves the fixed jaw plate under the action of a pull rod. At this time materials broken discharge from the crushing chamber.

Features of Lab Jaw Crusher:

1: Simple structure, easy maintenance.

2: Smart body, easy taking.

3: Safe operation.

4: Low cost of production.

Specifications of Lab Small Jaw Crusher:

Type	Inlet size (mm)	Feeding size (mm)	Capacity (t/h)	Motor power (kw)	Output size (mm)	Overall dimension (mm)	Weight (T)
PE-60×100	60×100	45	0.3-0.8	1.1	3-10		0.116
PE-150×250	150×250	125	1-5	5.5	10-40	875×758×850	0.81
PE-250×400	400×250	210	5-20	15	20-60	1450×1315×1296	2.8
PE-250×500	250×500	210	9.12-49	18.5	20-80	1450×1415×1296	3.25
PE-400×600	400×600	340	16-65	30	40-100	1565×1732×1586	6.5
PE-430×600	430×600	400	56-96	37	90-140	1595×1732×1586	6.8
PE-500×750	500×750	425	45-100	55	50-100	1890×1916×1870	10.1
PE-600×750	600×750	500	80-160	55	150-200	2000×1916×1870	12
PE-600×900	600×900	500	50-120	55-75	65-160	2305×1840×2298	15.5
PE-670×900	670×900	500	105-132	55-75	135-230	2375×1540×2298	14.8
PE-750×1060	750×1060	630	52-180	110	80-140	2450×2472×2840	28
PE-870×1060	870×1060	670	210-330	110	200-260	2570×2472×2840	30.5
PE-900×1060	900×1060	685	160-380	110	230-290	2600×2472×2840	31
PE-900×1200	900×1200	750	140-260	110	95-165	3335×3182×3025	50
PE-1000×1200	1000×1200	850	315-342	110	190-365	3435×3182×3028	51
PE-1200×1500	1200×1500	950	296-560	160	150-350		100.9
PEX-150×750	150×750	125	8-25	15	10-40	896×745×935	3.8
PEX-250×750	750×250	210	15-30	22	25-60	1667×1545×1020	4.9
PEX-250×1000	1000×250	210	16-52	30-37	25-60	1530×1992×1380	6.5
PEX-250×1200	250×1200	210	20-60	37	25-60	1900×2192×1430	7.7
PEX-300×1300	300×1300	250	20-90	75	25-105	2720×1950×1600	11
