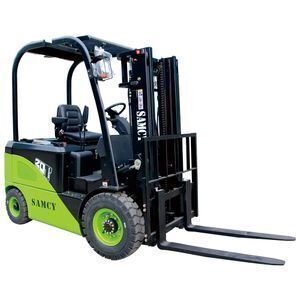

SAMCY Forklift CE Certification New Style 2 Ton Electric Forklift

Supplier: Wuxi Samcy Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Samuel Wong
Price: $11000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Free lift:	120 mm;	Min. Lifting Height:	105mm;
After-sales Service Provided:	Online support;	Brand Name:	SAMCY;
Warranty:	2 Years;	Load Center:	500 Mm;
Condition:	New;	Max. Lifting Height:	6000mm;
Power Souce:	AC Motor;	Overall Dimensions:	211511302040mm;
Supply Ability:	10000 Piece/Pieces per Year;	Port:	shanghai;
Max. Lift Height:	6000 mm;	Packaging Detail:	Product Name:SAMCY Forklift CE Certification New Style 2 Ton Electric Forklift Packing: Nude cargo Loading: 4 sets 20 feet container;
Mast:	Free/3 Stage;	Certification:	CE.ISO.EPA;
product name:	SAMCY Forklift CE Certification New 2 Ton Electric Forklift;	After-sales Service Provided:	Overseas service center available;
Place of Origin:	Jiangsu China;	Fork Length:	1070mm;
Fork Width:	120mm;	Type:	battery;
Power:	80V/500AH;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Model:	CPD20;
Weight:	3540 kg;	Loading Capacity:	2 ton;

Product Name	SAMCY Forklift CE Certification New Style 2 Ton Electric Forklift
Item Type	Forklift Truck
Item No.	CPD20
Place of Origin	Jiangsu, China (mainland)
After-Sales Service	Overseas Third-party Support Available
Color	Green or Customized
Certificate	CE & ISO9001
Size	211511302040mm
Fork Width	125mm
Fork Length	1070mm
Load Capacity	2 ton
Power Type	Electric power
Lift Height	6 m
Mast	Free 3 Stage
Application Area	Entrepot, Warehouse, Station, Port, Port of Transshipment
Packing	Nude Cargo, for 20GP can Load 4pcs & for 40GP 6pcs
Service	OEM, ODM

Characteristics
1.1	Manufacturer		SAMCY
1.2	Model designation		CPD20
1.3	Drive unit		Battery
1.4	Operator type		Rider seated
1.5	Load capacity	Q (kg)	2000
1.6	Load center	c (mm)	500
1.8	Load distance	x (mm)	397.5
1.9	Wheelbase	y (mm)	1435
Weights
2.1	Service weight	kg	3540
2.2	Axle loading, laden front/ rear	kg	4955/585
2.3	Axle loading, unladen front/ rear	kg	1720/1820
Wheels, Chassis
3.1	Tyre type		Solid tyre
3.2	Tyre size, front		200X50-10
3.3	Tyre size, rear		16X6-8
3.5	Wheels, number front/ rear (x=drive wheels)		2x/ 2
3.6	Tread, front	b10 (mm)	902
3.7	Tread, rear	b11 (mm)	890
Dimensions
4.1	Mast/ fork carriage tilt, forward/ backward	α/ β (°)	6/6.5
4.2	Height, mast lowered	h1 (mm)	1995
4.3	Free lift	h2 (mm)	120
4.4	Lift height	h3 (mm)	3000
4.5	Height, mast extended	h4 (mm)	3945
4.7	Height of overhead guard (cabin)	h6(mm)	2040
4.8	Seat height	h7 (mm)	855
4.12	Tow coupling height	h10 (mm)	470
4.19	Overall length	l1 (mm)	3185
4.20	Length to face of forks	l2(mm)	2115
4.21	Overall width	b1/ b2 (mm)	1130
4.22	Fork dimensions	s/ e/ l (mm)	40×120×1070
4.24	Fork carriage width	b3 (mm)	1040
4.31	Ground clearance, laden, below mast	m1(mm)	105
4.32	Ground clearance, center of wheelbase	m2 (mm)	95
4.33	Aisle width, 1000×1200 pallet crossways	Ast (mm)	3430
4.34	Aisle width, 800×1200 pallet lengthways	Ast (mm)	3250
4.35	Outer turning radius	Wa (mm)	1715
Performance
5.1	Travel speed, laden/ unladen	km/ h	13/ 14
5.2	Lifting speed, laden/ unladen	m/ s	0.26/ 0.43
5.3	Lowering speed, laden/ unladen	m/ s	0.44/ 0.435
5.6	Maximum drawbar pull, laden/ unladen S2 5 min.	N	———
5.8	Maximum gradeability, laden/ unladen S25 min.	%	10.5/ 14.5
5.10	Service brake		Hydraulic/mechanical
Drive
6.1	Drive motor rating S2 60 min.	kW	6.59
6.2	Lift motor rating at S3 15%	kW	7.511
6.4	Battery voltage/ rated capacity (5h)	V/ Ah	48/500(max600)
6.5	Battery weight	kg	753
Others
8.1	Type of drive control		AC ZAPI
8.2	Operating pressure for attachments	bar	14.5
8.4	Sound level at operator's ear	dB (A)	74

There is an engine available for all application and customer needs.
SAMCY offers a wide range od Diesel,Gasoline and LPG engine options.
Buffering fule tank makes the fork slowly done to the ground,protect the goods.
SAMCY forklifts do comply with the latest safty,emission and noise standards e.g. CW,EU3.
Integrated overhead guard and rain cover offering outstanding protection and visbility.
Greater visibility through the mast due to special mast design,low position of dashboard and display.

Trade Terms	EXW, FOB, CFR, CIF or others
MOQ	1 Set
Port	Shanghai Port, Ningbo Port or others
Shipment	Ocean or Air transportation, International Express
Payment Terms	LC D/A D/P T/T Western Union Money Gram
Payment Condition	30% before Prodution, 70% after Delivery Upon BL
Supply Capacity	10,000 Sets per Year
Delivery Time	40 days after confirming the order
Service	OEM/ODM
