16DI 24Vdc automation plc programmable logic controller delta touch screen plc

Supplier: Zhangjiagang Haina Automation Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Samuel zhang
Price: $67.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Standard export packaging;	Place of Origin:	Jiangsu China;
Condition:	0 ℃ ~ 50 ℃;	Communication:	Ethernet/RS-232/RS-422/RS-485/CANopen;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Certificate:	CE UL;
Warranty:	24 Months;	Model Number:	DVP16HM11N;
Port:	shanghai china;	Power supply:	24VDC (-15%~20%);
max I/O:	512;	Input pionts:	16;
Service:	Technical Support/free software/after sale serice all over the world;	Supply Ability:	1000 Piece/Pieces per Month;
Brand Name:	Delta;

Catalogue

Reliable partners: All 5 star service

Description

EH3 series data

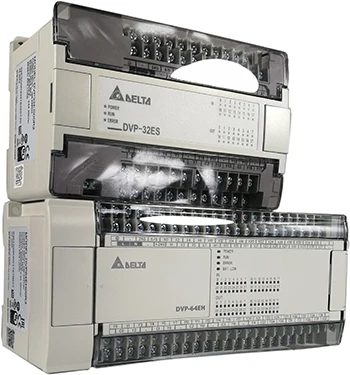

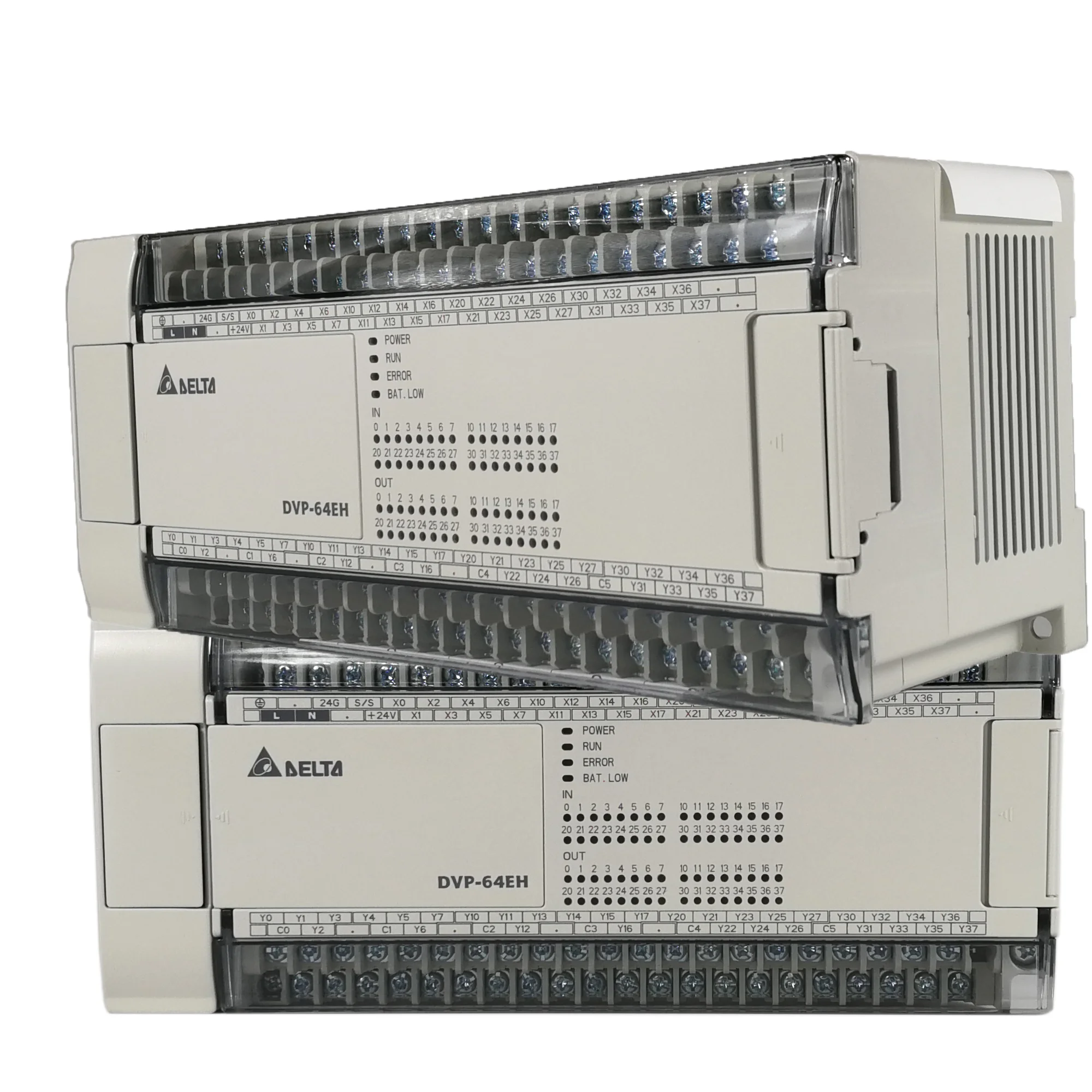

>> High Performance PLC DVP-EH Series
Small PLC with Highest Operation Efficiency

DVP-EH3

Max. 512 I/O points
>>200 kHz high-speed pulse output
>> High-speed extension modules

>>Auto backup function prevents program and dataloss even when the battery runs out

>>Secondary backup function saves an extra copy of programs and data to enhance program safety

>>Up to 4 levels of password protection protects yoursource programs and intellectual property

>>32-bit CPU + ASIC dual processors support floating point operations

>>PLC Link allows users to link up a max. of 32 units to the network without extra communication extension modules

Model Name	Power supply	input points	Output points	Output typ	Specifications
DVP16EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	8	8	Relay output	2 counters of 200 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP16EH00T3	100~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	8	8	Transistor output	2 counters of 200 kHz input, 2 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP20EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	12	8	Relay output	2 counters of 200 kHz input, 1 counter of 20 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP20EH00T3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	12	8	Transistor output	2 counters of 200 kHz input, 2 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP32EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Relay output	4 counters of 200 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP32EH00T3*2	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Transistor output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP32EH00M3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Relay output/Differential output	4 counters of 200 kHz input (Differential: 2 sets), 2 axes of 200 kHz output (Differential: 2 axes)/Built-in 1 RS-232 and 1 RS-485 ports
DVP32EH00MT	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Transistor output/Differential output	4 counters of 200 kHz input (Differential: 2 sets), 2 axes of 200 kHz output (Differential: 2 axes)/Built-in 1 RS-232 and 1 RS-485 ports
DVP32EH00R3-L*1	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Relay output	4 counters of 200 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP32EH00T3-L1 2	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Transistor output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP40EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	16	Relay output	4 counters of 200 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP40EH00T3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	16	Transistor output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP48EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	24	Relay output	4 counters of 200 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP48EH00T3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	24	Transistor output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP64EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	32	32	Relay output	4 counters of 200 kHz input/Built-in 1 RS-232 and 1 RS-485 ports
DVP64EH00T3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	32	32	Transistor output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports
DVP80EH00R3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	40	40	Relay output	4 counters of 200 kHz input
DVP80EH00T3	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	40	40	Transistor output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 ports

ES2 EX2 series data

>> Standard PLC DVP-ES2 / EX2 Series

The Most Profitable Solution for Sequential Control
DVP-ES2 / EX2

>>32-bit CPU for high-speed processing

>> 100 kHz pulse output

>> Analog input / output

>>Highly efficient processing ability: 1 k steps of programs can be completed within 1ms

>>Max. 100 kHz pulse control; specific motion control instructions (mark/masking and instant frequency changing) available formulti-axis applications

>>Up to 4 levels of password protection secures your source programs and intellectual property

Model Name	Power supply	input points	Output points	Output typ	Specifications
DVP16ES200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	8	8	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485
DVP16ES200T	100~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	8	8	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 ports
DVP20ES200RE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	12	8	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 1Ethernet ports
DVP20ES200TE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	12	8	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 1Ethernet ports
DVP24ES200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	8	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485
DVP24ES200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	8	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 ports
DVP32ES200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485
DVP32ES200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 ports
DVP32ES211T	24 VDC (-15% ~ 20%)	16	16	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 ports
DVP32ES200RC	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Relay output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 1CANopen ports
DVP32ES200TC	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 1CANopen ports
DVP32ES200RE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Relay output	4 counters of 200 kHz input, 4 axes of 200 kHz output/Built-in 1 RS-232 and 1 RS-485 1Ethernetports
DVP32ES200TE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	16	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 1Ethernet ports
DVP40ES200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	16	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485
DVP40ES200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	16	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS-485 ports
DVP40ES200RE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	16	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 1Ethernet ports
DVP40ES200TE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	24	16	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS485 1Ethernet ports
DVP60ES200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	34	26	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 ports
DVP60ES200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	34	26	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS485 ports
DVP60ES200RE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	34	26	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 1Ethernet ports
DVP60ES200TE	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	34	26	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 1Ethernet RS485 ports
DVP80ES200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	40	40	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 ports
DVP80ES200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	40	40	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS485 ports
DVP20EX200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	8	6	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 ports;4AI / 2AO
DVP20EX200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	8	6	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS485 ports;4AI / 2AO
DVP30EX200R	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	10	Relay output	2 counters of 100 kHz input,2 counters of 20 kHz input;Built-in 1 RS-232 and 1 RS-485 ports;3AI/1AO
DVP30EX200T	100 ~ 240 VAC (-15% ~ 10%), 50 / 60Hz ±5%	16	10	Transistor output	2 counters of 100kHz input/output; 2 counters of 20kHz input/output; Built-in 1 RS-232 and 1 RS485 ports;3AI/1AO

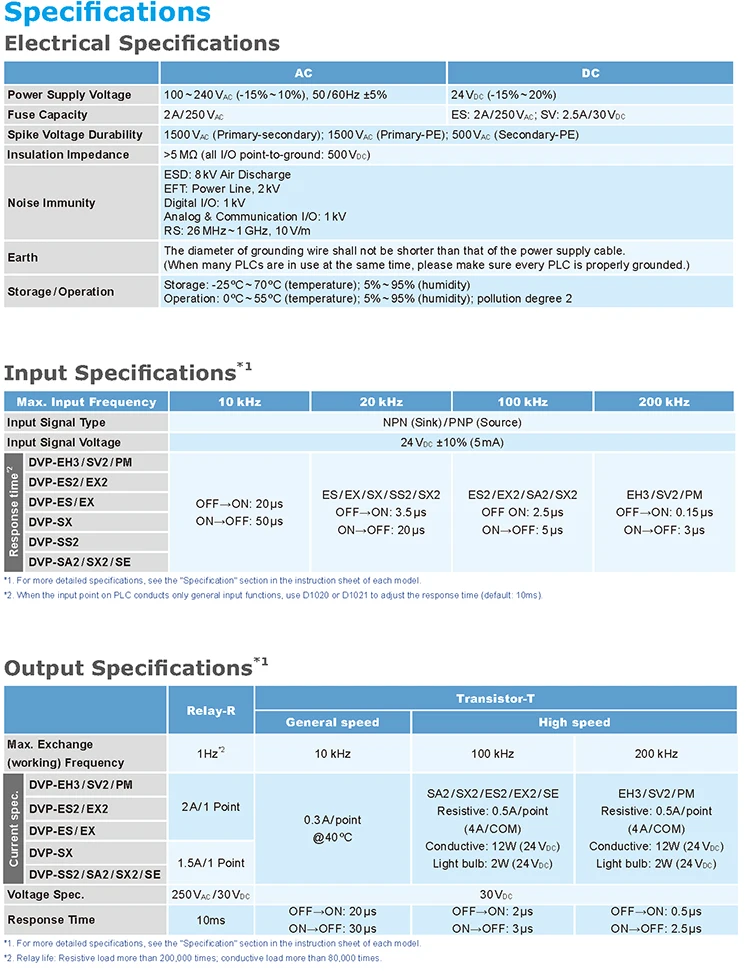

Specifications

>>Free software WPLSoft for DVP Series is basic Windows 98, Me, NT4.0, 2000, XP, Vista, Windows 7 (32-bit / 64-bit)

>>Up to 4 levels of password protection secures your source programs and intellectual property

>>Secondary backup function saves an extra copy of programs and
data to enhance program safety

Contact information

Our Advantage

*Over 10 million offline sales per year.Our products are available in beverage machinery, plastic machinery,and machinery prevention to all over the world"such as Usa,Saudi Arabia, Russia,etc"

*The quality of delta brands is better than some small brand OEM products.

*All products are provided worldwide after sales service

Q&A

Q .What is Delta Electronics?

A. Delta Electronics is chinese top Automation products manufacture

Q . How to ensure your after sale service ?

A. Delta manufacture have Branch offices all over the world

Q . How is your price?

A. We are the directly agent of Delta manufacture,Over 10 million offline sales per year.We can give customers good price than other company.We can negotiate prices in large quantities.

Q .Which market do you already sell?

A.We already ship to Europ, Middle East, South America, Asia, Afria etc.

Q. what kind of certificate you have ?

A.We have CE, UL. C-TICK.

Q. What information should be provided to get a clear model with quotaion?

A.Please directly provide input voltage, your requirements and usage occasion or our models
