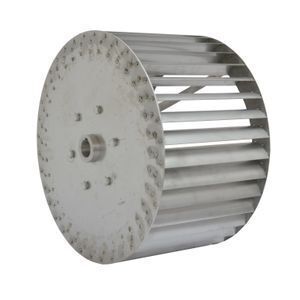

Single inlet galvanized forward centrifugal blower wheel impeller
- 10.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Guangzhou/Foshan/Shenzhen; | Supply Ability: | 10000 Piece/Pieces per Month; |
| Payment Terms: | L/C,T/T,Western Union,Paypal; | Material of impeller: | Galvanized; |
| Brand Name: | CHOSEN; | Model Number: | CH-CFS400-A; |
| Standard or Nonstandard: | Standard; | Place of Origin: | Guangdong China; |
| High: | 200 mm; | Pump Parts & Accessries: | Impeller; |
| Diameter of impeller: | 400 mm; |
Advantages
1. Various material for option : Galvanized steel, Stainless Steel #304/#316/#316L, Aluminum Alloy.
2. Each impeller will do by dynamic balancing test. It greatly improves the stability of the impeller operation and reduces the vibration & noise.
3. Each impeller also so Radial Running, Axial Viberation.
4. The impeller be test by completed build-up centrifugal fan, the air Performance Parameter is truth and reliable.
5. High static efficiency.
| Model | Impeller Dia | High | Shaft | Meterial |
| mm | mm | Φ | ||
| CH-CFS200-A | 200 | 100 | 20 | Gavanized |
| CH-CFS225-A | 225 | 110 | 20 | Gavanized |
| CH-CFS250-A | 250 | 120 | 25 | Gavanized |
| CH-CFS280-A | 280 | 140 | 30 | Gavanized |
| CH-CFS315-A | 315 | 158 | 30 | Gavanized |
| CH-CFS355-A | 355 | 175 | 35 | Gavanized |
| CH-CFS400-A | 400 | 200 | 35 | Gavanized |
| CH-CFS450-A | 450 | 225 | 40 | Gavanized |
| CH-CFS500-A | 500 | 245 | 40 | Gavanized |
| CH-CFS560-A | 560 | 280 | 45 | Gavanized |
| CH-CFS630-A | 630 | 305 | 50 | Gavanized |
| CH-CFS710-A | 710 | 340 | 50 | Gavanized |
| CH-CFS800-A | 800 | 395 | 55 | Gavanized |
| CH-CFS900-A | 900 | 450 | 60 | Gavanized |
| CH-CFS1000-A | 1000 | 500 | 65 | Gavanized |
Applications
1. Integrated fans.
2. roof ventilators.
3. ventilation and air-conditioning systems (HVAC/AHU).
4. industrial applications.
