Manufacturer direct price hydraulic Hand Pallet Truck
- 100.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Place of Origin: | Hebei China; | color: | yellow,red,blue,or customized; |
| Fork length: | 1150/1220mm; | Packaging Detail: | cartons or as customers request.; |
| Model Number: | CBY-AC; | lifting height: | 110mm; |
| Min.fork height: | 85/75mm; | Max loading capacity: | 3ton; |
| Port: | tianjin port,shanghai port,dalian port; | Supply Ability: | 10000 Piece/Pieces per Month; |
| Brand Name: | SHUHUI; | certification: | CE/ISO9001; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Lift Drive / Actuation: | Hand; |
| Max.fork height: | 195/185mm; | Fork overall wideth: | 550/685mm; |
Product Description

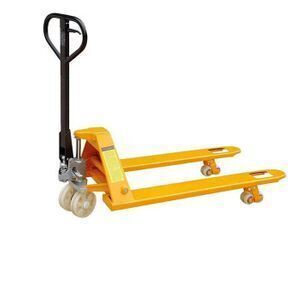

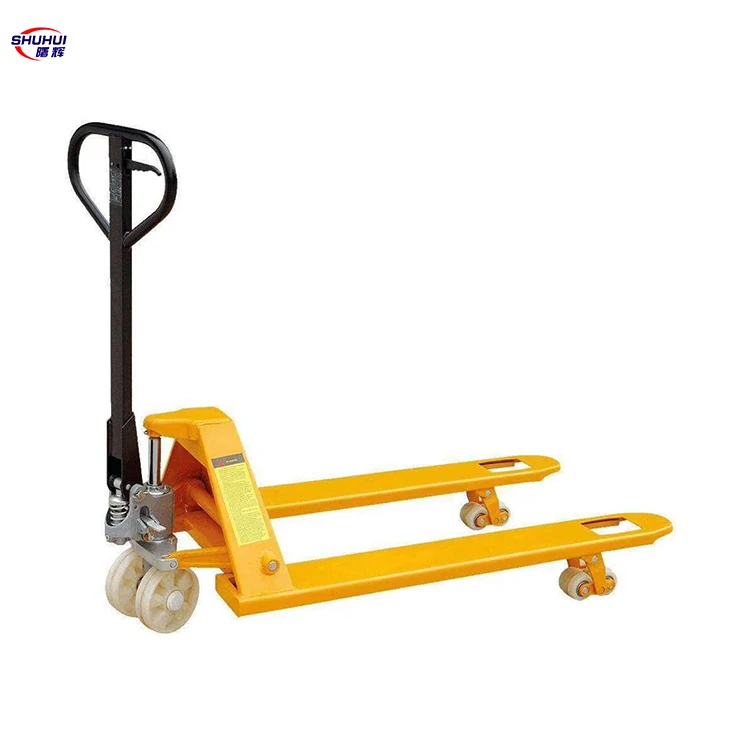

CBY-AC manual factory direct Hydraulic Hand Pallet Truck
1. Powerful, simple appearance.

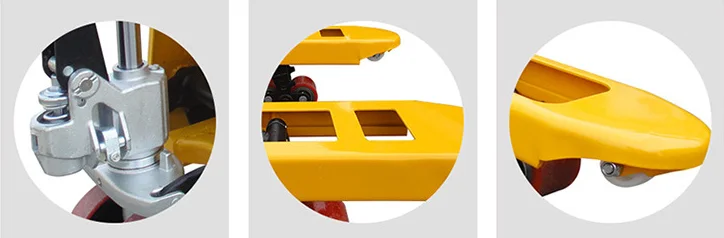

2. Pump casing as a mechanical, hydraulic integration of integrated design, leak-proof seal design
reliable, maintenance-free, removable, small turning radius
3.Setting safety valve to avoid overloading.
4. Fork lowering speed control, overload protection, long service life.
5. Three-handle: lifting, falling, median.
6. High strength steel frame building, large carrying capacity.
Technical parameters as follows:
| Model | CBY-AC 2.0 | CBY-AC 2.5 | CBY-AC 3.0 |
| Capacity(Kg) | 2000 | 2500 | 3000 |
| minimum fork height (mm) | 85/75 | ||
| maximum fork height (mm) | 195/185 | ||
| lifting height(mm) | 110 | ||
| Fork lenght (mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| single fork width(mm) | 160 | ||
| fork overall width (mm) | 550/685 | ||

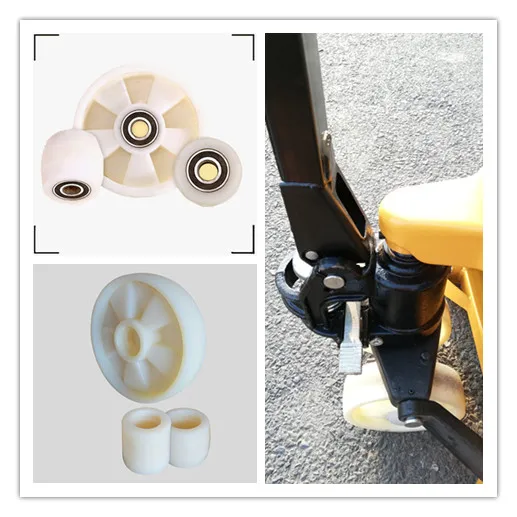

| fork wheel single(mm) | Φ80x93/74x93 | ||
| fork wheel-tandem(mm) | Φ80x70 | ||
| Steering wheel (mm) | Φ180x50 | ||
| Self weight(Kg) | 73--92 | ||
| Qty/20 container(Pcs) | 180/144 | ||
