Precision Roll to Roll Thick Paper Converting Machine

Supplier: Ruian Ruihua Printing Packing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fern Chen
Price: $7200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V/380V 50Hz;	Place of Origin:	Zhejiang China;
Min. Slitting Width:	30mm;	Type:	Slitting Rewinder;
Certification:	CE/SGS;	Model:	LFQ-1100;
Package Type:	Precision Roll to Roll Thick Paper Converting Machine is with standard exporting pacakge, stretch film wrapping and anti rust treatment, wooden case pacakge.;	Brand Name:	JINGDIANRUIHUA;
Magnetic Brake/Clutch:	3 sets;	Max. Unwinding Width:	1100mm;
Single gross weight:	1,800 KG;	Dimension(LWH):	250013001500mm;
Computer Control System:	Yes;	Kind:	Precision Roll to Roll Thick Paper Converting Machine;
Automatic Tension Controller:	Yes;	Weight:	2500kg;
Working Way:	Roll to roll cutting;	After-sales Service Provided:	Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Warranty:	1 Year;	Applicable Industries:	Manufacturing Plant;
EPC Tracking System:	Yes;	Condition:	New;
Selling Units:	Single item;	Single package size:	350X200X150 cm;
Computerized:	Yes;	Brand:	JINGDIANRUIHUA;

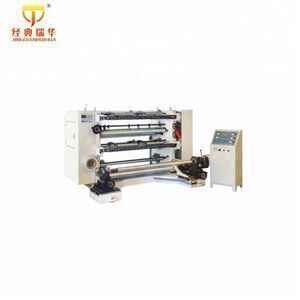

Precision Roll to Roll Thick Paper Converting Machine

Product Description

Professional Manufacturer

1. Safety first, quality first .

2. Strict and advanced workshop management system .

3. The human production, people-oriented .

4. High quality products to provide high quality environment

Use:

Precision Roll to Roll Thick Paper Converting Machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminium foil and paper, like adhesive paper, kraft paperand other kinds of paper, etc. And this machine can cut edge, separate and cut material according to different requirements during production.

Performance and Characteristics:
1. The machine is a kind of vertical separating and cutting machine. Rolling and releasing can be in front of or at the back of the machine.
2. Independent master control screen, more flex ible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable fortracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.

Main Technical Variables:
Model	LFQ-1100A	LFQ-1300A
Max.Width of Separating and cutting RollMaterial	1100mm	1300mm
Max.Diameter of Separating and cutting Roll Material	φ600mm	φ600mm
Width of Roll Material Cutting	30~1000mm	30~1200mm
Separating and Cutting Speed	5~160m/min	5~160m/min
Deviating-rectifying Error	<±0.5mm	<±0.5mm
Total Power	3kw	3.5kw
Weight of the Whole Machine	1500kg	1800kg
Overall Dimension	2400×1100×1400mm	2600×1110×1400mm
