Well-structured and Multipurpose Oil Purifier Vacuum Oil Purifier ,oil filter carts,oil filter machine equipment

Supplier: HENAN DEMALONG FILTER CO.,LTD
Region: Henan, China
Contact: Ms Xia Shan
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Working vacuum (Pa):	≤-0.095;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	Wooden cartons.;	After filtration water content (ppm):	5~30;
Structure:	Filter oil vehicle;	Rated Pressure:	0.6;
Collapse pressure rating:	21bar-210bar (Hydraulic Liquid Filtration);	Warranty:	12 Months;
Type:	Hydraulic filter cart;	Power(W):	380V;
Condition:	New;	Supply Ability:	1000 Set/Sets per Month;
Condition:	New;	After-sales Service Provided:	Overseas service center available;
Working system:	hydraulic and fuel system;	Fine filtration accuracy (μm):	3,5,10;
Port:	SHANGHAI/QINGDAO/GUANGZHOU/XIANGGANG/BEIJING ect.;	Acid value (mgKOH/g):	≤-0.03;
Delivery Detail:	7-10 DAYS AFTER PAYMENT/ACCORDING TO THE QUANTITY.;	Structure:	Vacuum;
Certification:	ISO9001;	Dimension(LWH):	Customer's Request;
Weight:	560-1500KG;	Brand Name:	DEMALONG;
Type:	Efficient Vacuum Oil Filter Cart;	Place of Origin:	Henan China;

Well-structured and Multipurpose Oil Purifier Vacuum Oil Purifier

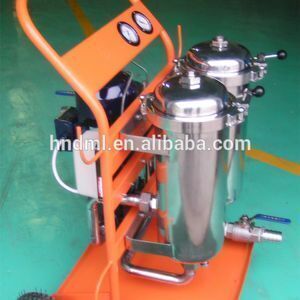

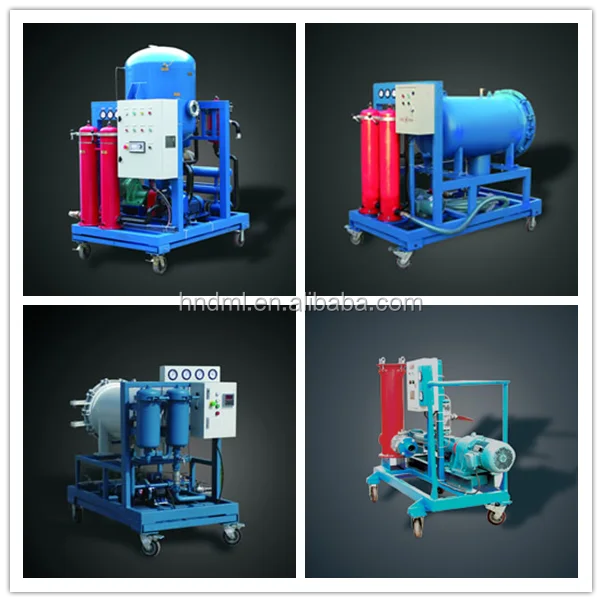

Product Show

Applications

Purifier turbine oil and transformer oil
Removing water and impurities filtration of hydraulic lubricating oil
Improve hydraulic lubrication system cleanliness
Various types of oil regeneration purifier

Efficient vacuum oil filter suitable for:
Turbine oil ,hydraulic oil ,Lubricating oil ,Insulating oil ,Transformer oil ,Capacitor oil ,Compressor oil

Efficient vacuum oil filters’ main functions:

Dehydration Degassing Removal of mechanical impurities
Also in parallel with the reproducing apparatus could:
Get rid of acid Decolor Improve the insulation strength

Technical Parameters

MODEL	ZLYC-25J-/*	ZLYC-50J-/*	ZLYC-100J-/*	ZLYC-200J-/*
Rated Flow (L/min)	25	50	100	200
Rated Pressure (Mpa)	0.6
Working vacuum (Pa)	≤-0.095
After filtration water content (ppm)	5~30
Filtered air content (Volume ratio)	≤-0.2%
Fine filtration accuracy (μm)	3,5,10
Acid value (mgKOH/g)	≤-0.03
Total power (Kw)	26	36	65	135
Voltage ( V)	AC380V three-Phase
Weight (Kg)	560	680	960	1500
Dimensions	1500 X900 X1600	1600 X980 X1800	1800 X1080 X2000	2200 X1200 X2200

Note: * is the two grade fine filter accuracy,such as 003 is 3 microns.
** is the suitable medium,Omission:No requirement.

                        S:need add Acid grease.
  *** Adaptation medium viscosity:≤100cSt
  *** Medium viscosity>100cSt,need to add the heating device.

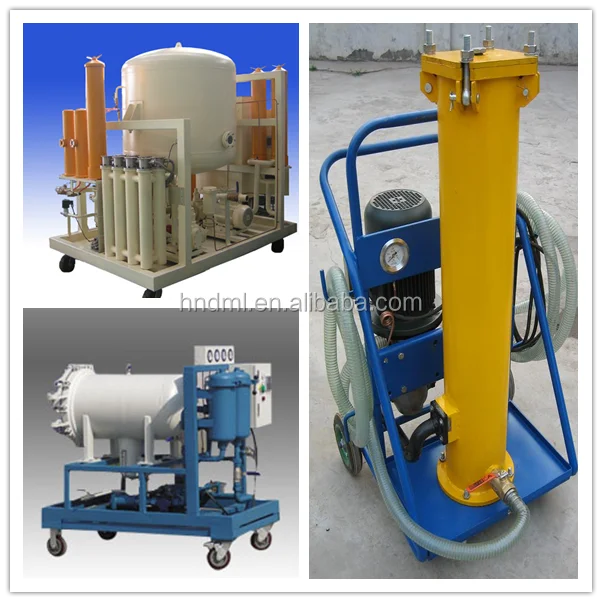

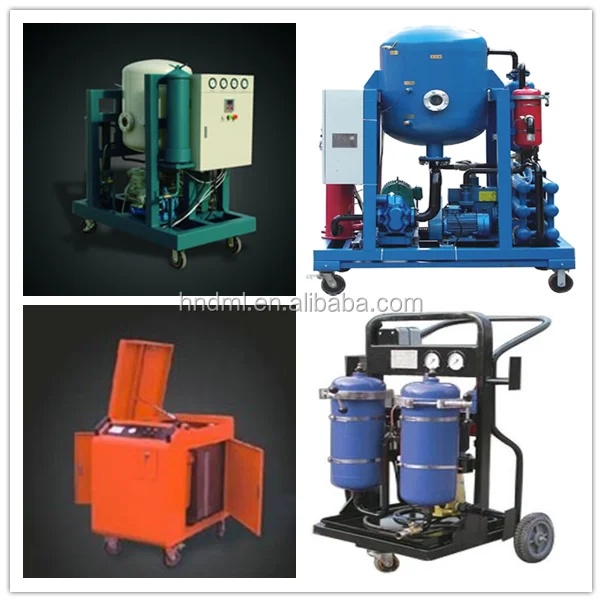

We also offer following Filtering Equipment:

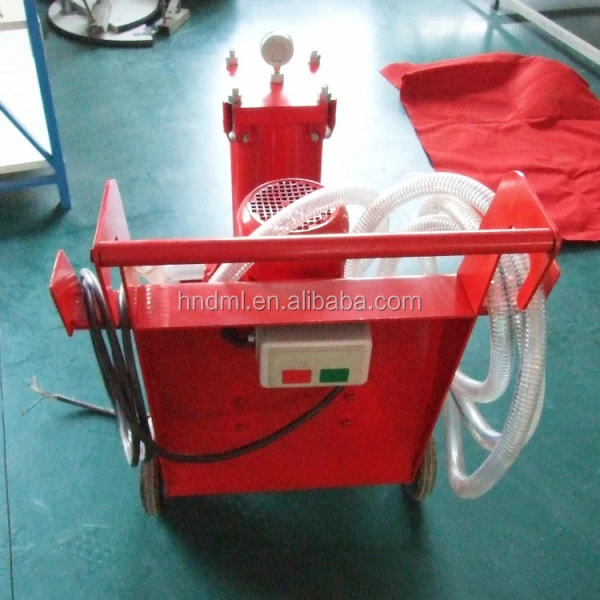

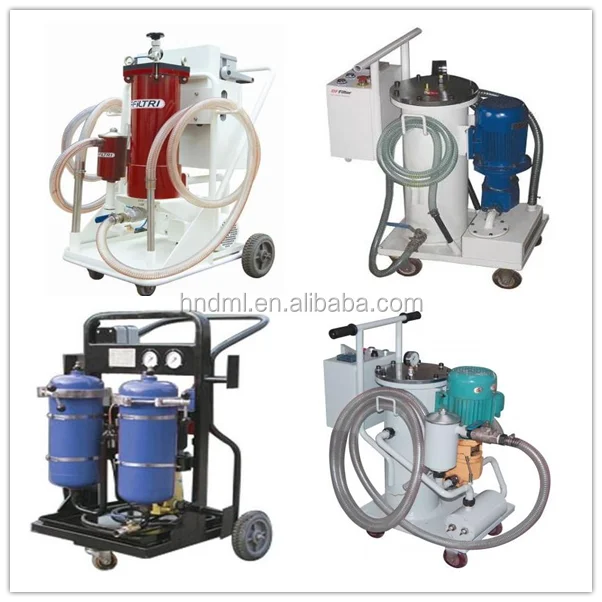

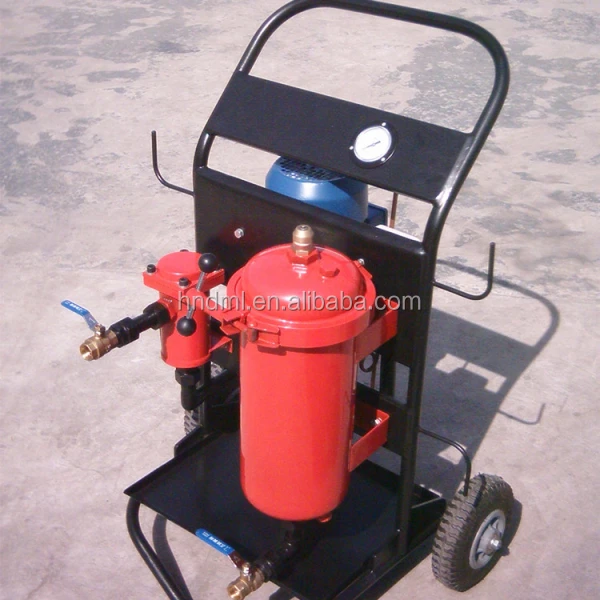

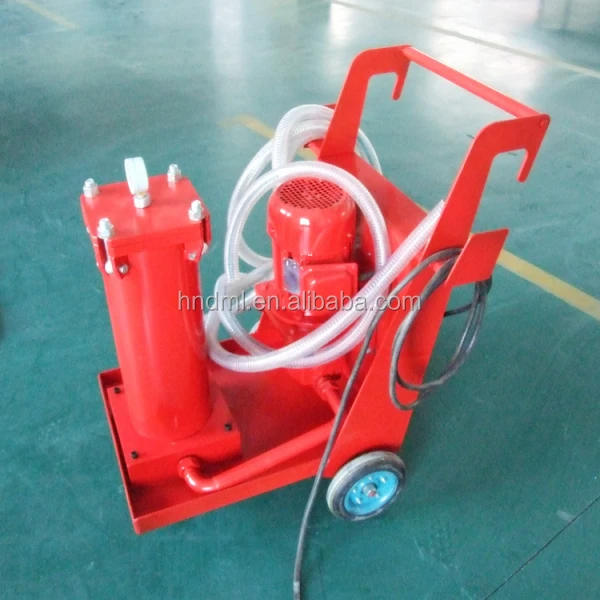

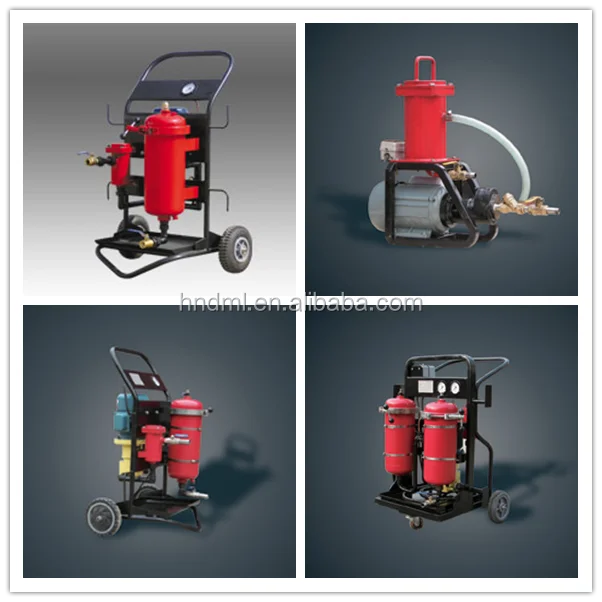

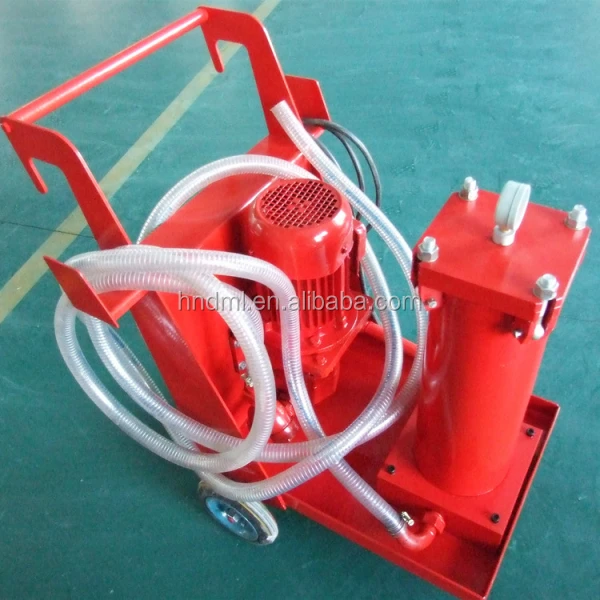

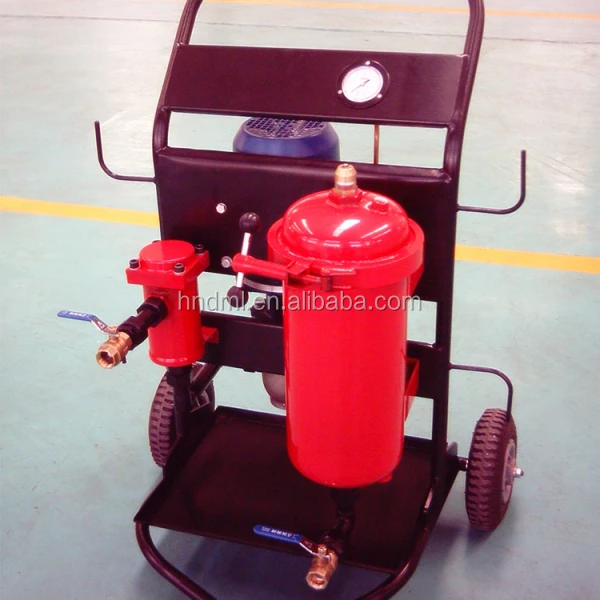

Portable Filter Carts

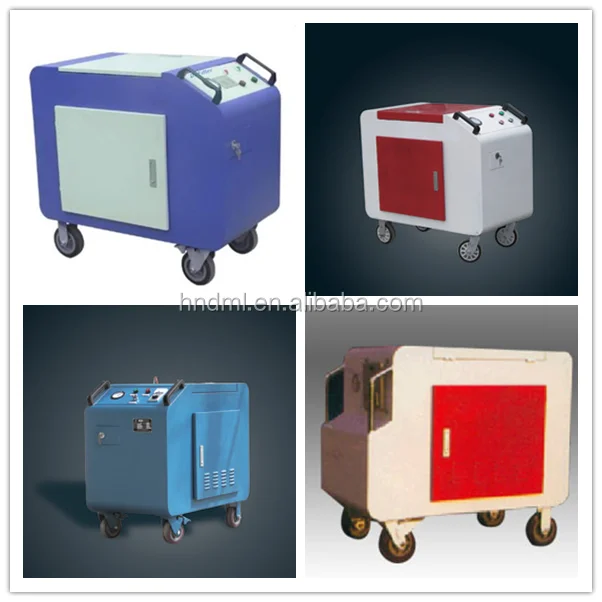

Explosion-proof Box-Type Movable Oil purifier

High-Precision Filter Carts

Coalescence Dehydration Oil Filter Carts

High-Viscosity Filter unit

High-Solids Content Filter oil vehicle
