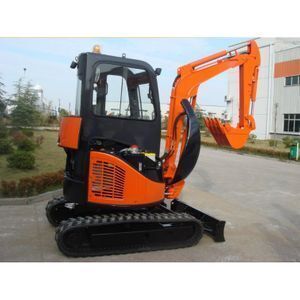

NT28U 3.2Ton 0.1cbm Hydraulic Crawler Excavator

Supplier: Qingdao Brilliant Industry&Trade Co., Ltd.
Region: Shandong, China
Contact: Ms. Grace Li
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao,Shanghai,Tianjin,Ningbo;	Operating Weight:	3200kg;
Ground pressure:	29Kpa;	Condition:	New;
Rear Swing Radius:	770mm;	Color:	Optional;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	ISO CE;
Product name:	NT28U 3.2Ton 0.1cbm Hydraulic Crawler Excavator;	Packaging Detail:	Quantities in container 20'container 4 x NT16 , 4XNT18 , 7XNT08 . 40'container 8 x NT16 , 8XNT18 ,14XNT08 . 40'HQ container 4 x NT45 ,4 x NT18+2 x NT45,6xNT18+1xNT45 , 2 x NT60,2xNT80 Flat Board container NT130;
Overall dimension:	446015502685mm;	Place of Origin:	Jiangxi China;
Brand Name:	NANTE;	Machine Weight:	3200kg;
Rated Speed:	0-4km/h;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Max Digging Radius:	4825mm;	Bucket rotation:	173 °;
Maximum Digging Height:	4385mm;	Moving Type:	Crawler Excavator;
Maximum Digging Depth:	2825mm;	Ground Clearance:	255mm;
Engine Power:	19.2kw/2200rpm;	Supply Ability:	500 Set/Sets per Month NT28U 3.2Ton 0.1cbm Hydraulic Crawler Excavator;
Bucket capacity:	0.1m3;	Engine:	YANMER 3TNV88;
Bucket Digging Force:	17.8KN;

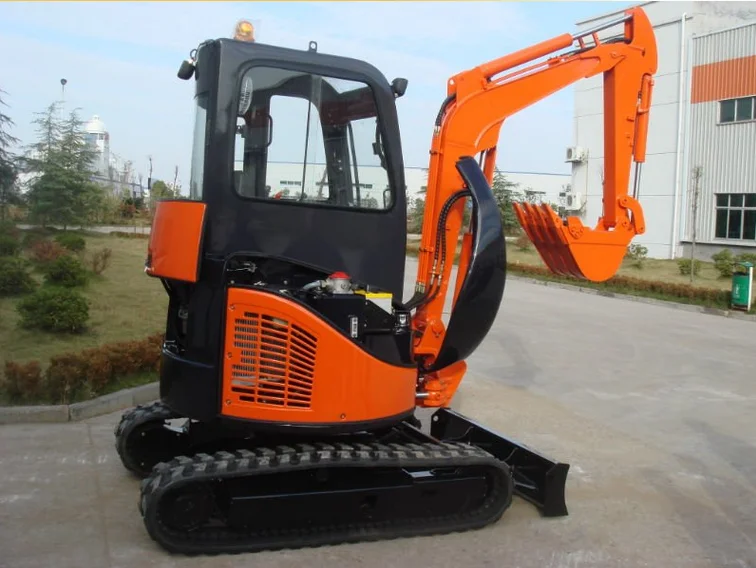

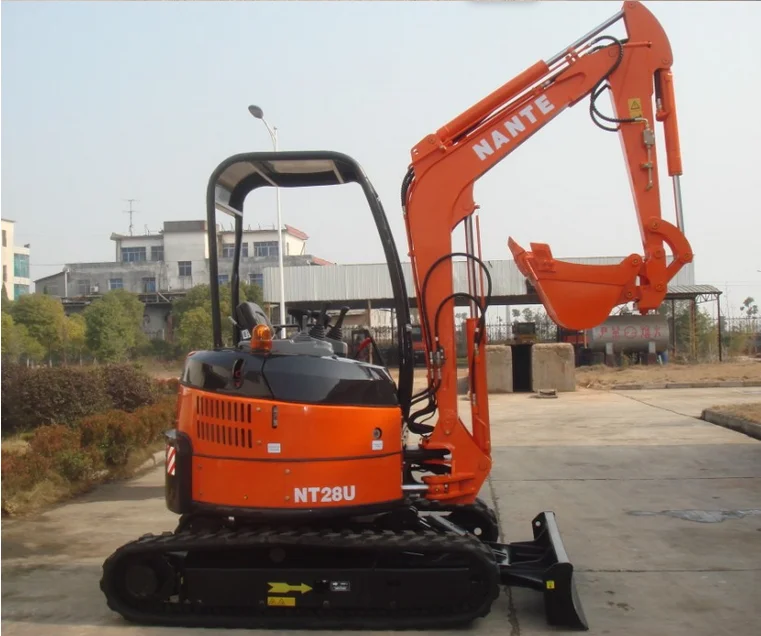

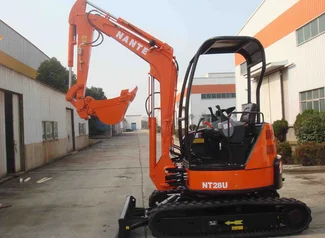

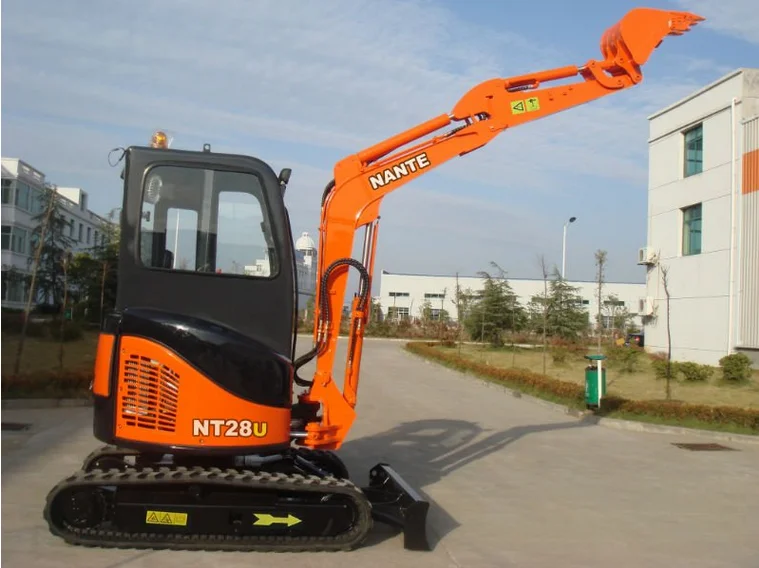

NT28U 3.2Ton 0.1cbm Hydraulic Crawler Excavator

Product Description

1.with CE mark
2.exported more than 2000 units to different countries
3.favourable price and best after-sale service

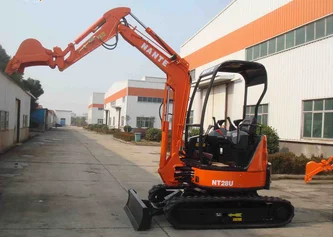

NT28U

1.FAVOURABLE APPEARANCE

2.WITH BOOM DEFLEXION AND QUICK-HITCH

3.HYDRAULIC PILOT OPERATION

4.SALES AND MARKETING SPARED ALL OVER THE WORLD

5.GOOD QUALITY AND STABLE PERFORMANCE

6.MAKING FULL USE OF ENGINE POWER TO LOWER ENERGY CONSUMPTION

Main Parameters

Item		Specifications
Bucket capacity	m3	0.1
Machine weight	kg	3200
Overall dimension	mm	446015502685
Bucket swing radius(Left)	mm	690
Bucket swing radius(Right)	mm	625
Engine model		YANMER 3TNV88
Rated engine power	kw/rpm	19.2/2200
Max.Torque	n.m/rpm	100-109/1320
Max.swing speed	rpm	10
Ground pressure	Kpa	29
Maximum dig radius	mm	4825
Dig radius at groundline	mm	4675
Maximum dig depth	mm	2740
Dump height	mm	3230
Bucket rotation	°	173
Arm digging force	kn	13.4
Bucket digging force	kn	17.8
Vertical straight wall dig depth	mm	2175
Track shoe width	mm	300
Upperstructure ground clearance	mm	575
Minimum ground clearance	mm	255
Center to center(idler to sprocket)	mm	1635
Track overall length	mm	2125

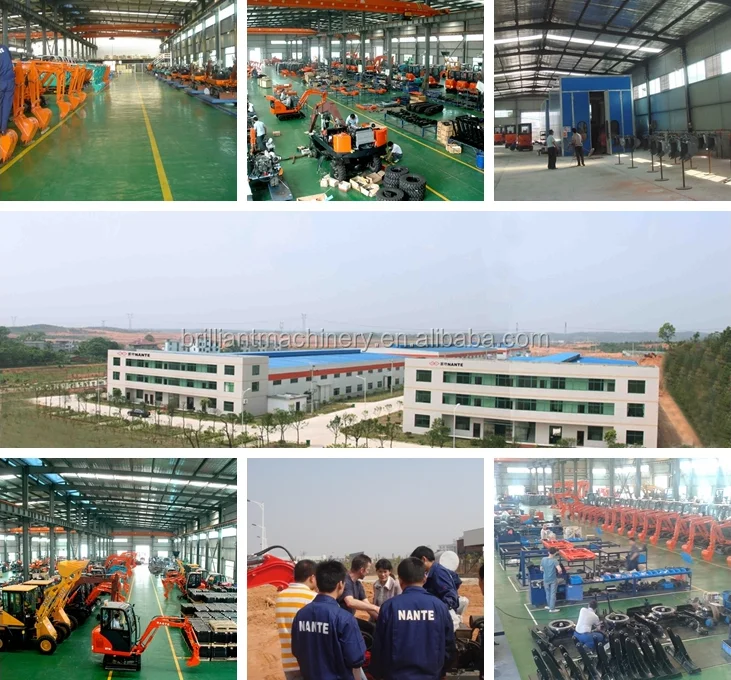

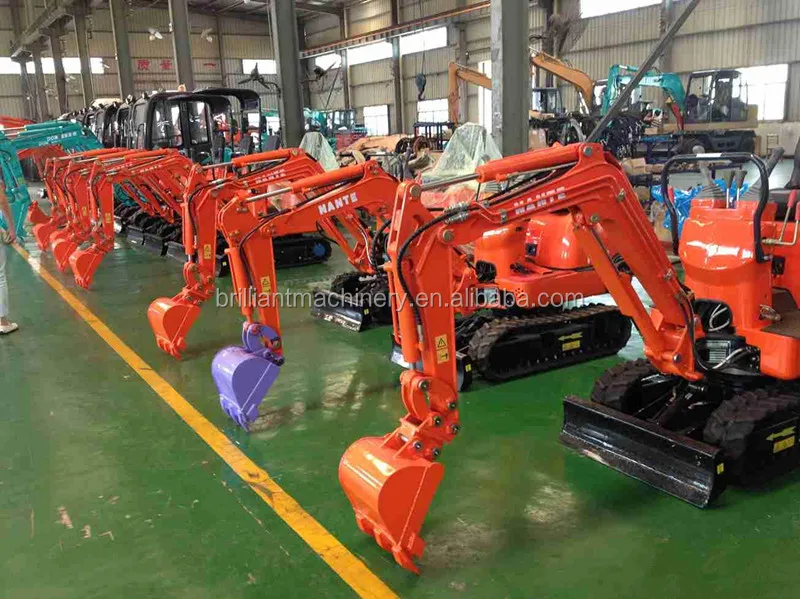

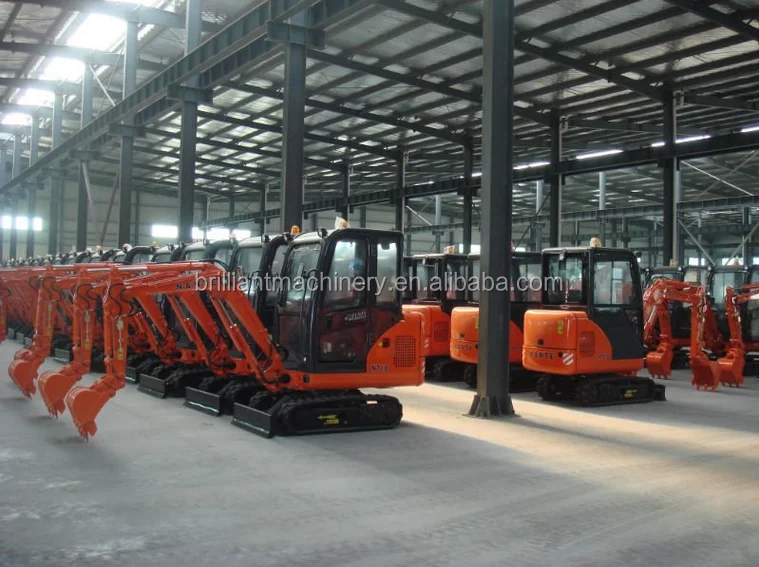

Factory Pictures

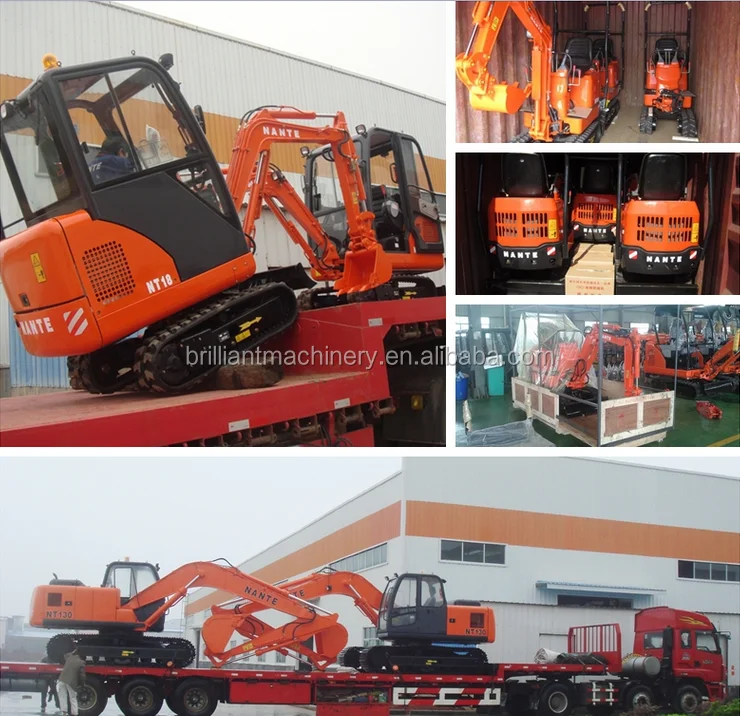

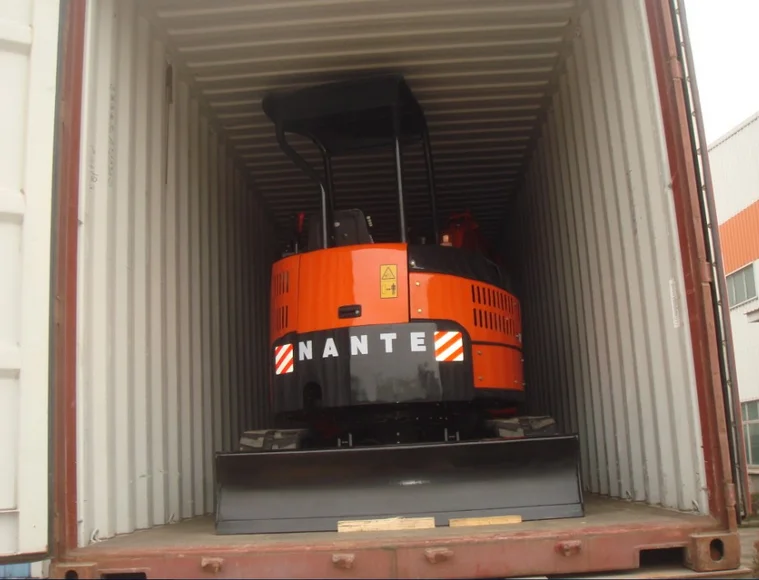

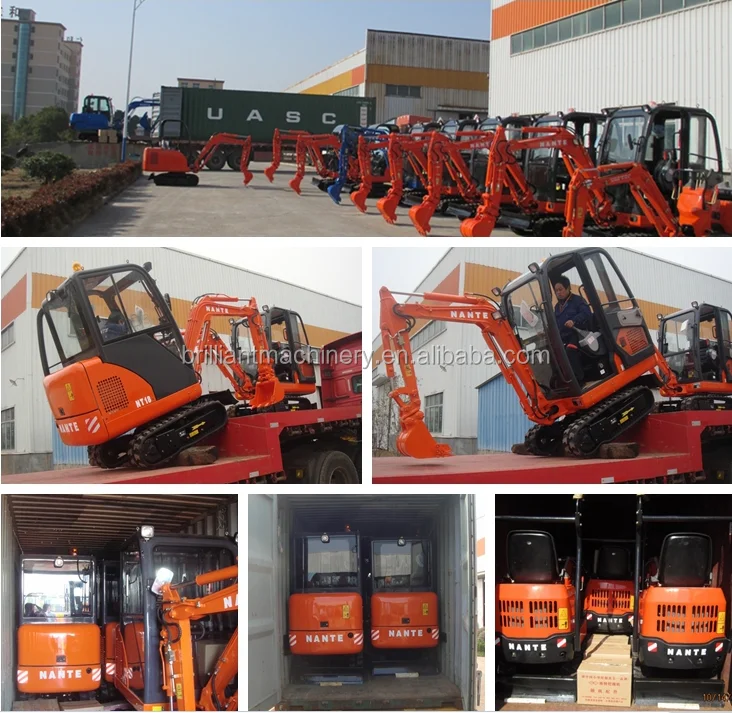

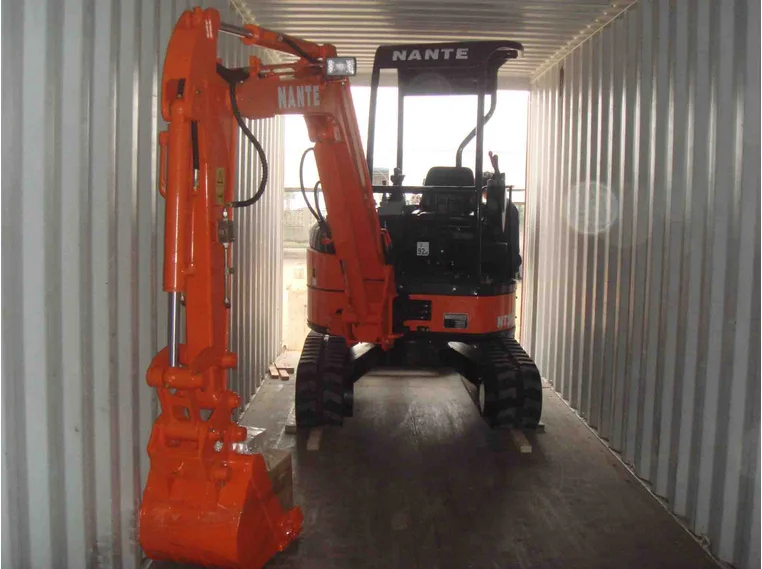

Packaging & Shipping

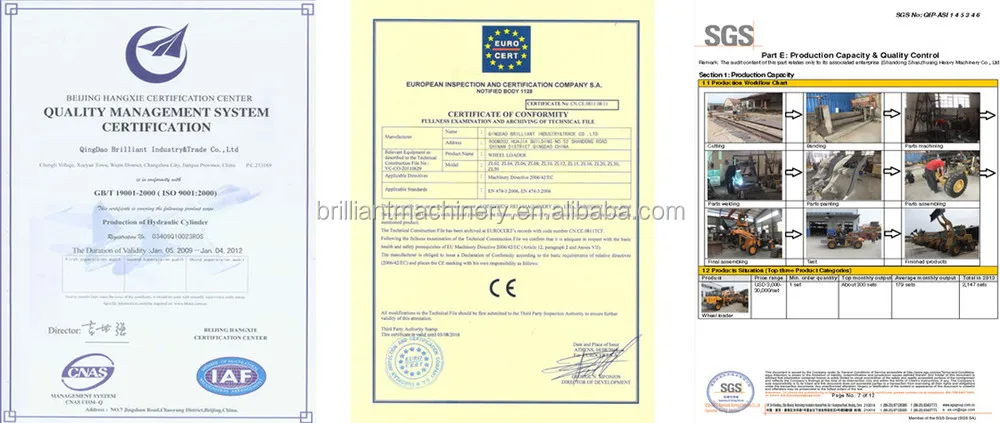

Company Information
