Life-long Maintenance CE Approved PE Foam Fruit Net Making Machine Net Machine

Supplier: Longkou Fushi Packing Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Robert Luan
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Packaging Detail:	Standard Package for Export;	Condition:	New;
Gas injection:	Butane pump;	Delivery time:	30 working days;
Warranty:	1 Year;	Products:	Foam net, rod, and profiles;
Output (kg/h):	25 - 35 kg/h;	Automatic Grade:	Automatic;
Applicable Industries:	Farms,Retail,Food Shop,Food & Beverage Shops;	Supply Ability:	200 Set/Sets per Year;
Cooling way:	by wind or water;	Weight:	2-3 ton;
Dimension(LWH):	20mx2.5mx2.2m;	Brand Name:	FS;
Screw diameter (mm):	75 mm;	Payment Terms:	L/C,T/T;
Voltage:	380V/50HZ;	Certification:	CE and ISO 9001;
Plastic Processed:	PE;	Port:	Qingdao;
Density:	20-30 kg/M3;	Application:	Foam Net;
Key Selling Points:	High Productivity;	Screw Design:	Single-screw;
Screw L/D:	55:1;	Power(W):	37kw;

Product Description

Product Application

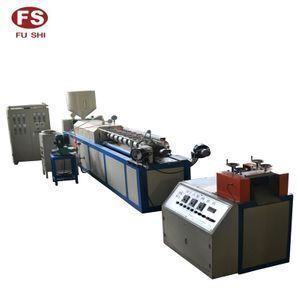

This EPE foam fruit net extrusion machine can produce EPE foam net, which is a new soft packing material. Due to its unique expanding reticulation structure and the elastic foamed net film, it is widely used in the package of glass product, precision instrument, various fruits, etc.

SPECIFICATIONS FOR EPE FOAM NET EXTRUDER MACHINE
TYPE	FS-FPW70	FS-FPW75
EXTRUDER	70/55	75/55
FOAMING RATE	20-40	20-40
SPEC. OF PRODUCT	10-40 MESH	10-40 MESH
OUTPUT	10-35KG/H	15-40KG/H
COOLING METHOD	COOLED BY AIR AND WATER
INSTALLED CAPACITY	25KW	28KW
DIMENSION (L×W×H)	11000×3000×1700MM	12000×3000×1800

Certifications

Detailed Images

Extruder
Screw diameter	φ75mm
Screw L/D	55:1
Output	15-40kg/H
Die dead and Mold	High-speed rotating die, power: 3kw, frequency control timing
Net type	Shrinkable (Programmable control)
Mold	customized

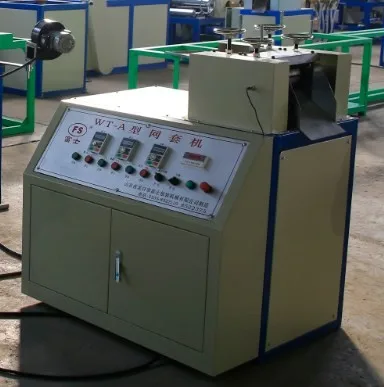

Cutter

Power 0.75KW

Frequency control timing

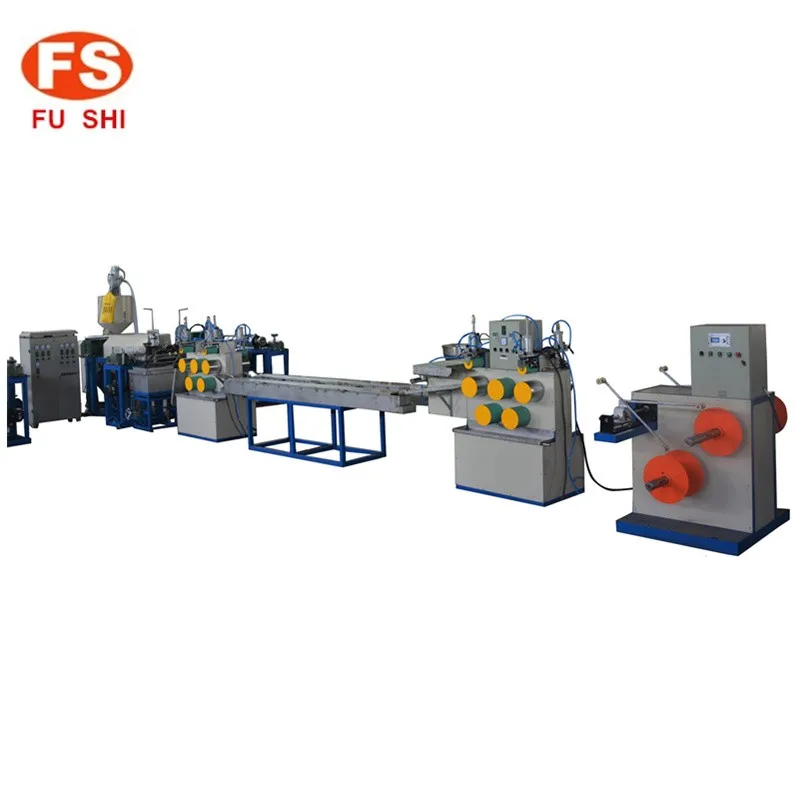

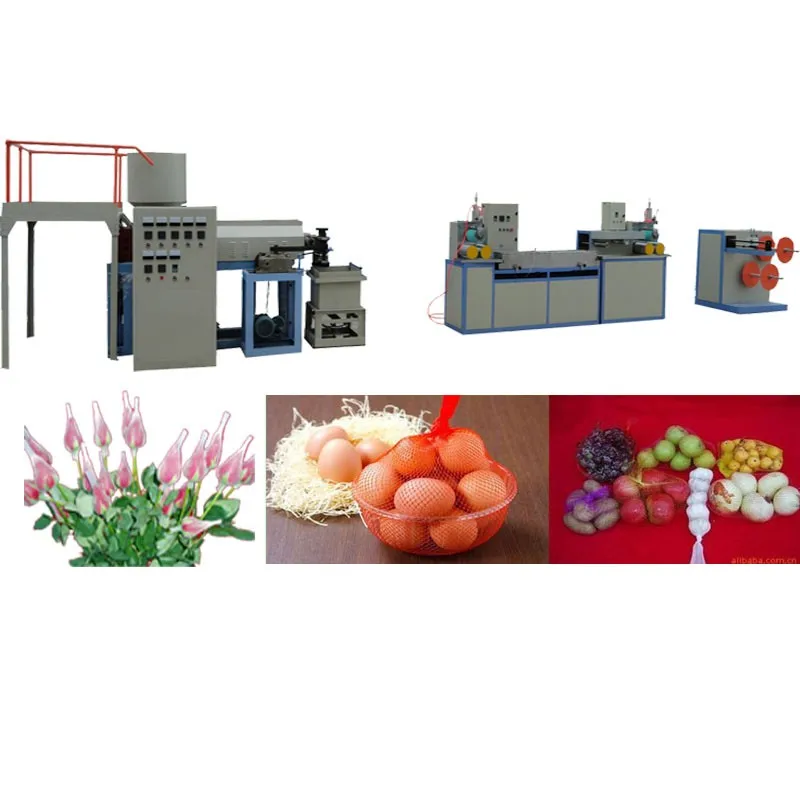

Knotless packing net machine

91.8% Response Rate

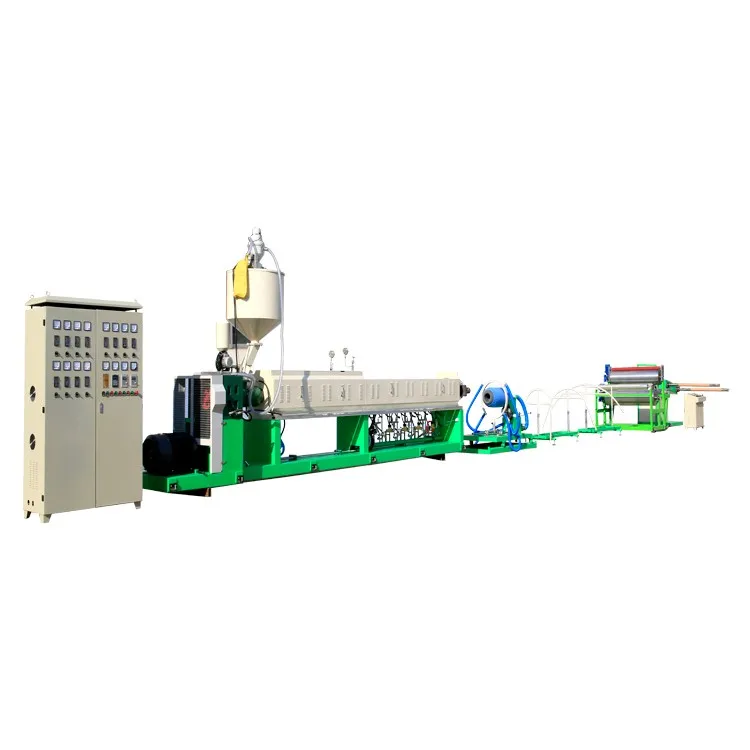

EPE foam sheet extruder machine

91.8% Response Rate

FAQ

Q1: Why I choose your company?

A: 1) We are one of the leading manufacturers of packing materials and related machinery .
2) Our company has made foam machine about 20 years with strong experience and advanced technique
3) Best Quality & Best Service with Competitive price. 1 year guarantee and lifetime maintenance
4) We have CE certificate and ISO 9001:2008
5) We have Professional technical team, and will supply 24 hours service

Q2: What should we prepare for PE Foam Net Making Machine
A:You should prepare raw material(LDPE), workshop, water line, electric line, gas, compress air(if you need I can help you buy air compressor) We would supply workshop layout drawing for you

Q3: Where is your factory located? How can I visit there?
A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai Penglai International Airport.When you confirm the flight No. and time, please tell me then we will pick you up at Airport

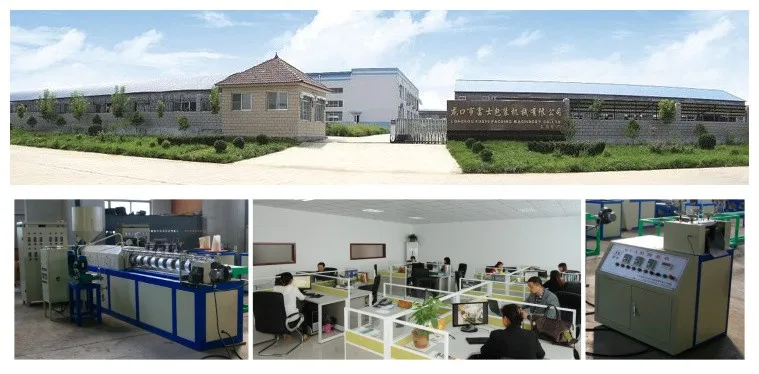

Our Company

Factory History

Founded in 1994, start with making PE foam net machine and fruit grading machine, during twenty five years of development, now has developed CE certified PS foam food container production line, Robot Arm Vacuum Forming Machine, EPE foam equipment, Fruits Cleaning, Waxing & Grading Machine, PE Cap Liner Foam Sheet Extrusion Line, PE/PS Recycling machine, totally more than 20 kinds of machines.

Traffic

We are located in Longkou City, Shandong Province, China. The traffic is very convenient, it is only 45mins far from Yantai Penglai International Airport by car, and 1.5h from Yantai High-speed rail station. And adjacent to the Qingdao seaport.

Fabricating Machinery

Fabricating machinery is the lifeblood of a production factory. We continues to introduce high-end processing equipment, performs near-perfect processing in accordance with its highly advantageous production process, and uses cutting-edge inspection equipment to perform rigorous inspections in all directions and in the entire process, ensuring product quality. The quality of reliability reflects the international level of the product.
