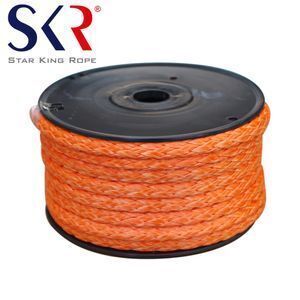

1---20mm Synthetic UHMWPE sling rope for heavy duty

Supplier: Shanghai Star King Rope Manufacture Co., Ltd.
Region: Shanghai, China
Contact: Mr. Leo Lv
Price: $0.50 / >=500 meters
Min. Order: 500 meters

Click here to contact

Product details

Certification:	ISO;	Melting point:	147℃;
Color:	Blue\Red\Yellow\Green\White\Gray\Orange\Black\Pink;	Material:	Dyneema; polyester;
Packaging Detail:	our rope according to your requirement can make any length and dia.or pack the rope as roll, hank, coil, reel, woven bag and so on. All the arrangements to listen to you;	Supply Ability:	100000 Meter/Meters per Week 1---20mm Synthetic UHMWPE Wire Rope For Lifting Sling;
Surface:	dip-coating I-Coats resin.;	Port:	Shanghai;
Diameter:	0.97kg/m;	Model Number:	SKR-sling;
Type:	Round Sling;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Construction:	12-plaited 1:1;	Brand Name:	SKR;
Advantage:	Sesistance to tangle up, Stability of tension;	Lifting Eye Type:	Folded Eye;
Sling Color:	Orange;	Shape:	Round;
Material:	UHMWPE;	Lifting Capacity:	More than 12 Tons;
Length:	customized;	Resistant:	UV and acidity and alkalinity;
Name:	UHMWPE wire sling rope;	Place of Origin:	Shanghai China;
Delivery Detail:	Shipped in 0 days after payment;

Product Description

1---20mm Synthetic UHMWPE Wire Rope For Lifting Sling

This is traditional synthetic sling rope, conform to the braided structure of high performance fiber. It can make to eye or ring typed rope, higher strength light weight,
Breaking strength Higher than that of the steel rope with the same diameter, Remaining strength is still over 90% after being steeped in acid and alkali for 200 hours; More light weight, which is 1/10 of that of the steel rope under the same diameter; Common load ductility is less than 2% and load ductility is less than 1%, Resistance to UV and keep 70% of remaining strength after being exposed outside for two years.

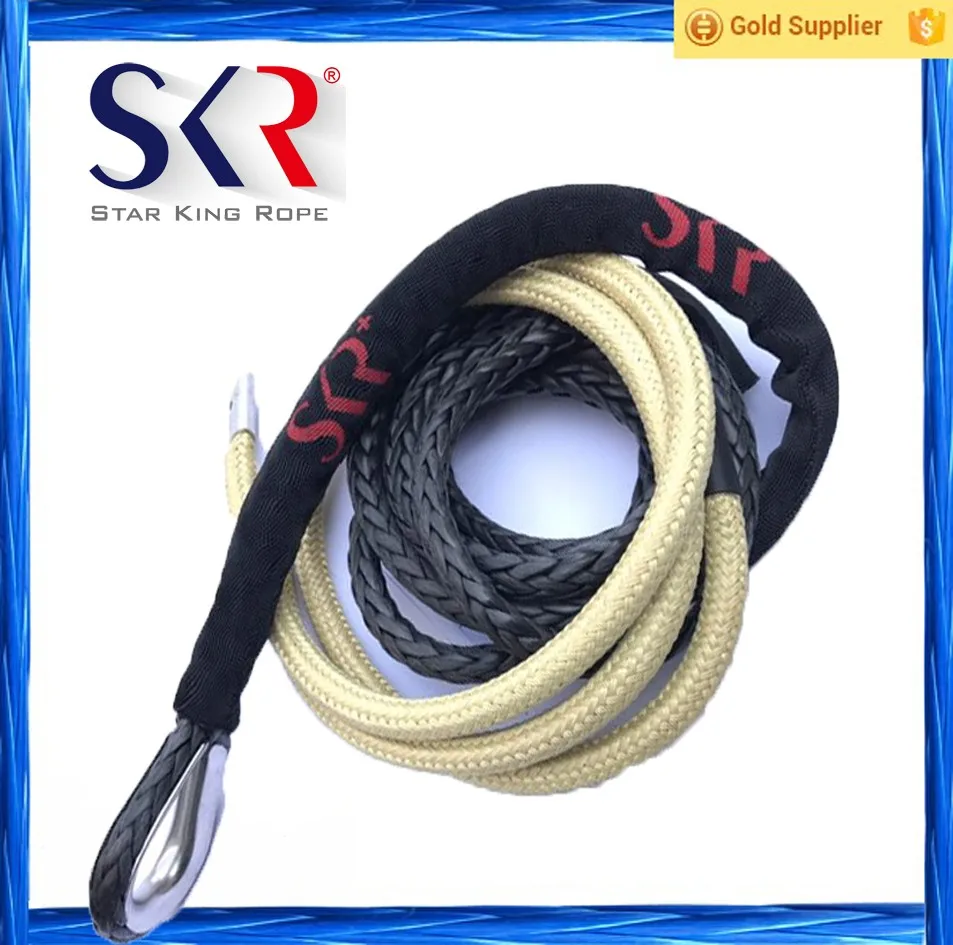

Detailed Images

Dia.		weight	Breaking strength
in	mm	g/m	lbs	kg
1/6”	4.2	13.8	4075	1850
3/16"	4.8	16	5500	2500
7/32"	5.5	20	6270	2850
15/64"	6	21.4	7150	3250
1/4"	6.3	26.8	8150	3700
17/64"	6.6	30	9800	4450
5/16"	8	42	13200	6000
11/32"	9	49.5	16000	7260
3/8"	9.5	55.2	17800	8100
25/64"	10	65.6	20800	9450
7/16"	11	81.7	25800	11720
15/32"	12	96.6	30000	13620
1/2"	13	113.8	34000	15500
9/16"	14	128.8	38500	17500
5/8"	16	151.8	47400	21500
3/4"	19	218	66500	30200
51/64"	20	262	79700	36200
7/8"	22	300	90300	41000
