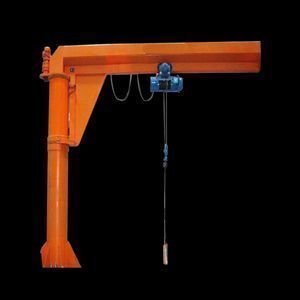

Medium duty floor fixed pillar jib tower crane
-
Supplier: Xinxiang Degong Machinery Co., Ltd. -
Region: Henan, China -
Contact: Mr Michael Li -
Price: $5300.00 /set -
Min. Order: 1 set
| Industry working voltage: | According to your demand; | GB/T19001-2000 idt ISO9001:2000: | pass; |
| Rated Loading Capacity: | 50T; | Weight overload protection device: | include; |
| Warranty: | 1 Year; | Rated Lifting Moment: | 50KN; |
| Control method: | Manual, Pendent line with press button; | Max. Lifting Height: | 8M; |
| Swing angle: | 180 or 270 or 360 degree rotation; | Span: | 6M; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant; | Main electrical parts: | Siemens brand; |
| Condition: | New; | Motor: | Nanjing Hoisting Machinery General Works; |
| Place of Origin: | Henan China; | Payment Terms: | L/C,T/T; |
| Painting color: | As request; | Application: | widely; |
| Brand Name: | DG; | After-sales Service Provided: | Free spare parts; |
| Feature: | Tower Crane; | Safty system: | Include; |
| Packaging Detail: | Electrical parts,electric hoist and parts packed by high quality plywood crate, beams packaged by plastic woven cloth.; | Feature: | Jib Crane; |
Medium duty floor fixed pillar jib tower crane
About DGcrane
jib tower crane
Xinxiang Degong Machinery Co., Ltd is located in Xinxiang City Henan Province, the biggest crane manufacturing base in China. Specialized in crane design and manufacturing, we have passed ISO 9001:2000, CE, SGS.
Up to now, we have exported cranes to Russia, Uzbekistan, Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Pure, Brazil, and Nigeria and etc.
- Many clients all over the world, even the best-known companies in the word, such as Italy IMF Group(the biggest complete set of foundry equipment supplier in the word), choose DGCRANE.
If you want to know more, please come to DG Crane
Brief description - jib tower crane
jib tower crane

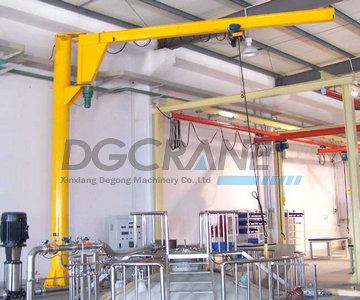

| Free Standing column Jib Crane These offer 180 Degree Rotation and they mount easily to any substantial structural steel building column, at any desired height. 1. Duty group: Class C (intermediate) 2. Lifting capacity: 0.5-16t 3. Valid radius: 4-5.5m 4. Slewing speed: 20 r/min 5. Hoisting speed: 8/0.8m/min 6.Circulate speed: 20 m/min |

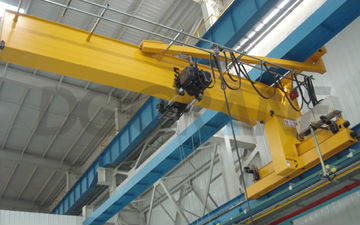

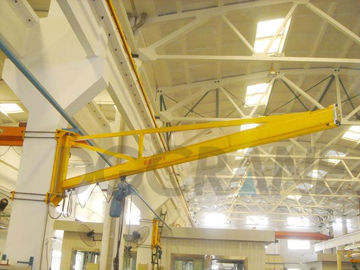

| Wall Mounted Jib Crane These mount easily to any substantial structural steel building column, at any desired height. The crane has a structural steel finish, in highly visible yellow enamel. 1. Duty group: Class C (intermediate) 2. Lifting capaciy: 0.25-16t 3. Lifting height: 5-6m 4. Valid radius: 4-5m 5. Lifting speed: 8/0.8m/min 6. Circulate speed: 20m/min |
| Wall Travelling Jib Crane These are useful where overhead cranes are not practical or feasible. They offer 360 degree floor coverage, allowing unrestricted placement of machinery and equipment. 1. Duty group: Class C (intermediate) 2. Lifting height: 6-30m 3.Max validity cantilever: 5-30m 4. Min validity cantilever:1.0-3.5m 5. Lifting capacity: 0.5-16t |
Appliacations - jib tower crane
jib tower crane
The most common applications for jibs are individual workstations; machine tools, welding/fabrication stations, and some small assembly stations.
They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.
Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts.
If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution.
Safety features - jib tower crane
jib tower crane
Safety is the most important issue for crane. To ensure the safety, the following safety devices are equiped in DGcranes.
Overload protection device
Top quality long time bearing polyurethane materials buffer
Crane traveling limit switch
Voltage lower protection function
Emergency stop system
Lifting height limit device
High quality components - jib tower crane
jib tower crane
To ensure the high quality of our cranes, we choose the high quality components as shown below:
Name & Model | Manufacturer | Remarks | |
| Electric control mechanism: | Electric hoist Trolley control system Crane traveling control system | Schneider or Siemens brand | International Famous brands |
Electric lifting hoist/trolley: | Lifting motor Traveling motor | Wuxi xindali brand | China famous material handling equipment production company |
Reducer | Jiangsu taixing reducer co.,ltd | China famous brand | |
Wire rope | Jiangsu Nantong Taili Wire rope | Top-500 private enterprise in China | |
Overload limiter | Henan Hengda or Changzhou Changxin | Famous trademark of China | |
Stopper device Hook group | Xinxiang Degong Machinery Co., Ltd. | China famous brand | |
| Crane traveling mechanism: | Traveling Motor | Wuxi xindali brand | China famous material handling equipment production company |
Reducer | Jiangsu taixing reducer co.,ltd | Professional reducer supplier | |
Wheel | Xinxiang Degong Machinery Co., Ltd. | China famous brand | |
Buffer | Liaoning Qingyuan or Shanxi Linfen | Top-500 private enterprise in China | |
| Steel structure: | Main Girder End truck Service platform Crane Travel Rail | Anyang Steel or Jinan Steel | One of the most influential enterprise in China |
Crane Travel Rail | Xinxiang Degong Machinery Co., Ltd. | Hi-tech enterprise in China Top 100 of Chinese Machinery industry China famous brand | |

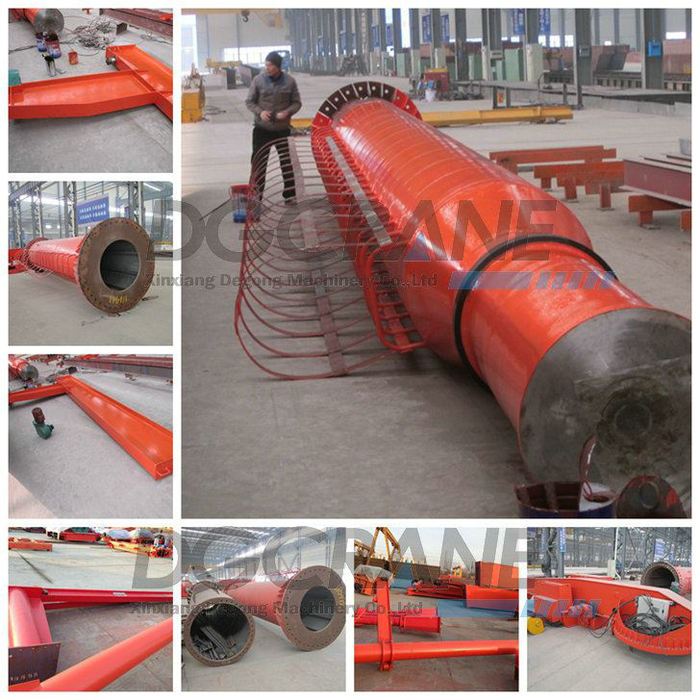

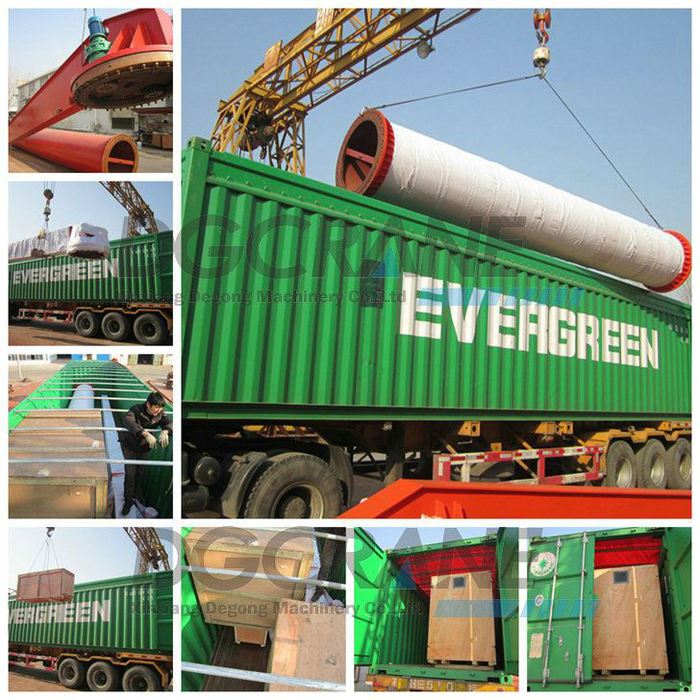

Production and delivery - jib tower crane
jib tower crane
Customers - jib tower crane
jib tower crane
Certificates Of DGcrane
jib tower crane
| CE NO. T120112/HXK032 Expired Date: 2049/12/31 | CE NO. T120112/HXK033 Expired Date: 2049/12/31 | ISO9001-2008 NO. CN-CQM11Q11755ROM Expired Date: 2016/6/10 | Manufacture license of special equipment PRC Expired Date: 2014/5/4 |
After-sale services
jib tower crane
You can use our wheels at ease, the best after-sales service will be offered from Dgcrane.
One year warranty.
Providing free quick-wear part.
Low charge for continue maintenance when warranty is expired.
Exclusive engineer support at any time.
We can provide free training to end-users.
Any enquiry, reply in 24 hours or less !
-
