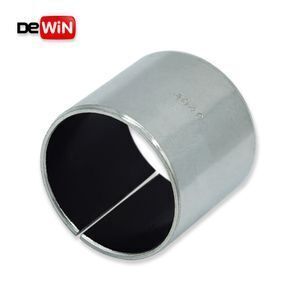

Supply PTFE hardened wrapped split DU Steel insert Bushing
-
Supplier: Shaanxi Dewin Technology Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Winnie Zhang -
Price: $0.06 / >=1000 pieces -
Min. Order: 1000 pieces
| Max Sliding Speed: | (Dry)2.5 m/s, (Oil)5.0 m/s; | Material: | Steel PTFE; |
| Type: | Sleeve; | Item Name: | PTFE Steel bushing; |
| Supply Ability: | 1000000 Piece/Pieces per Month PTFE Steel Bushing; | Other Series: | Pom, Dp4, Graphite, Brass; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; | Place of Origin: | Zhejiang China; |
| Material: | Steel+Sintered Copper +PTFE; | Model Number: | PAP 2520; |
| Port: | ShangHai, NingBo; | Load Capacity(N/mm2): | (Dynamic)250 , (Static)140; |
| Lubricating: | Dry, Self lubrication; | Brand Name: | DEWIN; |
| Bush Types: | Sleeve, Flange, Washer, Strip; | Finishing: | Tin or Copper Plating; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Size: | Customized Size; |
| Features: | Low Resistance, Long life; | Packaging Detail: | Inner Packing: 10 Pcs per Plastic Film Roller. Outer Packing: 100-500 Pcs per Cardboard Box. Shipment Packing: 20 Cartons per Wooden Case or Pallet.; |
| Product Name | PTFE Steel Bushing |
| Max Load Capacity | Static load 250N/mm2 ; Dynamic load 140N/mm2 |
| Max Load Speed | Dry friction 2.5m/s ; Oil lubrication 5.0m/s |
| Max PV Value Limit | Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s |
| Friction Coefficient | Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07 |
| Work Temperature | -195℃~+280℃ |
| Thermal Conductivity | 42w/m k |
| Production Process | Material cutting~Bronze sintering~PTFE sintering~Sizing~Coiling~Surface finish~Packing |

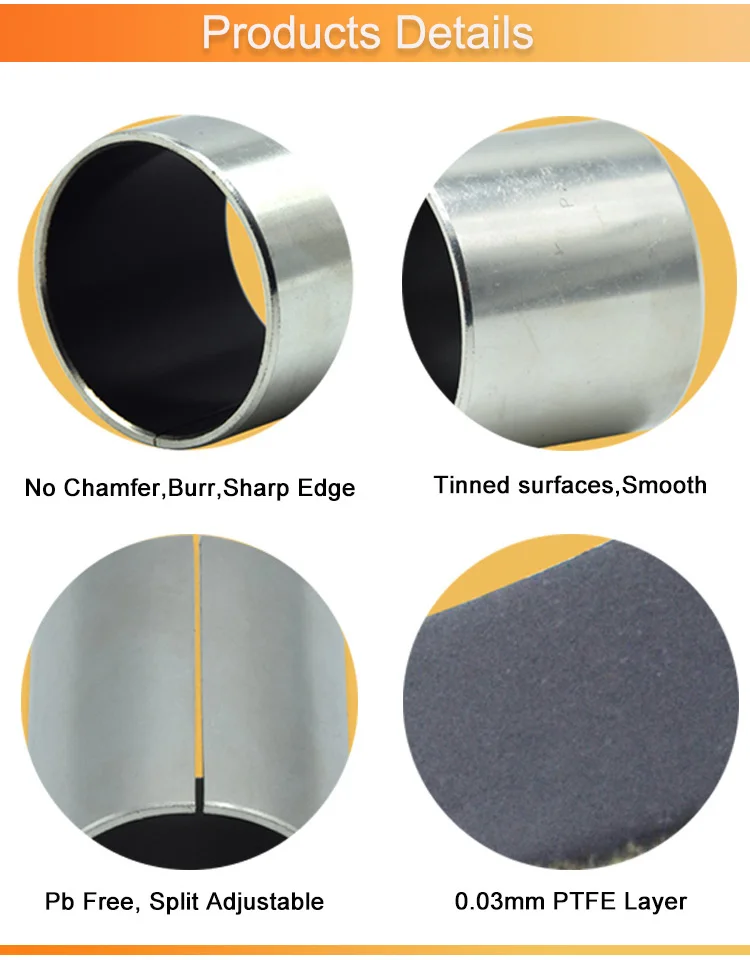

| Application Feature | Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free |
General specification and price reference table:
| Product Model | ID(mm) | OD(mm) | Length(mm) | Unit Weight(g) | Unit Price($) |
| PAP1012 | 10 | 12 | 12 | 3.2 | 0.04 |
| PAP1820 | 18 | 20 | 20 | 8.8
| 0.11 |
| PAP3020 | 30 | 34 | 20 | 30.0 | 0.18 |
| PAP2530 | 25 | 28 | 30 | 31.0 | 0.22 |
| PAP4030 | 40 | 44 | 30 | 58.2 | 0.35 |
| PAP5040 | 50 | 55 | 40 | 121.3 | 0.58 |
| PAP6550 | 65 | 70 | 50 | 193.0 | 0.92 |
| PAP80100 | 80 | 85 | 100 | 468.6 | 2.30 |
| PAP100115 | 100 | 105 | 115 | 665.6 | 3.20 |
Client Notes: The Unit Price may flucluate up and down, the Final Price depends on the Order Amount, All Size can be Customized.
Inner Packaging: Anti-rust plastic film ; Vacuum plastic bags.
Outer Packaging: Hard carton; Wooden case ; Wood pallet.
Shipping Term: By express; By air; By land; By sea.
Shaanxi Dewin Technology Co., Ltd was founded in March 2011. We are dedicated to manufacture and provide high quality and high performance plain bearing and Powder Metallurgy Sintered metal components.Under the control of ISO9001 and TS16949,with the principle of “Preventation” and“continuous improvement”, we promise to give you real and timely feedback, help you to get qualified products, integrate and optimize your supply chain.
FAQ
1. What are the differetiates between Dewin with other supplier?
Profession and reliability.
Our advantages are multiple available technologies, strong quality assurance, and good at project & supply chain management.
2. Is there a cost for Dewin service?
There is no additional cost above the product and tooling price except third party service.
3. Will I be able to visit the supplier myself?
First, all of our supply partner has undergone a series of screening and audit process, we can provide complete audit report to you.
Secondly, if you want to perform your own independent supplier audit procedure, our representitives can accompany and assit with you to achieve it.
4. How to deal with the quality problem?
a. With our partners we perform APQP at an early stage in each project.
b. Our factory must fully understand the quality concerns from customers and implement product & process quality requirements.

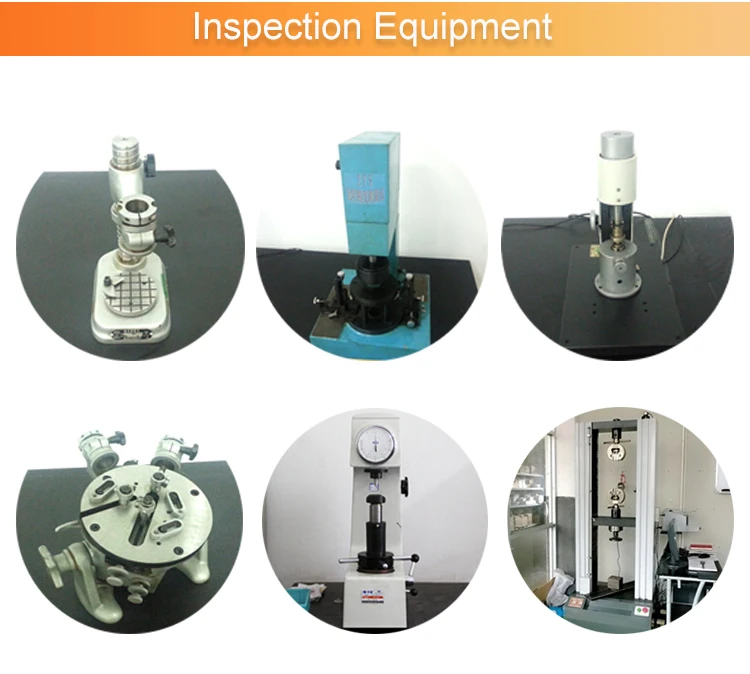

c. Our quality professionals who perform patrol inspection in our factories.
We perform final inspection before the goods are packed.
d. We have 3rd party inspectors who perform final audit checks on the packed goods prior to dispatch from China.
5. Can you take responsibility for me?
Of course, I’m happy to help you! But I just take responsibility for my products.
Please offer a test report, if it was our fault, absolutely we can make a compensation for you, my friend!
6. Do you like to serve the client only with small orders?
We enjoy to grow up together with all our clients whatever big or small.
You will become bigger and bigger to be with us.
-
