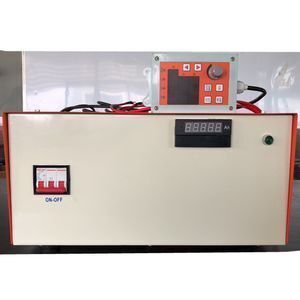

Ramp rectifier for anodizing 100A-100V with RS485
- 1000.00 set
| Dimensions: | 0.78*0.56*0.4; | Payment Terms: | T/T; |
| Drive: | IGBT; | Output voltage: | 0-100v; |
| Mean On-State Current: | customizable; | Supply Ability: | 100 Set/Sets per Month Anodizing rectifier; |
| Peak Non-Repetitive Reverse Voltage: | customizable; | Type: | Bridge Rectifier; |
| Application: | Anodizing; | Current: | 0-100A; |
| Model Number: | ZY-; | Package Type: | Other; |
| Product name: | Ramp Anodizing Rectifier; | Place of Origin: | Zhejiang China; |
| Warranty: | 12monts; | Port: | any port; |
| Certificate: | CE; | Packaging Detail: | wodden case; |
| Peak Repetitive Reverse Voltage: | customizable; | Brand Name: | Pawo; |
Ramp rectifier for anodizing 100A-100V with RS485:
Product Features
1. It is designe according to a chrome planting process.
It is designed to achrome plating proces with complete protction functins. The impulse currnt does no damage to the devices. t has the multi-step power supply function. The bondng force between te plating coat and body is strong.
2. Low ripple cosfficient.
It is able to increase the depositon rate of the plating coat and enhance the current strength for blind spots so that every part of a plated object can hanvea uniform plating coat and a film bond with te base layer.
3. It is able to meet requirement of the chrome plating process.
With microcomputer technology, it has complete functins and accurate time keeping capabilities to monitor and control the plating time and plating thickness effectively so as to improve plating quality and production effeciency.
4. Complete control functions.
Soft start, multi-step power supply and timing control.
5. Expandable functions.
It has intelligent touch keys, a big screen backlight LCD display, anda Chinese step-type menu.
Communication fuction.
Current calculation function (ampere hour).
Picture show:

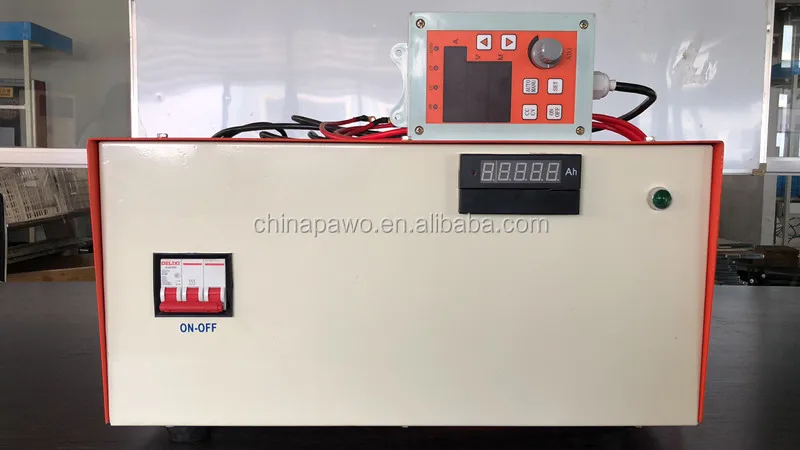

Panel control with Ampere hour meter:

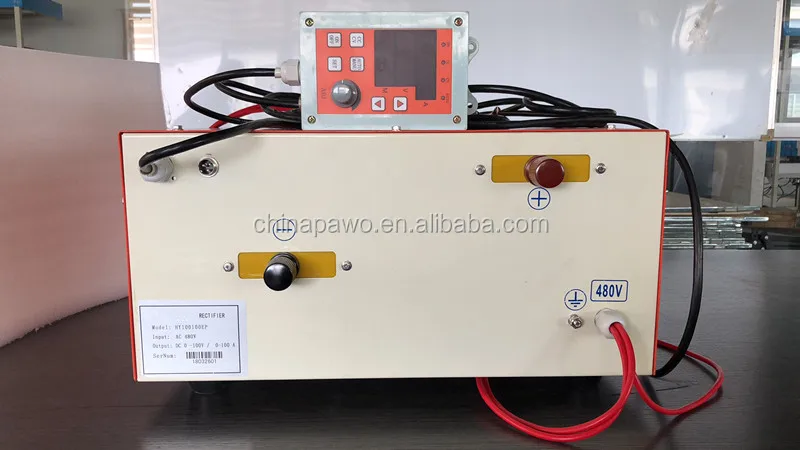

Back of rectifier :

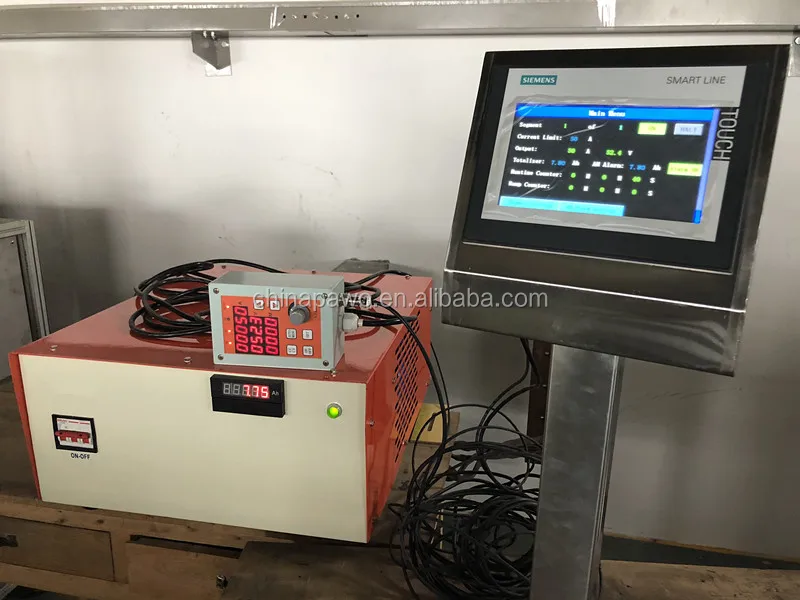

RS485 control with Touch screen for ramp time design:

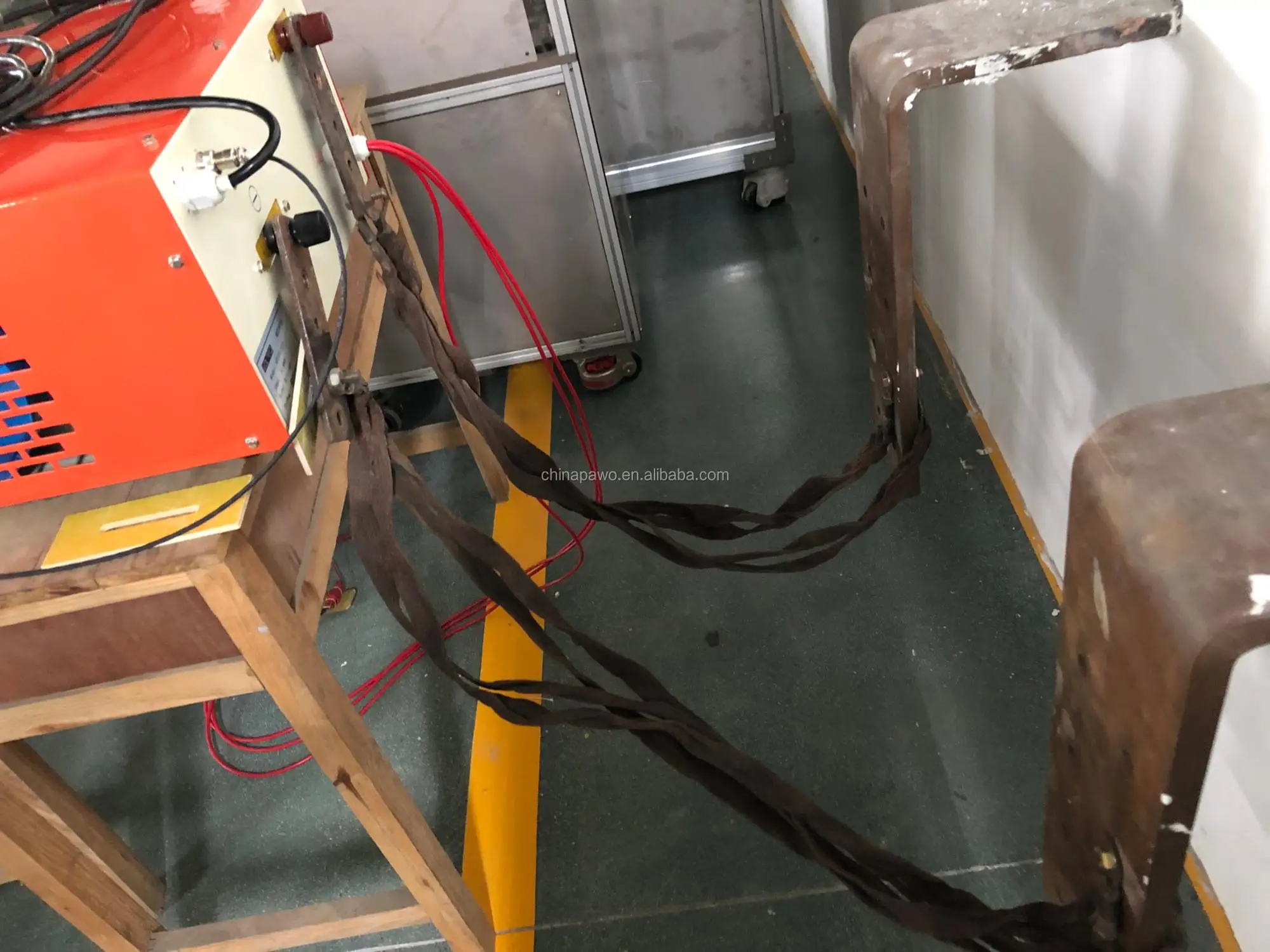

Rectifier connect the Tank :
