300 kg 18m Self-propelled Towable Articulated Electric Boom Lift for Construction Works

Supplier: Guangzhou Sunrise Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Lina Zou
Price: $15000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Weight:	10047kg;	Wheels:	PU/Nylon;
Lift Mechanism:	Articulated Lift;	Load capacity:	300 KG;
Warranty:	5 years;	Application:	Aerial Construction Work;
Hoisting Speed:	60mm/s;	Supply Ability:	20 Piece/Pieces per Week boom lift;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Construction works ;	Power:	4kw;
Dimension(LWH):	8050x2450x2440mm;	Min. Lifting Height:	1.1m;
Overall Dimensions:	130014003200mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Table Size:	CUSTOMIZED SIZE;	Lift Drive / Actuation:	Electric Motor;
Certification:	ISO9001:2008 CE Certificate;	Port:	Guangzhou;
Voltage:	220V/380V/415V;	Packaging Detail:	1pcs/40ft;
Place of Origin:	Guangdong China;	Platform:	Anti-skid;
Color:	Red Blue;	After-sales Service Provided:	Free spare parts;
Lifting speed:	3-6m/min;	Max Lifting Height:	18M;
Brand Name:	Sunrise;

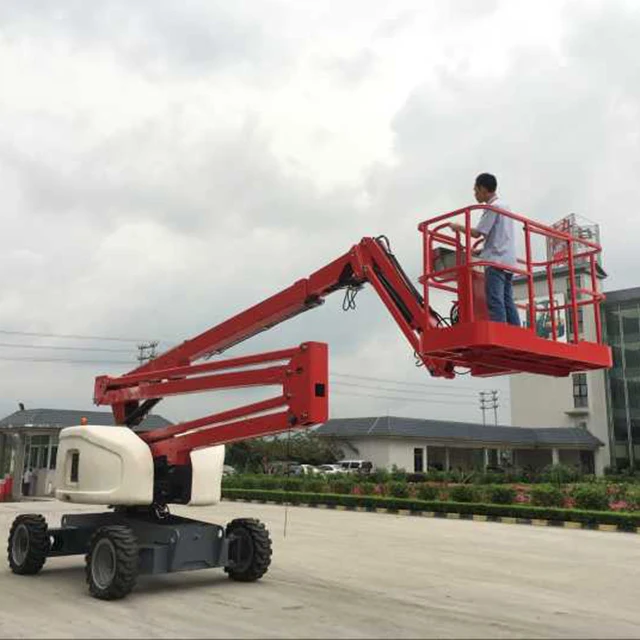

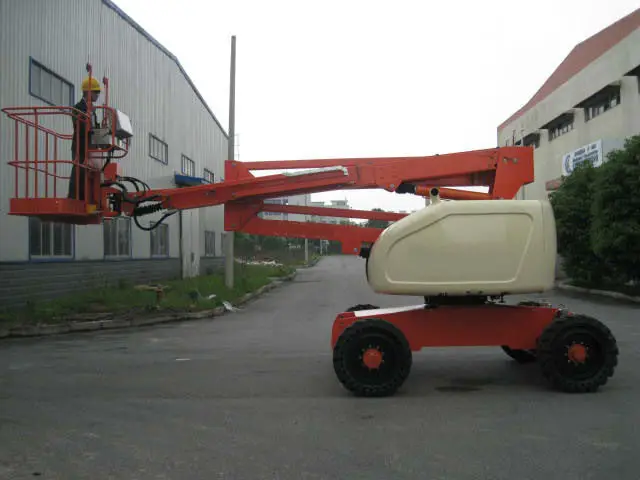

300 kg 18m Self-propelled Towable Articulated Electric Boom Lift for Construction Works

Product Description

Features:

1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 26m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.

Parameters
Model	SRZZ18		SRZZ18Z
MEASUREMENTS	Metric system	British System	Metric system	British System
Lift capacity	227kg	500lbs	227kg	500lbs
Platform rotation	180°		180°
Turntable swing	360°continuous		360°continuous
Turntable tailswing	0		0
Travel speed - stowed	8km/h	5mph	8km/h	5mph
Travel speed -raised or extended	5.6km/h	3.5mph	5.6km/h	3.5mph
Gradeability -stowed (2WD)	30%		30%
Gradeability -stowed (4WD)	45%		45%
Turning radius - inside	3.48m	11ft5in	3.48m	11ft5in
Turning radius - outside e	5.38m	17ft8in	5.38m	17ft8in
System voltage	12V DC Proportional		12V DC Proportional
Solid tires	355/55 D625		355/55 D625
Power Configuration
POWER
Power source	Cummins B3.3NA-C60 4 60HP (45kw)
Power source	Perkins 400 61hp (45.5kw)
Auxiliary power unit	12V DC		12V DC
Hydraulic oil tank capacity	115.8L	30.6gal	115.8L	30.6gal
Fuel tank capacity	113.6L	30gal	113.6L	30gal
Weight
WEIGHT
4WD	10047kg	22150lbs	10455kg	23050lbs
Applicable standard: EN280, JG/T5101, Q/ADZV001-2008
