20L Decapper/Barrel Washer

Supplier: Zhangjiagang Mars Packing Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Eli Yao
Price: $700.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Weight:	110kg;	Processing Types:	Barrel;
Place of Origin:	Jiangsu China;	After-sales Service Provided:	Video technical support;
Supply Ability:	300 Set/Sets per Year;	Condition:	New;
Processing:	Washer;	Port:	Shangahi;
Type:	Decapper/Barrel Washer;	Voltage:	380V;
Applicable Industries:	Food & Beverage Factory,Food & Beverage Shops;	Packaging Detail:	Wooden case;
Certification:	CE;	Warranty:	2 Years;
Brand Name:	Mars;	Processing:	Washer;
After-sales Service Provided:	Engineers available to service machinery overseas;	Dimension(LWH):	8008001200mm;
Power(W):	1.1KW;	Payment Terms:	T/T,Western Union;

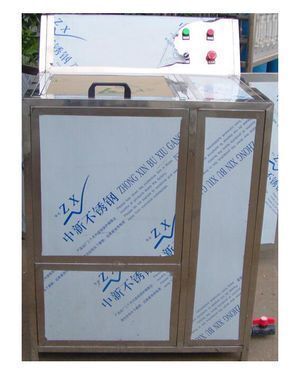

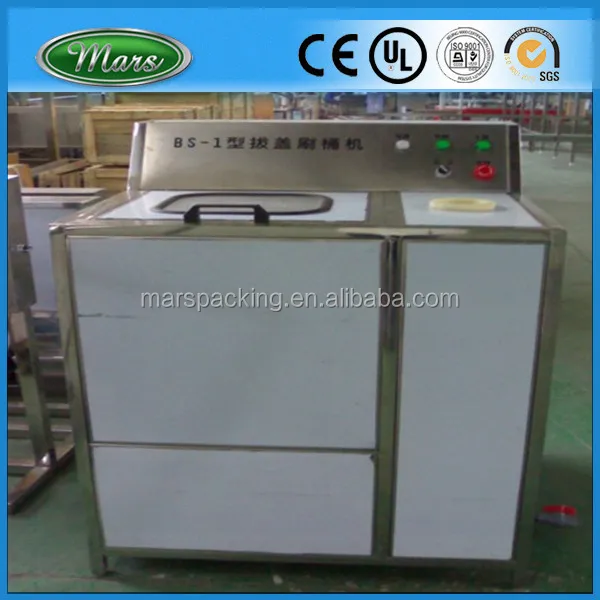

20L Decapper/Barrel Washer

It is suitable for cap removing and pre-washing of 3 gallon, 5 gallon recovery barrels. The machine is made of stainless steel, resistant to corrosion and easy to wash. Besides, its operation is simple and performance is stable.

After the machine connected with power supply and air supply, manually upend the barrel in the de-capping head and step on the pedal by foot, under the action of de-capping cylinder, the caps are pulled off and enters into the recovery tank through the slideway. With this operation, the caps almost suffers no damage and could be used again.

Open the cover of barrel-washing machine, set the barrel which caps are pulled on middle brush of the machine with barrel mouth down and close the cover, then water pump starts working and water enters into the machine, the brush rotates clockwise and the barrel does the same with the driving force of the brush; during the rotation, external brush, bottom brush and side brush scrub the outside of the barrel while internal brush scrubs the inside, in this way, the barrel is completely cleaned and its pre-washing finish.

Main Technical Parameters

No.	Item.	Specification
1	Production speed	200-300B/H
2	Brush	8pcs (external and internal, top and bottom)
3	Spec. of barrel	5 gallon (Ø270×490×56)
4	Lid-pulling head	1 PCS
5	Water pump power	0.37Kw, stainless steel pump
6	Compressed air pressure	0.6MPa
7	Rated voltage	3Phase, 380V, 50HZ
8	Brush motor power	0.75Kw
9	Overall dimensions	800 × 800 ×1200mm
10	Weight	110Kg
