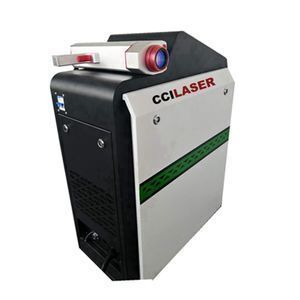

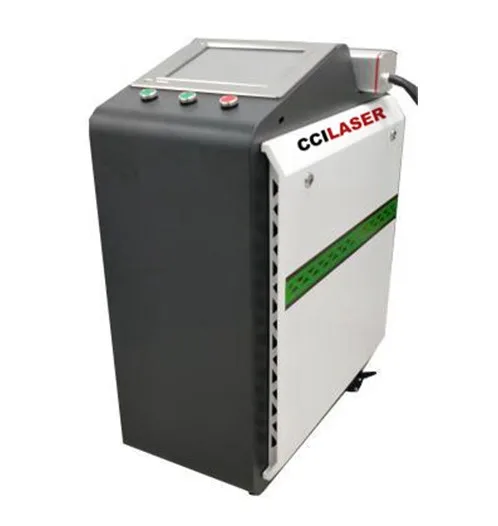

LC-200S 60W 100w 200W 500W metal surface rust removal laser cleaning machine 1000W for paint removal

Supplier: Shandong CCI Co., Ltd.
Region: Shandong, China
Contact: Mr Freeman Liang
Price: $57540.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	CCI;	Material:	Metal / Coil;
Selling Units:	Single item;	Whole Machine Power Rate:	600W;
Delivery Detail:	0 days after payment;	Dimension(LWH):	760mmX780X790mm;
Wavelength:	1064nm;	Certification:	CE;
Single package size:	900X900X1100 cm;	Cleaning Process:	Laser;
Scanning Width:	10-80mm;	Condition:	New;
Place of Origin:	Shandong China (Mainland);	Use:	Deflashing;
Cooling Water:	Deionized water;	Overall Dimension:	760mmX780X790mm;
Power(W):	200W;	After-sales Service Provided:	Video technical support;
Machine Type:	Other;	Laser Power:	200W;
Package Type:	Wooden pallet or Wooden Box. All the machine are covered by plastic film and put into the area which is protected by the pearl cotton.;	Package Preview:	https://sc01.alicdn.com/kf/HLB1X..MaEvrK1RjSspcq6zzSXXaC.jpg_640x640.jpg;
Power Supply:	220V 50/60Hz;	Weight:	100Kg;
Product name:	metal surface rust removal laser cleaning machine 1000W;	Pulse Frequency:	20-200Khz;
Single gross weight:	150 KG;	Cleaning Type:	Manual;
Warranty:	2 Years;	Fuel:	Fiber Laser;

Product Description

60W 100w 200W 500W metal surface rust removal laser cleaning machine 1000W for paint removal

Machine Feature:
Laser cleaning equipment is a high-tech new generation product for surface cleaning.
Fast and concentrated pulse with a high power impact and vaporizes the residue on the surface;
The laser pulse is very suitable for the removal of organic substances, such as dirt remaining on the tire mold;
Short-term impact does not warm the metal surface and does not damage the substrate.

Technical Advantages:
Clean or remove the surface paint layer quickly and smoothly.
Accurate cleaning and paint removal effects;
No damage to the substrate;
Low cost;
Investment recovery is fast;
No need to sand grit or chemical;
The equipment does not need to be set up.

SPECIFICATIONS FOR FIBER LASER CLEANING MACHINE
Laser	Laser Medium		Fiber
	Laser Power Rate	W	50/100/200/500/1000
	Laser Wavelength	Nm	1064
Cleaning Parameters	Cleaning Width	Mm	10-80
	Cleaning Effective	m3/h	5
	Cleaning Rate Adjusting Scope	%	10-100
Power Supply	Power Voltage	V	220 (±10%)
	Frequency	Hz	50/60
	Whole Power Rate	W	800

60W 100w 200W 500W metal surface rust removal laser cleaning machine 1000W for paint removal

Application Scope:

Metal surface derusting, Surface paint removal treatment, Surface oil, stains, dirt cleaning, Surface coating removal, Welding surface / spray surface pretreatment, Stone surface dust and attachment removal, Rubber mold residue cleaning and so on.

Application Field:

Marine industry, auto parts, rubber molds, high-end machine tools, tire molds, rails, environmental protection industry and other industries.

Marine industry

Auto Parts

Rails

High-end Machine Tools

Tire Molds

Environmental Protection Field

Certifications

Detailed Images

Name: Laser Device

Brand: RAYCUS
Advantage: Advanced solid-state laser, stable light source, high efficiency and long lifetime.
Purpose: It is the generator of the laser source.

Name: Galvanometer Scanner

Brand: SINO-GALVO
Advantage: High quality galvanometer, maintenance-free operation, less laser loss, good stability, and stable output laser beam.
Purpose: The galvanometer is an important factor in determining the marking quality.

Name: Field Lens

Brand: Wavelength
Advantage: Adopt German new materials, precision forming, new technology
Beam without attenuation and amplification.
Purpose: It can change mark imaging beam position

Name: Switch Power

Brand: MEAN WELL

Advantage: It is steady and perfect in the electric work
Purpose: It can keep the laser device and main electric parts safety.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	397.5(L) * 125 (W) *174 (D)
Weight	2Kg

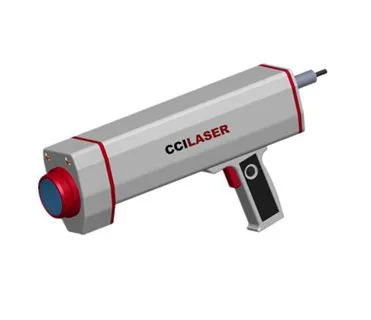

Packaging Details	We put the cleaning head in the package of machine frame.

Packaging
Size	718(L) * 509 (W) * 852 (D)
Weight	100Kg
Packaging Details	It is small in size, suitable for harsh environments, friendly interface. Passed the EU CE certification.

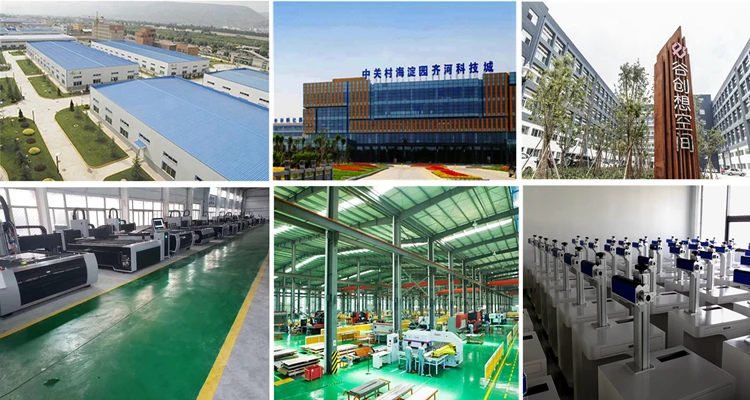

Our Company

CCI Group creates and develops the high quality fiber laser cutting machines, laser cutting and engraving machines, laser marking machines and window Glass Machines with 25 years hard working. Our aim is the best manufacturer of laser machines from China.

Attaching much importance to quality and taking management and technology development as the impetus, CCI Group tacks the culture of operation excellence, and has obtained ISO9001-2000 edition and CE Qualification successively. So far CCI Group has more than thirty offices around China, and has built many foreign office, such as in USA, Kazakstan, India, Vietnam etc.

Now CCI Group has become the all-around equipment manufacturer, producing more than one hundred kinds products, and is mainly engaged in four series: Fiber Laser Cutting Machines, Laser Cutting and Engraving Machines, Laser Marking Machines, laser cleaning machine and Window Glass Aluminum Machines.

We would like to expand our cordial cooperation with you for better future.

FAQ

CCI is the best choice you can choose.
A. Question: What kind of our company is CCI?
Re: CCI is laser cutting machines and laser marking machine manufacturing expert since year 1991. We passed CE european standard on year 2002.
B. Question: How is 60W 100w 200W 500W metal surface rust removal laser cleaning machine 1000W for paint removal guarantee?
Re: b1. 60W 100w 200W 500W metal surface rust removal laser cleaning machine 1000W for paint removal warrenty period is 24 months after BL time;
b2.12 hours technical support feedback;
b3. Own machining factory, which can control the spare parts quality at high quality;
b4. Own accessories warehouse and user can enjoy the agent price.
C.Question: How is delivery time?
Re: We can delivery the machines within 7 days if we have the machines in stock.
The common machine fabricating time is 5-7 days and CNC machine fabricating time is about 25-45 days.If you have customized products, the delivery time will be given after confirmation.
D. Question: How is payment?
Re: 50% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.
E.Question: How is our package?
Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
F. Question: Why is price higher than other supplier?
Re: f1. We have our own machining factory and the high quality technical quality is our aim;
f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
f4. Our warrenty period is 36 months after BL time. It can support the new comer client going well in the beginning time

Contact Us
If you are looking for 60W 100w 200W 500W metal surface rust removal laser cleaning machine 1000W for paint removal for business expansion,
Or you have any questions about laser machine,
All the parts of machine can do some changes to meet your requirements. Any details information or help you want, please contact with me.
