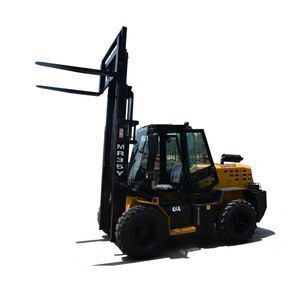

3Ton 3.5Ton All Terrain Forklift

Click here to contact

Product details

Condition:	New;	Warranty:	1 Year;
Min. turning radius:	4760mm;	Max. traction force (full load):	28KN;
Load center distance:	500mm;	Max. Lifting height:	3000mmm or as request;
Rated load:	3500kg;	Max.lifting speed:	425.5mm/s;
Min. Lifting Height:	100mm;	Type:	Powered Pallet Truck;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Insurance;	Certification:	ISO9001 CE EPA;
Max.gradeability (full load):	20%;	Fork Width:	100mm;
After-sales Service Provided:	Free spare parts;	Name:	3Ton 3.5Ton All Terrain Forklift;
Max. Running speed:	37km/h;	Max. Lifting Height:	5150mm;
Overall Dimensions:	5055x1725x2170mm;	Supply Ability:	100 Set/Sets per Month;
Place of Origin:	Shandong China;	Brand Name:	Mountain Raise;
Port:	China Port;	Fork Length:	1070;
Power Souce:	Diesel Engine;	Packaging Detail:	1unit/20'GP container , 3units/40'HQ container;
Portal frame inclination front/rear:	6°/12°;

3Ton 3.5Ton All Terrain Forklift

Product Description

> CE Approved, Rops&Fops Approved, EURO III Approved, EPA Approved,etc.

>Engine : Xinchai 40KW (Cummins or Yanmar engine as your option);

>Lifting height is 3m (4m, 4.5m, 5m or as your option);

>Various attachments for choose,Such as log fork, bucket,etc.

Specifications

Main Specification
Rated Load Capacity	3500kg
Operating Weight	4450kg
Lifting Height	3000mm
Dimensions LWH	5055x1725x2170mm
Engine
Model	Xinchai
Rated Power	40kw
Transmission
Type	Hydraulic Transmission
Speed Gears	F2/R2
Axle
Front Axle	Fixed with calipers
Rear Axle	Fixed with Osc.frame and calipers
Brake System
Service Brake	Oil Brake
Parking Brake	Drum-type shoe brake,spring applied & air released
Tires
Size	12-16.5
Tread Pattern	As your request
