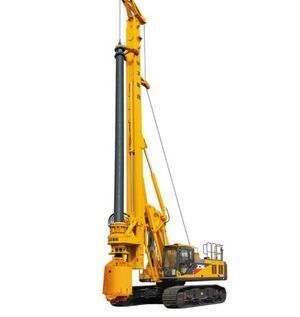

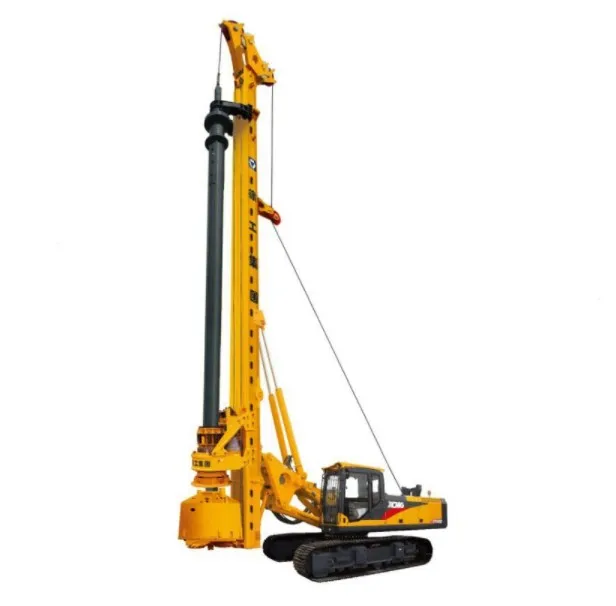

China construction machinery XR220D rotary pile machine drilling Rig for sale

Supplier: Xuzhou Shangheng Engineering Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr William Gao
Price: $250000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Condition:	New;	Supply Ability:	20 Unit/Units per Month;
Power Type:	Diesel;	Port:	SHANGHAI QINGDAO NANJING OR ACCORDING TO CUSTEMER REQUIRE;
Dimension(LWH):	10260440022120mm;	After-sales Service Provided:	Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Usage:	Water Well;	Warranty:	1 Year;
Type:	Rotary Drilling Rig;	Voltage:	220V/380V;
Place of Origin:	Jiangsu China;	Weight:	70000kg;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	NO PACKING;

China construction machinery XR220D rotary pile machine drilling Rig for sale

Engine	Model		CUMMINS QSL-325
Engine	Rated Power	kW	242
Rotary Drive	Max. output torque	kN·m	220
Rotary Drive	Rotary speed	r/min	7~22
Max. Drilling Diameter		mm	ø2000
Max. Drilling Depth		m	67,80
Pull-Down Cylinder	Max.pull-down piston push	kN	200
	Max.pull-down piston pull	kN	200
	Max.pull-down piston stroke	m	5
Crowd Winch	Max.pull-down piston push	kN	200
	Max.pull-down piston pull	kN	210
	Max.pull-down piston stroke	m	15
Main Winch	Max.Pulling force	kN	230
Main Winch	Max.line speed	m/min	70
Auxiliary Winch	Max.Pulling force	kN	80
Auxiliary Winch	Max.line speed	m/min	60
Mast Rake	Side/forwards/backwards		±4°/5°/15°
Undercarrige	Max. traveling speed	km/h	1.5
	Max.grade ability	%	35
	Min. Clearance	mm	468
	Track shoe width	mm	800
	Distance between tracks	mm	3500~400
Hydraulic System	Working pressure	Mpa	35
Overall Drilling Weight		t	70
Dimension	Working condition	mm	10260X4400X22120
Dimension	Transportation condition	mm	16355X3500X3510
