Large Format Roll To Roll Plotter DX5 Printhead uv the printer for WallPaper

Click here to contact
Product details
Application:Indoor Outdoor Advertisement;Dimensions(L*W*H):W4580*D970 * H1500mm;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal,Cash;Condition:New;
Automatic Grade:Automatic;Color & Page:Multicolor;
Warranty:1 Year;Media Type:Flex,Banner,Adhesive Vinyl,One Way Vision, Mesh etc;
Usage:Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer,UV Printer;Supply Ability:5000 Set/Sets per Month;
After-sales Service Provided:Engineers available to service machinery overseas;Item Name:Roll UV Printer;
Type:Inkjet Printer;Plate Type:Eco Solvent Printer;
Weight:750kgs;Place of Origin:Shanghai China;
Print Head:Ricoh Gen5 Print Head;Warranty:Permanent;
Brand Name:MT Refretonic;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Packaging Detail:Plywood Case Package & Stretch Film Inside;Technicial Support:Lifelong Technology Support;
Port:Shanghai;Ink Type:UV Ink;
Voltage:110V/220V;Resolution:1200 DPI;
Print Dimension:1.8m/3.2m;Certification:CE SGS MSDS;
RIP software:Maintop (Photoprint Wasatch Optional);


Product Description





Product Pictures




Mode Type

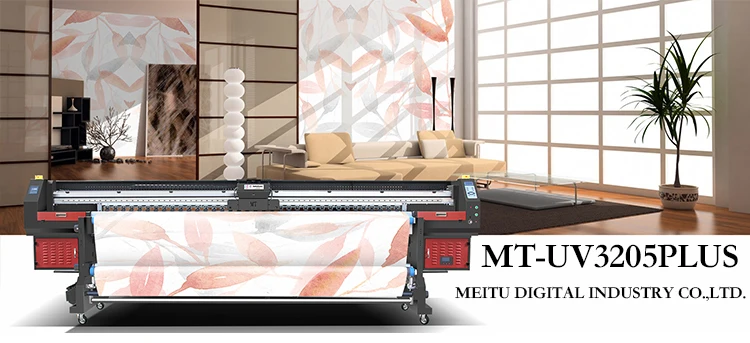

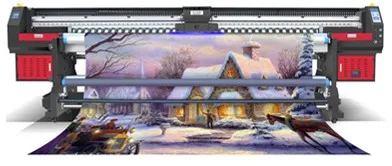

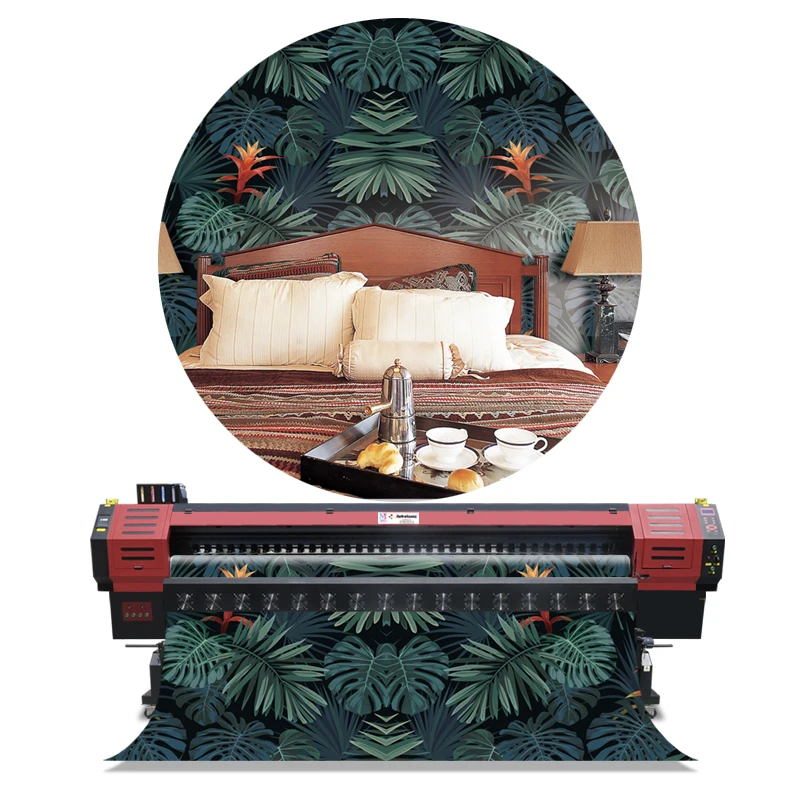

Roll to Roll UV Printer MT-UV3205Plus

Print Head

2/3/4 DX5 Drop-On-Demand Micro-Piezo Print Heads

Number Of Nozzles

1440 Nozzles * 4 Heads

Color

4 Colors:Cyan, Magenta, Yellow, Black

Resolution

1440dpi (Max)

Height Of Print Head

2-5mm

Size Of Ink Droplet

1.5-21 Pl

Max. Print Width

3200mm

Max. Media Width

3300mm (Max)

Real Time Tracking

None

Printing Speed

3pass

70.0sq.M Per Hour

4pass

58.0sq.M Per Hour

6pass

48.0sq.M Per Hour

8pass

38.0sq.M Per Hour

12pass

28.0sq.M Per Hour

Media Feeder

Yes

Media Take-Up

Yes

Material

Max Weight

200kgs

Application Type

Flex,Banner,Knife Coated Substrate,Double Side Printing Banner PVC,Advertising Cloth,Adhesive Vinyl,One Way Vision, Mesh,Reflective Banner,Reflective Vinyl,Eco Solvent Media

Ink

Type

Eco Solvent Ink,UV Ink,Sublimation Ink,Pigment Ink,Water Based Dye

Ink Tank Account

6*2.5Liter Continuous Ink Supply

Auto Cleanning System

Auto Cleanning System With Anti Clogged Flash Spray & Moisturizing Function

Picture Drying System

Fan Drying System, Infrared Heating

Media Adsorption

Multi-Section Intelligent Suction System With Adjustable Strength.

Interface

HI-USB2.0/3.0

Power

Power Voltage

AC220-240V 50-60HZ Or AC110-120V 50-60HZ

Control Software

Print Manager

RIP Software

Maintop (Photoprint Wasatch Optional)

Three Heating Sections

Pre-Heater, Printing Bed Heater, Rear Heater

Operation System

MS Windows XP & Windows 7

Printing Environment

Temperature: Temperature 18-32 Degrees, Humidity 46-65 Rh

Picture Type

JPG PSD TIF

Printer Dimension

W4580*D970 * H1500mm

Packing Dimensions

W4800*D1100 * H700mm

Net Weight

750kg

Gross Weight

950kg



PRODUCT FEATURES:

1)   Item Model:    MT-UV3205Plus

2)   Machine Body Materal:  Aluminum Alloy  and  Stainless Steel

3)   Printhead:   DX5

4)   Resolution:  1440dpi X 1440dpi

5)   Size of Ink Droplet:  1.5-21PL

6)    RIP Software:  Maintop, Photoprint, Wasatch





Packaging Details:

1) Package Dimensions:

W4800*D1100 * H1700 mm

2) Quantity/Package:  1  Set

3) 20GP/40GP:  1/2  Sets

4) Gross Weight:  950 Kg


CERTIFICATION:
LOGISTICS ABILITY:

MT Industry Arranges the Mixed Logistical for delivery as By Sea, By Air and By Truck or Train, Over  10 Years' Experience   for Logistical Arrange.

MANUFACTORY SCALE:

The Total Manufactory Area: 30,000 square meters (322,916 square feet)

Production Staff:  158 to 168        QC Staff:  5 to 8     R&D:  10 to 15

DELIVERY TIME:

1) Material Preparation Time: Instock Any Time

2) Spare Parts Preparation Time: Instock Any Time

3) Metal Processing Time:  5 days

4) Assembly & Testing & Packaging Time:  2 days

5) Total Delivery Time:  7 days for 1 set   for safe delivery lead time

The Faster Delivery Could be Negotiable Sometimes!

USAGE/OCCASION

Sign Industry, Advertising Industry, Advertising Agency, Advertisement Company, Outdoor Digital Inkjet Printing, Indoor Digital Inkjet Printing.










We are located at Shanghai, China and founded in 2007 as designer, supplier and manufacturer of Eco
Solvent  Printer,  Solvent Printer, UV Printer and Digital Textile Printer with our own research institu
manufactory, marketing department, international after-sale service team etc.

We're passionate about building MT, a brand that we will be proud of and that you'll be proud to use it
too. MT is not the first Industrial Printer brand to be Born In Shanghai. But MT is passionate about
building the  best Printer  Product in the game at the best price and service. As consumer liked to say
about their opinion,  "The best, the fastest, the latest" and we think that's right.

With more than 10 years' experience in manufacturing and exporting various kinds of Digital Inkjet
Printers  to European,  American, Middle East and Africa markets, we possess very professional know
how especially in  controlling the quality of Eco Solvent Printers, Solvent Printer, UV Printer Digital
Textile Printer and  other  Advertising Products since 2007.We research and produce the inks and other consumables to work with our  printer,  which  can guarantee high resolution on different printing  materials.














Shipment



Payment



   T/T * MoneyGram * Paypal * WesternUnion * L/C











FREQUENTLY ASKED QUESTIONS



Q:  I don't know your website well, how can I trust you?

A:  MT Digital Industrial Co., Ltd. ( www.MTuTech.com  &  www.MTjet.cn ) has launched online business for selling Eco Solvent Printer, Solvent Printer, UV Printer, Digital Textile Printer almost 10 years and established customers over 168 countries and areas. We are the Gold Supplier of Alibaba almost 10 years, and the verified user of PayPal as well as approved by SGS certification.



Q: How to pay? Can I use credit card?

A: You may use the following methods of payment:  Ali Trade Assurance, PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.



Q: How can I know if it is paid successfully?

A:  We will send you a payment confirmation email upon receiving your payment



Q: How long can I receive the items?

A:  Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days by air cargo. Therefore, under normal situation, you will receive the items in 4 to 9 days by air.



Q: How to receive my order? Is it safe during shipping?

A:  For the items you purchased, we will arrange shipping by sea or international express delivery to ship and usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally, we will purchase insurance as a guarantee for your order.



Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?

A:  We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking your email.



Q: What is Warranty Policy

A: We provide 1 year warranty. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large format digital inkjet printer with continuously ink order.

All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high quality and high production standards and affordable price. We can supply assembly spare parts with every machine and guarantee their functioning for at least 12 months.



Q: If I still have questions to this product, what shall I do?

A:  Please click "Inquire Now" below the page and submit your inquire or questions, we will reply you as soon as possible, or email to us, Whatsapp ID: 00861363662744












MT Industry Is 10 Years Alibaba Gold Supplier
And We Accept Payment By Alibaba Trade Assurance !
