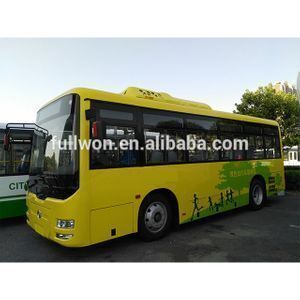

Euro 3 high quality bus with diesel engine

Supplier: Shanghai Fullwon Industrial Co., Ltd.
Region: Shanghai, China
Contact: Mr FW China
Price: $28000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Delivery Detail:	30 working days when receive payment;	Seats:	31 - 50;
Model Number:	SW6860C3GFR;	Color:	Optional;
Dimension:	855024003145;	Product name:	Euro 3 high quality bus with diesel engine;
Port:	shanghai port;	ANGLE (APP/DEP):	13/10;
TYPE:	4 CYLINDER IN-LINE;	Fuel Type:	Diesel;
Emission Standard:	Euro 3;	Engine Capacity:	4 - 6L;
Brand Name:	SEENWON;	Condition:	New;
MAX. SPEED:	90km/h;	Engine:	Yuchai;
Packaging Detail:	standard package for Euro 3 high quality bus with diesel engine;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Supply Ability:	10000 Unit/Units per Year;	Transmission Type:	Manual;
Seat Capacity:	35-39 seats;	Total weight:	11185kg;
FUEL TYPE:	DIESEL;	Place of Origin:	Shanghai China;

Euro 3 high quality bus with diesel engine

ITEM		SW6860C3GFR RHD/LHD
DIMENSION	LENGTH×WIDTH×HEIGHT(MM)	8550×2400×3145
	Tread F (MM)	1910
	Tread R (MM)	1800
	WHEELBASE (MM)	3900
WEIGHT	TOTAL MASS (KG)	11185
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	11
	MAX. SPEED (KM/H)	90
	ANGLE (APP/DEP)	13/10
Max SEATS CAPACITY		35-39 seats
FRAMEWORK		REAR ENGINESTRAIGHT BEAM
ENGINE	MODEL	EURO3 YC4G180-30/132KW EURO3 YC6J200-30/147KW
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	132KW
	MAX. TORQUE (N.M)	660
	EMISSION STANDARD	EURO3
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
CLUTCH	CLUTCH BOOST	WITH PUMP
TRANSMISSION	Gearbox	5 SPEED- MANUAL
TRANSMISSION	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		3.5T
REAR AXLE		8.0T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Φ310
	F/R BRAKING SHOE Width	120/150
SUSPENSION STYLE		MULTIPLE-LEAF SPRING
TYRE		8.25-20
OIL TANK CAPACITY		120L

Truck

Construction equipment

Spare parts

Fullwon is officially authorized 4S dealer and exporter of SINOTRUK, Professional on the truck for more than 15 years, also cooperate with:

The super dealer of Volvo in China, who are providing all kinds of construction equipment, the domestic brands which including:

Full range of spare part for the trucks and construction quipment. Professional spare parts technical support with rich experience.

_ Sinotruk

_ XCMG

_ Sinotruck parts

_ Dongfeng

_ XGMA

_ Quality OEM parts

_ Qingling (Isuzu)

_ Lonking

_ Best Value parts

_ Foton

_ SANY

_ Seenwon

_ Shacman

_ Drill rig/Water well drilling rig

_ FIAMM

_ Iveco

_ Bulldozer

_ Tire

_ Kinglong

_ Forklift

etc

Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and

VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.Certificates including ISO9001 can also be provided.
