| Model Number: | TSP450B; | Power(W): | 560w; |
| Dimension(L*W*H): | 820x1770x620mm; | Weight: | 117kg; |
| Warranty: | 1 Year; | Size: | 820x1770x620mm; |
| Packaging Detail: | 1Piece/Plywood; | Port: | Nansha; |

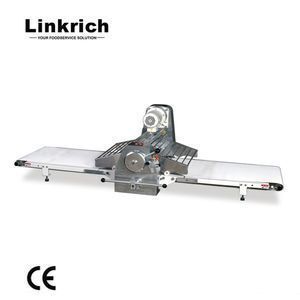

| Type: | Dough Sheeter; | Supply Ability: | 500 Set/Sets per Month; |
| Power Source: | ELECTRIC; | Brand Name: | LINKRICH; |
| After-sales Service Provided: | Online support; | Application: | Food Processing Machine; |
| Place of Origin: | Guangdong China; | Condition: | New; |
| Certification: | CE / ISO9001:2008; | Material: | Stainless Steel; |
| Voltage: | 220V/50HZ; | Payment Terms: | L/C,T/T; |



| Voltage | 220V |
Power | 0.56kw |
Net Weight | 117kg |
Belt Size | 430mmx1700mm |
| Width | 820mm |
| Depth | 1770mm |
| Height | 620mm |


l Large roller opening (40mm) with large hard chrome rollers
l Very large dough weight capacity
l Steel, stainless steel & aluminum (not plastic components & casings
like many other sheeters)
l Easy to remove & clean scraper assemblies with low replacement cost
l Quality food grade conveyor belt (not a cotton belt)
l No external switches to allow flour entry &subsequent damage
l Allows easy access in folded position to conveyor drive-rollers for cleaning
(unlike other sheeters)
l Poor cleaning enables dough build up on the rollers causing a bump under
the sheeting belt, this can catch on the scrapers thus ripping the belt.
