Skywin Bakery Oven Biscuit Making Machine Bakery Machines/Bakery Equipment Prices

Supplier: Skywin Foodstuff Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Hu Guorong
Price: $100000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training;	Motor:	SEW brand or Chinese famous brand;
Dimension(LWH):	19009001200mm;	Bearing:	NSK brand;
Voltage:	380V/50HZ;	Machinery Function:	Baking biscuit cookies;
Package Type:	Wooden case for seaworthy.;	Selling Units:	Single item;
Materials:	304 Stainless steel;	Electric Parts:	SIEMENS;
Raw material:	Milk,Corn,Fruit,Wheat,Nuts,Soybean,Flour,Vegetables,Water,Oil;	Application fields:	Dairy products factory,Snack food factory,Bakery,Biscuit factory;
Transducer:	Siemens;	Weight:	500kg;
Single package size:	2X4X5 cm;	Power(W):	About 700kw;
Air cylinder:	FESTO brand;	Output product name:	Biscuit cookies;
Warranty:	1 Year;	Package Preview:	https://sc01.alicdn.com/kf/HTB1CPfqbUGF3KVjSZFvq6z_nXXar.jpg_640x640.jpg;
Gearbox:	SEW brand or Chinese famous brand;	Brand Name:	SkywinBake;
Certification:	CE ISO9001;	Single gross weight:	40 KG;
Automatic:	PLC control;	Place of Origin:	Guangdong China;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop,Bakery Machines;	MOQ:	One Set;
PU:	Netherland brand;

Product Description

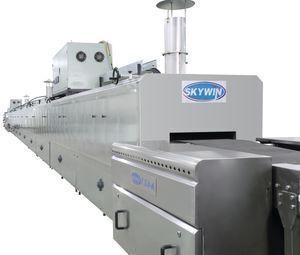

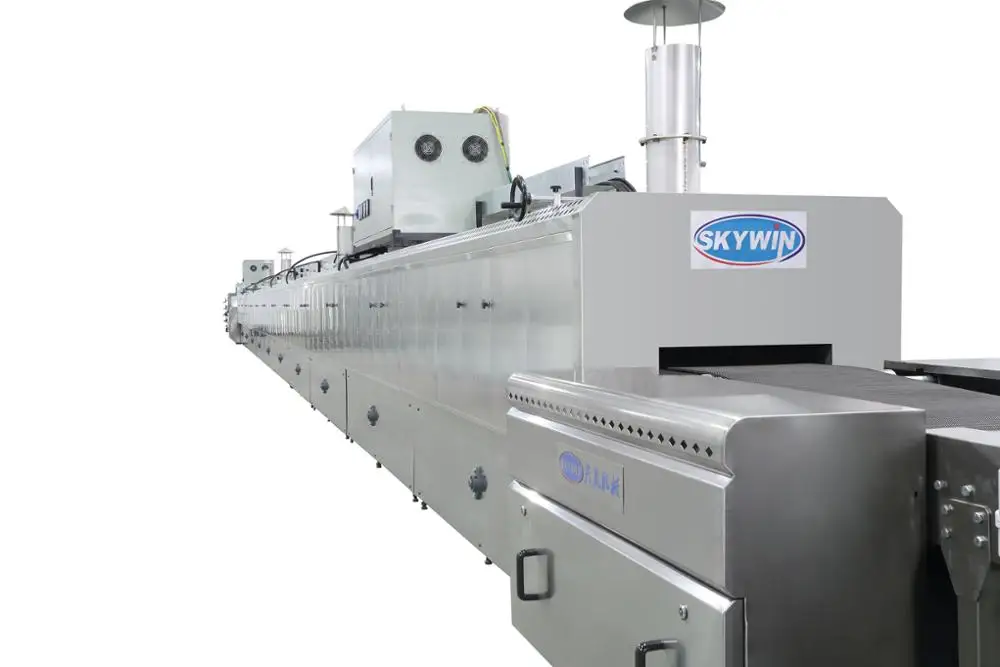

Skywin Bakery Oven Biscuit Making Machine Bakery Machines

1. There are three types of tunnel oven (electric, gas and diesel oil).

2. Main body made by 304# stainless steel. It has 2 to 4 temperature areas which are high efficiency and energy saving to ensure the biscuit's technology.

3. The length of the oven determine the biscuit capacity. (Capacity from 50-2000kg/hr)

4. The oven can bake different kind of biscuit including stick biscuit, cookies, hello panda biscuit, wafer biscuit, cracker biscuit, cookies and so on.

It depends on the natural resources of different countries. Some contries is abundant in gas.

Temperature will be 200℃ ~300℃, max 350℃

We have different kinds of biscuit baking ovens for baking cookies soft and hard biscuit

Electric oven

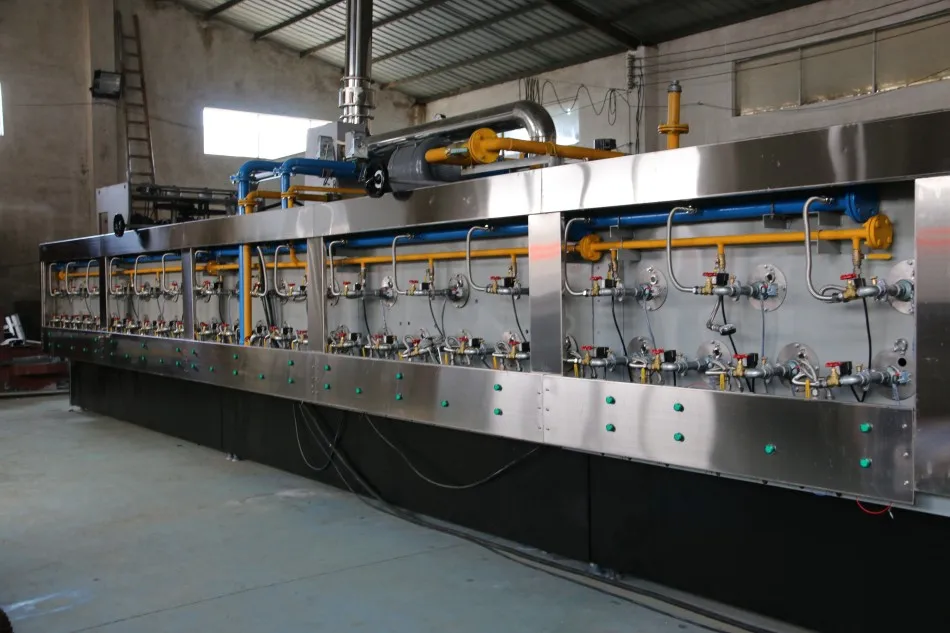

Gas oven (Indirect gas oven and direct gas oven)

Diesel oil oven

Hybrid gas fired oven

Direct gas fired oven

Electric oven

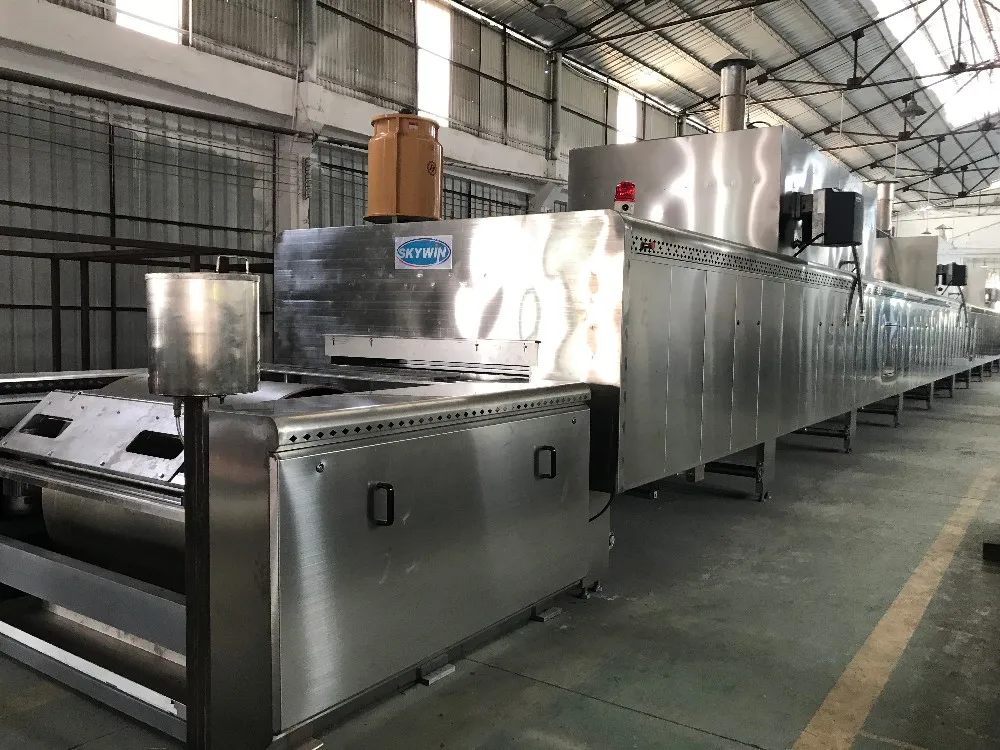

Gas oven on factory

Detail

1. Have security system.

2. Automatic alarm device.

3. Save energy (have hot air circulation system).

4. Insulation cotton inside the oven, Heat resistant material: rock wool.

5. PLC control.

6. 304# stainless steel cover.

7. Oven Belt Driving system.

8. Pneumatic tracking system 3 sets installed on enter oven, exit oven and oven bottom.

9. Speed control by frequency inverter.

10. Main bearing NSK.

11. With belt clean Machine.

12. Cleaning windows in each 3meters.

13. Weishaupt brand gas burner from Germany.

14. Chinese brand GUOMAO motor and gearbox (SEW for option).

15. Have chimney to discharge the air and steam.

Model Number	length of oven
Model Number	20m	40m	60m
400mm	80~180kgs/hr	/	/
600mm	150~200kgs/hr	200~400kgs/hr	400~700kgs/hr
800mm	150~250kgs/hr	250~500kgs/hr	600~900kgs/hr
1000mm	200~350kgs/hr	400~700kgs/hr	800~1200kgs/hr
1200mm	250~450kgs/hr	600~1000kgs/hr	1000~1400kgs/hr

We also have rotary oven, welcome to contact.

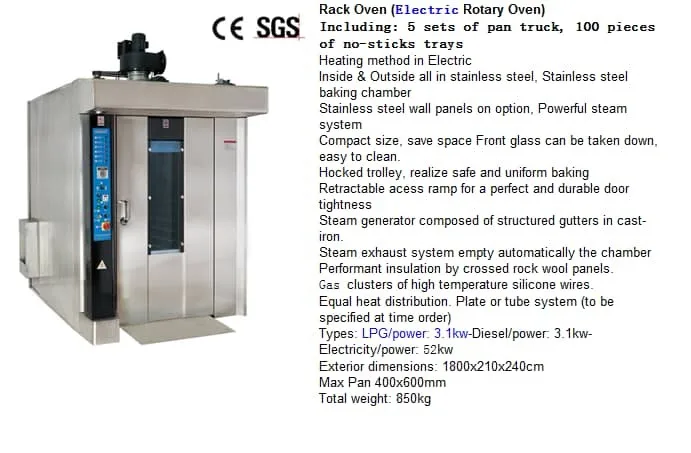

Rotary oven/Rack oven for baking biscuit cookies

Our Company

We are manufacturer and factory of biscuit production line and packing line

SKYWIN Food Machinery Group Company have group of 20 years experienced engineers, advanced processing equipment.

Our machine lifetime is 20-30years, we have whole life after-sale service.

Certifications

Packing & Delivery

Our regular packaging is multilayer packing, safe transport, shipping by sea:

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

Contact

♥Looking Forward To Your Specific Enquires.♥
Skywin Foodstuff Machinery Co. Ltd

Contact Info: Franco Chan
Mobile/IMO: +86 156 2604 0109
Wechat :gui512480880
