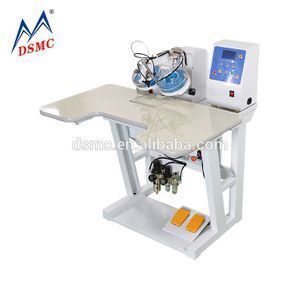

New Product Top Class Hot Fix Rhinestone Vacuum Applicator

Supplier: Guangzhou Dashan Ming Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms yangqing fu
Price: $1385.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Condition:	New;
Application:	T-shirt,Fabric, Ornaments, Cap, Bags;	Voltage:	220V;
Rhinestones of diameter:	2-7mm;	Automatic Grade:	Semi-Automatic;
Applicable Industries:	Garment Shops,Retail,Printing Shops,Advertising Company;	Features:	semi-automatic, double disc;
Application:	Underwear, children clothing;	Place of Origin:	Guangdong China;
Dimension(LWH):	1045970MM;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Detail:	PVC bag and foam inside, wooden case outside;	Port:	Guangzhou;
Supply Ability:	1000 Set/Sets per Month;	Brand Name:	DSMC;
Production Capacity:	130-150P/M;	Certification:	CE,SGS;
Machine Type:	Semi-automatic;	Weight:	85KG;
After-sales Service Provided:	Video technical support;	Power(W):	250W;

CE approved rhinestone hot fixing setting machine fabric printing machine guangzhou sale

Product Description

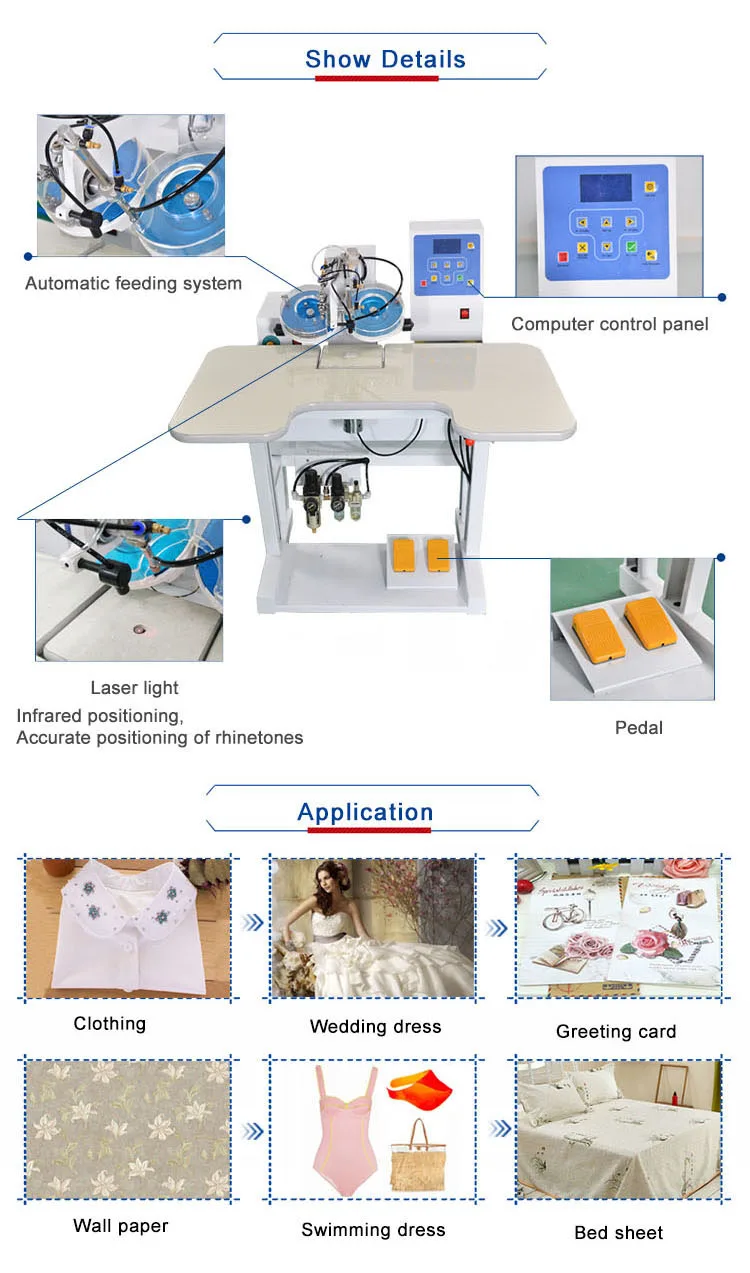

Features of hot fix rhinestone machine:

1. Can fix different kinds of beads with different colors, with a highly improved efficiency, and no damage to the material.

2. Infrared positioning; Positioning accuracy; Sticking firmly

3. Different material parameter setting is one of the characteristics of this machine, related parameter can be set according to different material to reach the best rhinestone fixing effect

4. Rhinestone fixing simulating function: can do simulating fixing of the chose design, the speed can be slowed down or quicken, and also can be paused

5. Fixing effect testing function: can check the rhinestone fixing effect by moving the fabric manual and do semi-auto fixing

6. A few labor cost can achieve mass production, high production efficiency.

Technical parameters of automatic ultrasonic rhinestone hotfix machine

Model	DS-07102	DS-09101	DS-09101S
Product name	Portable rhinestone machine	Ultrasonic single head hot fix machine	Ultrasonic Double heads hot fix machine
Voltage	110V/220V	220V	220V
Power	80W	300W	300W
Diamond size	1-10mm	1-10mm	1-10mm
Speed	60-120pcs/min	110-220pcs/min	110-220pcs/min
Size	L268W168H198mm	L650W800H1080mm	L650W800H1080mm
Weight	7kg	88KG	88kg

Working theory:

Through ultrasonic heating principle, picking up rhinestones by Pneumatic control method.

At the same time move the material accordingly by hand after the red light locate, then

the machine will fix rhinestones on the material quickly. Working speed can reach 130-150pcs rhinestones per minute, and will not fall off after being cleaned by water.

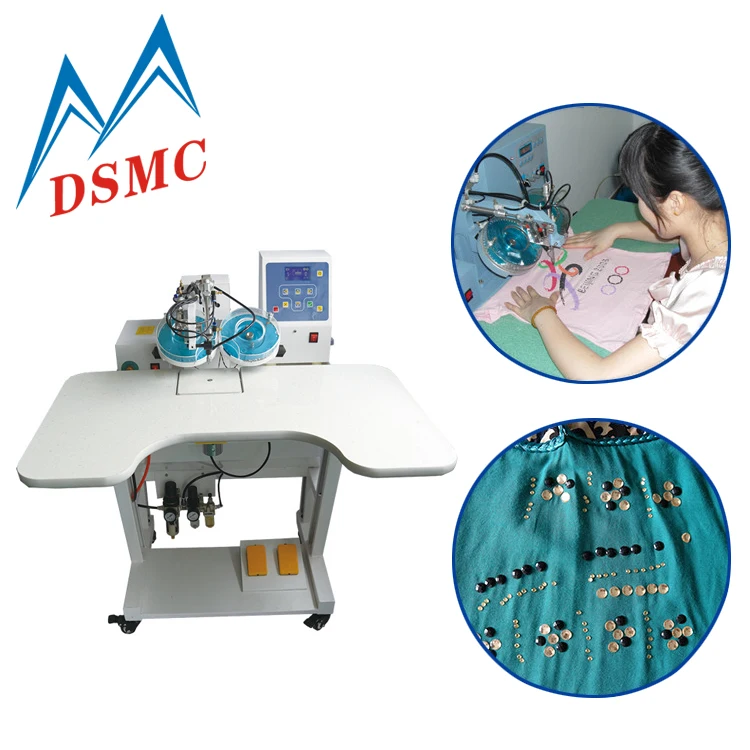

Pictures

Company Information

Guangzhou Dashanming Machinery Co., Ltd, an industrial enterprise integrating R&D, production, sales and service, specializing in the manufacturing ultrasonic hot drilling machine, automatic hot fix machine, ultrasonic welding machine( fixed position machine),heat press machine(pneumatic, hydraulic, manual), steam press machine, laser cutting machine(carving machine), robot automatic production line, other equipment and related accessories. Further more, we can develop all kinds of non-standard production equipment according to the drawing and requirements from clients.
