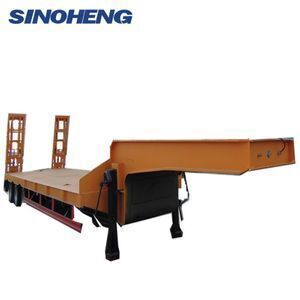

Tri-axle Hydraulic Low bed Semi Truck Trailers for sale

Click here to contact

Product details

Delivery Detail:	25 days of working;	Axle brand:	Famous brand axles;
Use:	Other Trailers;	Tare Weight:	About 8.5-13T;
Loading capacity:	40T-60T;	Product name:	low bed trailer;
Supply Ability:	1000 Unit/Units per Month;	Max Payload:	60T;
Port:	Shanghai or Tianjin;	No. of axle:	3 axles;
OEM No.:	Low bed semi trailer;	Model Number:	low bed trailers;
Size:	16000mm3500mm1650mm;	Place of Origin:	Shandong China;
Axles:	13 T/16T;	Tire:	8.25R20/10.00R20/11.00R20/12.00R20;
Payment Terms:	L/C,T/T;	ABS:	Optional;
Brand Name:	SINOHENG;	Main and side beam materail:	Q345B Steel and Q235 Steel;
Material:	Steel;	Packaging Detail:	Nude Packging , bulk cargo ship , RO-RO ship , container packing ship etc .;

Product Description

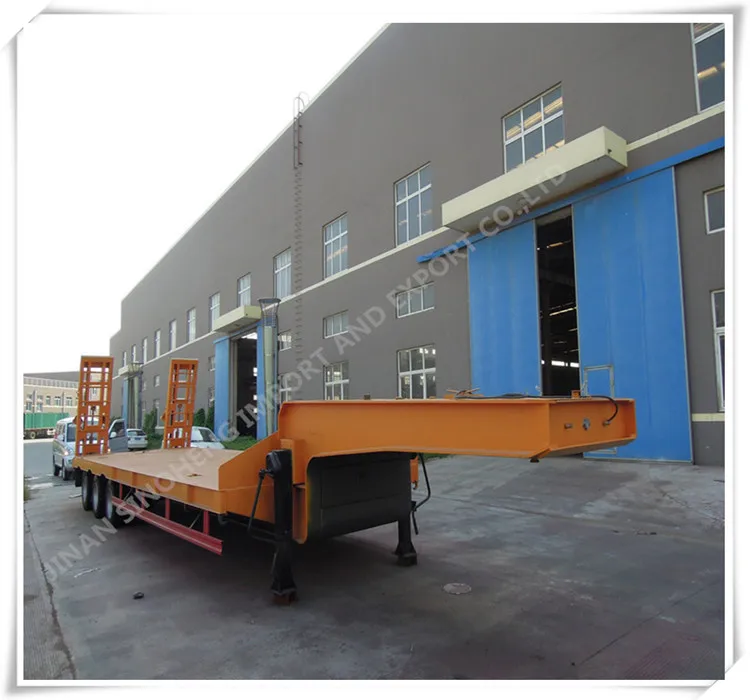

Tri-axle Hydraulic Low bed Semi Truck Trailers for sale

1. Mainly used for transport construction machinery , for example , excavator , road roller , truck crane , wheel loader etc construction equipment .

2. Manufactured by our advanced equipment and our professional engineers disgned , with excellent steel Q235 steel , Q345B and high configurations .

3. With exquisite welding and big loading capacity , ensure the safety and high efficient working value for users .

Low Bed Semi Trailer Specifications :

Tare Weight	About 8.5-13T
Dimension	13000-16000mm3000mm-3500mm1650mm
Loading Capacity (T)	40T-60T
Axle	13 T/16T, Famous Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (Famous brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	Famous brand 2.0 or 3.5inch bolts type or Welding type
Support leg	Famous brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -25mm channel steel ( Material is Q235steel ).

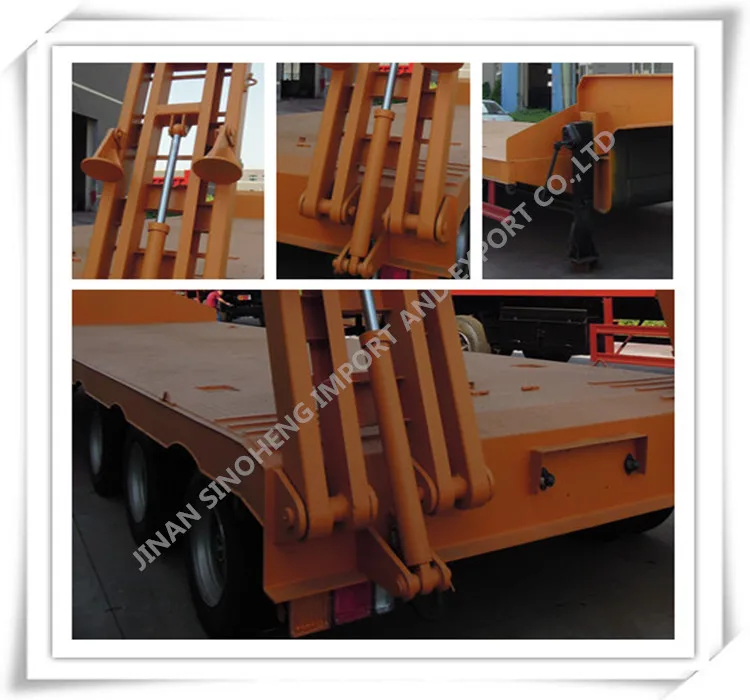

Ladder	Manual or Hydraulic type
Gooseneck	For choose
Brake chamber	Famous RE 6 relay valve; T30/30+T30 Spring brake chamber(Famous brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	Famous brand valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
