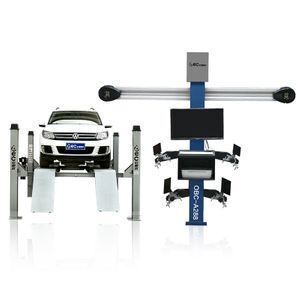

turntable 3D wheel alignment machine

Supplier: Yantai Lide Automotive Equipment Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Obec yt
Price: $1980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	OBC;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Color:	Customised;	Place of Origin:	China;
Port:	qingdao;	Balancing Speed:	220rpm;
Application:	Tire Workshop;	Trade Terms:	EXW;
Packaging Detail:	Standard seaworthy package;	Feature:	3D Dynamic Simulation;
Model Number:	OBC-A588;	Power:	0.25KW;
Max. Wheel Weight:	75kg;	Certification:	CE Certificate;
Power Supply:	110V/220V/380V;	Supply Ability:	150 Set/Sets per Month;
Function:	Wheel Angles;	Language:	Global Multi-language;
Keywords:	Alignment machine;	Warranty:	18 Months;
Product name:	turntable 3D wheel alignment machine system;

Product Description

1. Brief introduction of wheel aligner: (Clients here to know more)

With Intellectual Property Right on software, CE certification,Patents,HD Camera, USB Interface, FPGA Technology, Temperature Compensation, Intuitive , 3D dynamic simulation, Real-time Measuring, Less demand to lift level,very good stability and accuracy more than 5 megapixel camera.

Special Configuration:

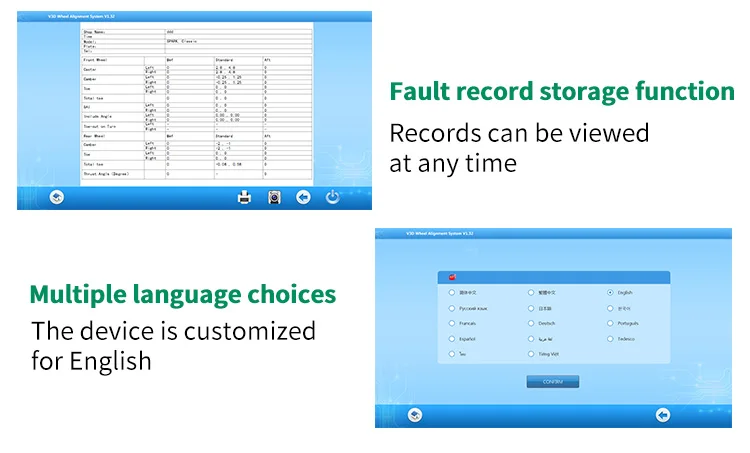

Temperature Compensation ,Fast measuring, No crash,Accurate,Easy operation and Maintenance, Audio prompt, Multilingual. All-in-one (without cabinet)
Aluminium Turntable
Standard Parameters Measurement
Chassis Parameters Measuremment
Visual Vehicle coming in
Remote technical service provided

2. Parameter of auto aligner (Clients here to know more)

	Item		Accuracy		Accuracy Range	Measurement Range
Parameter	Front toe		±2°		±4°	±20°
	Camber		±2°		±8°	±15°
	Caster		±3°		±20°	±20°
	Kingpin inclination		±3°		±20°	±20°
	Thrust angle		±2°		±2°	±10°
	Toe-in		±2°		±2°	±4°
	Toe-out		±2°		±2°	±4°
	Wheel deviation		±2°		±2°	±4°
	Axis deviation		±2°		±2°	±4°
Configuration List
Item		Quantity(Sets)		Remark
Camera		1		5 megapixel HD camera
Clamp		4
Target		4
Computer		1		Windows/XP 20G SSD 2G Memory
Displayer		2		22”/32”
Pillar		1		Iron alloy
Mouse/Keyboard		1
Steering wheel lock		1
Turntable		2
Wedge-shaped pad		1
Transitional block		1
Manual		1
Warranty card		1		One year warranty
Certification		1
