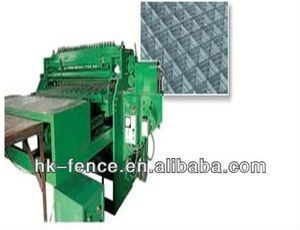

HT1200 HT1500 HT2000 automatic welding mesh machine Inexpensive hot sale

Product details
Port:xin gang;appearance:green paint;
Payment Terms:L/C,T/T,Western Union;drawing mesh style:automatic drawing wire mesh bystep motor;
welding mesh hole:50x50-200x200mm;electro:copper electro;
welding mesh max width:12m 1.5m 2.0m 2.5m;weft line feed:cuting wire in feed slot;
Supply Ability:2 Set/Sets per Week;Brand Name:hesin;
Dimensions:6mx2.3mx1.6m;Model Number:001;
After-sales Service Provided:Overseas service center available;Input Voltage:220v;
Delivery Detail:20 days;Place of Origin:Hebei China;
welding electro in weft line:25 or 31 or 49 pieces;Packaging Detail:pallet or naked;
Weight:2.6 ton;Usage:welding;
power:90kvax3;warp line feed:coil wire circle in the shelf;
delivery time:20 days;

Building panel automatic platoon welding machine
1.wire diameter:1.0-12mm
2.welding speed:45 times/min
3.Usage:Welding Steel mesh welding machine

 The machine was synchronised with power electronic technology. Mesh welding and welding time were controlled by digital circuit. Weft and warp wire are pulled out from the whirlwind and the net was pulled with a flexible rod and grid position device. It is easy to operate, only 2 person can complete the operation. The mesh can be in roll or sheet.

Main parameter

 1, size: 2400x2400x1400mm, 1800x2500x1800mm, 2700x2400x1800,

2, voltage: 380v

3, power: 50KVAx2, 63KVAx2, 120KVA x5

4, welding speed: 55times/min, 45times/min.

5, welding points: 25, 16, 41

6, warp wire form: coiled wire, running wire

7, weft wire form: coiled wire, cutting wire

8, weight: 2.2T, 2.8T, 3.5T



 Mesh Details

1, wire diameter: 1.4-4.5mm

2, mesh size: 50-200mm

3, mesh width: 1200-2000mm

4, mesh length: 5000mm(max)

5, packing: 10 pcs per bundle and then bulk or on pallet as requested



Main features



1, digital circuit control, with high control precison



2, stable performance



3, solid joints, no burning marks



4, mesh size can be adjusted within any range you want



5, high welding speed



6, simple and easy to operate
