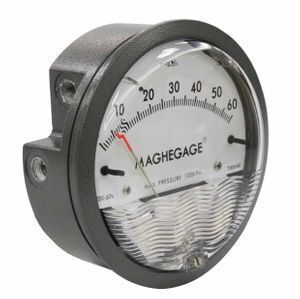

Air differential pressure gauge gas pressure measuring device

Supplier: Shenzhen Teren Control Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Lucy Zhang
Price: $16.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Credit Card;	Process Connection:	1/8" NPT, two pairs (on left or back side);
Model Number:	A2000/B2000;	Accuracy:	±2%FS;
Temperature Limits:	-6.67 to 60°C;	Measuring Range:	-70 to 100 KPa;
Housing:	die cast aluminum housing and bezel, ABS plate;	Medium:	Non-combustible, non-corrosive air, insensitive to moisture, dust...;
Size:	dial face OD 120.65mm;	Product Name:	Differential Pressure Gauge;
Packaging Detail:	12pcs/ctn;	Place of Origin:	Guangdong China;
Supply Ability:	3000 Piece/Pieces per Month;	Weight:	500G;
Port:	shenzhen / Hongkong;

Product Description

Applications & Features

l They can measure system pressure of fan, blower, filter, furnace draft and orifice plates. And they can also measure pressures in various clean room, bio-safety cabinet, clean bench, industrial cleaner, medical equipment, air sampler, pharmaceutical and grain & food machine, etc.

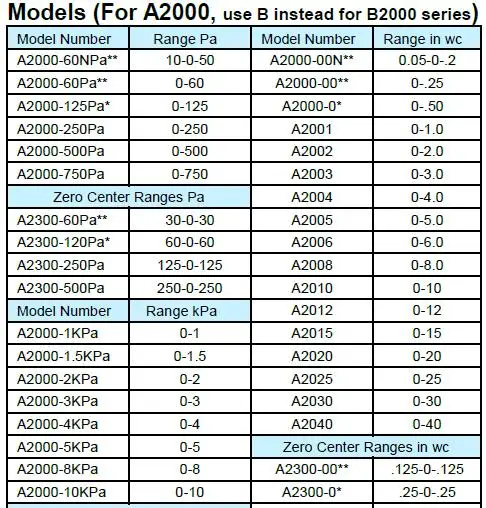

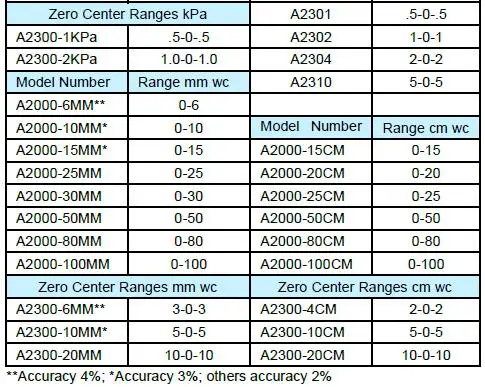

l 63 models available for different ranges and units for various applications

l With simple and frictionless movement, it quickly indicates air or gas pressure, either positive, negative or differential

l The design resists shock, vibration and over pressures

l Ultra-thin design: the flushed part is only 38.5mm, and the overall thickness is only 52.2mm

l Patented state of art wave shape decorative front cover

l Standard accuracy up to 2% and high accuracy up to 1%FS

l Optional mirror scale overlay eliminating parallax reading error and corrosion resistant brushed 304 SS bezel

A2000 (use trademark MAGHELIX) has very fine parts and assembly procedures to ensure extraordinary accuracy, stable and reliable for long term application. Each one have a Test Report for multiple points and precision packing. While B2000 (use trademark MAGHEGAGE) have simplified assembly and testing procedures without the report

Specifications

Service: Air and non-combustible compatible gases

Housing: Die cast aluminum case and bezel, with PC cover

Protection: IP67

Accuracy: ±2%FS (±3% on 125Pa, ±4% on 60Pa) @21°C

Pressure Limits: -70 to 100 KPa

Size: 101.5mm (4") diameter dial face, 115.5 mm (4-9/16”) dia. opening for flush mount

Temperature Limits: -7 to 60°C (20 to 140°F)

Connections: 1/8" NPT female high and low pressure taps, duplicated, one pair side and one pair back

Weight: 440g

Mounting method: Flush or surface in vertical position

Standard accessory: Model A-S10, including two 1/8”NPT pipe plugs, two1/8” NPT to 3/16” rubber tubing adapters and three flush mounting adapters with screws

Other Accessories: sold separately, see Accessories

Approval: RoHS (A2000)
