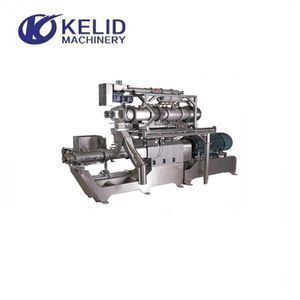

high output low energy consumption soya mock meat making machine

Supplier: Jinan Kelid Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr David Ren
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Motor:	Siemens/ ABB/ other China brands;	Machine brand:	KLD;
Operation:	Easy to operate of the soya mock meat making machine;	Warranty:	1 Year;
Power(W):	60- 120 Kw;	Machine material:	Stainless steel;
Voltage:	110- 380 V;	Product:	Soya protein;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,L/C, T/T, Western Union,MoneyGram and other payments for the soya mock meat making machine;	After-sales Service Provided:	Field installation, commissioning and training;
Place of Origin:	Shandong China;	Weight:	1ton- 3ton;
Brand Name:	KLD;	Dimension(LWH):	1600mm* 1800mm* 2000mm;
Main raw materails:	Soybean flour/ deffated soybean flour/ peanut meat;	Packaging Detail:	Package: wooden case for nutrition slice for the soya mock meat making machine. Shipment: by sea including LCL, 20GP, 40 GP, 40 HQ, 45 HQ for the soya mock meat making machine.;
Certification:	CE ISO9001;	Shapes:	Depended on clients' needs;
Application:	Kind of soya mock meat making machine;	Port:	Qingdao, Tianjin, Guangdong, Shanghai for the soya mock meat making machine;
Capacity:	100- 600Kg/h;	Condition:	New;
After-sales services:	Engineers are available to clients' countrys to service;	Supply Ability:	20 Set/Sets per Month Tell me if you are urgent for the soya mock meat making machine;

Product Description

High Output Low Energy Consumption Soya Mock Meat Making Machine

A Brief Introduction About Soya Mock Meat Making Machine:

With raw materials of bean pulp and peanut meal, this production line could break and re-systematize the chain of globular proteins with laminar fiber structure by grinding, stirring, tempering, high temperature, high pressure and high shearing process. The final products have the advantages of high nutritive value and meaty shape-taste without cholesterol or animal fat and it can be absorbed by oil, water and flavor, which is able to be applied in many types of fields. Defatted soybean powder, soy protein concentrate or soy isolate protein as the raw material, the textured soybean protein is mainly made through the process of mechanical stirring, extrusion and puffing, with high nutritive value and super-good performance.

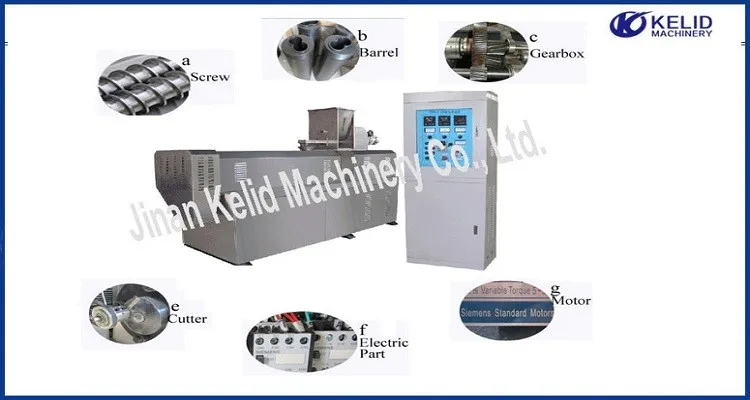

Details of soya mock meat making machine:

1. Alloy(38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roastiing or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin-screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with aotomatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for soya flour, also for corn/wheat flour with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half-expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
7. Siemens(China)brands electronic parts used in the controller box, make sure the extrusion process driving perfect.
8. Main motor from Siemens(China), ensure its powerful extrusion and excelllent performance.
9. Different type and capacity of extruder for your choice.

Some Sample Pictures

Productions made by the soya mock meat making machine:

We can make it various of shapes and types, such as chunks, slices, balls, chichen or fish and so on. All of them are high protein, meaty and tasty.

Machine Parameter

Model	KLD65- IV	KLD70	KLD85
Installed Power	105Kw	130Kw	200Kw
Production Capacity	200-260Kg/h	300-400Kg/h	400-500Kg/h
Dimension	130018002000mm	150018002000mm	180020002400mm

Services

We will provide the most thoughtful services for our clients:

* Related machines's technical parameter will be supplied to customer.
* According to customer's factory size, factory layout can be provided in advance.
* According to customer's material cost, general formulation can be prepared well.
* Special machine can be supplied as customer's request.
* Professional Advice about Market, machines, processing , materials, packing can be supplied
* Suggesting professional ship agent or helping book ship as customer request.

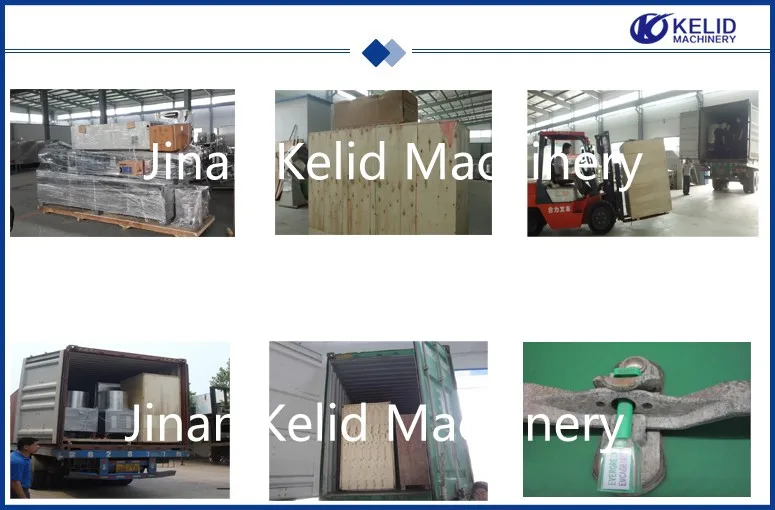

Packing & Delivery

Packing:

Inside: plastic bag for the soya mock meat making machine.
Ouside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).

Transportation:

Shipping, train, express, or upon clients' demands.

Clients With Us

We have through the years established good working relationships with some reputable organizations both at home and abroad with outstanding goodwill. Our clients will have a good trip and happy coorperating experience with us, Jinan Kelid Machinery Co., Ltd.

About Us

Brief Introduction About Our Company:

Jinan Kelid Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.

We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
