mini cement plant for sale

Product details
Packaging Detail:seaworthy packing for mini cement plant for sale;motor:SIEMENS, Chongqing, etc.;
Application:various cement production;After-sales Service Provided:Engineers available to service machinery overseas;
Dimension(L*W*H):Customizable;Certification:ISO9001;
Port:Shanghai, Nantong seaport for mini cement plant / small cement production machine / cement making machine;Installation:erection team or engineers' available;
finished product:opc, ppc, psc cement;reducer:Flender, etc.;
Voltage:220V, 380V, etc.;Weight:10t-2000t;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service;kiln type:rotary kiln or vertical kiln;
Brand Name:Pengfei;Payment Terms:L/C,T/T;
rotary kiln support roller:2sets or 3sets;Supply Ability:15 Set/Sets per Year mini cement plant for sale;
Power(W):800-20000KW;Place of Origin:Jiangsu China (Mainland);
process:new type dry process;Warranty:one year;
Condition:New;cement grade:32.5, 42.5, 52.5 cement portland;
Applicable Industries:cement making machinery;

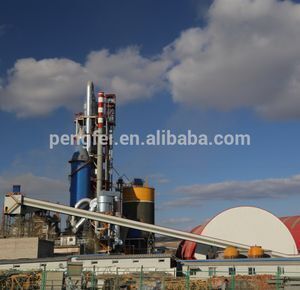

mini cement plant for sale



We, Jiangsu Pengfei Group Co., Ltd can  provide a wide variety of cement processing plant, including 8000t/d, 6000t/d, 5000t/d, 3000t/d, 2500t/d, 1500t/d and 600t/d cement production line. And one-stop service is also available, including designing, construction, relative equipment providing, installing and debugging, technical serving, and overall contracting.





Description: 1500ton per day cement plant for sale



Our 1500t/d cement plant for sale is a new type of dry process cement clinker production plant. The 3.5X54m rotary kiln has been used as rotary kiln, whose end is fitted with five-stage cyclone preheater and decomposition furnace.



Its process flow mainly consists of limestone crushing, raw meal grinding, raw meal homogenizing and storing, calcining, and cement grinding. Detailed information about it will be given in the following.



1. Limestone crushing: Limestone is crushed by the single-stage hammer crusher, which is usually used to crush medium-hardness brittle ores, like limestone, marl, shale, gypsum, coal, etc. It is capable of crushing large raw ores to the required feeding size, and its discharging grate can easily dispose the moisture and earth in ores. Special protection system is employed in iron feeding, which can send the uncrushed metals to the feeding device. In this way, the operator can stop the machine timely to solve the problem when they hear strange metal sound.

In this 1500t/d cement plant for sale, we use the TKPC16.18 single-stage hammer crusher. And its feeding size is 800mm, its production capacity 250t/h, and its annual utilization rate 25.51%.



2. Raw meal grinding: For raw meal grinding, we have HRM2800m vertical grinding mill system.



3. Raw meal homogenizing and storing: Our 15X50mMF homogenizing silo has integrated raw meal homogenizing and storing into one body, and its raw meal storage capacity is about 6500t and the storage period about 2.86 days.



4. Calcining: Its calcining system is mainly comprised of single-row five-stage CDC predecomposition system, 3.5X54m rotary kiln and new-type air girder cooling machine. Its productivity of cement clinker is about 1500t/d, and its heat consumption is about 840Kcal/kg (3511.0KJ/kg). The resolution ratio of calcium carbonate of the feeding materials is more than 90%. Additionally, the extra heat the waste gas is applied in drying raw materials and raw coal.

The clinker cooling has employed the advanced grate cooler with a grate bed that has an effective area of 61.8m2, and a clinker temperature that is 65c higher than the ambient temperature.



5. Cement grinding: This 1500t/d cement processing line has two3.5X13m tube mills and they are equipped with N-1500 type O-SEPA high-efficiency air powder separator to make up a circulatory grinding system. Their productivity is about 50t/h.



To know further more information, please contact me by e-mail directly with your specific requirements. Thank you in advance!

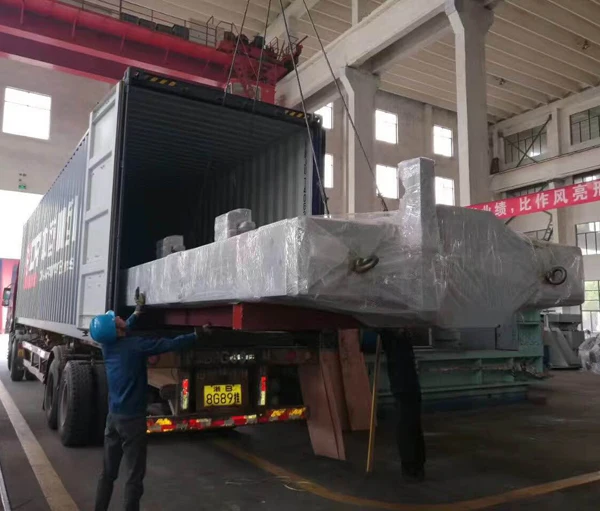

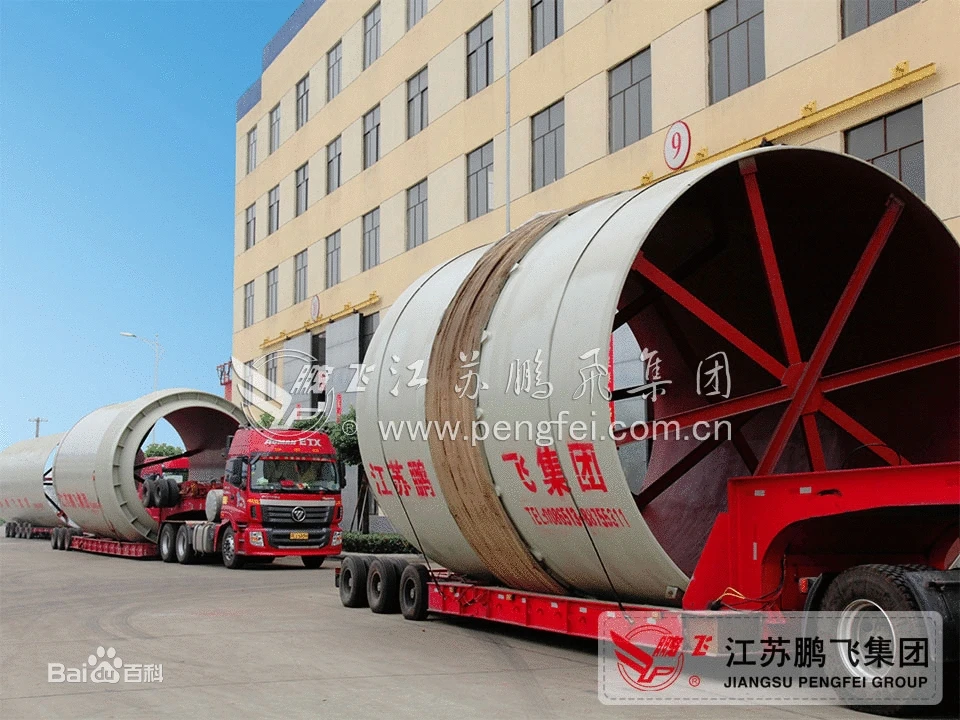

Packing & Shipping of mini cement plant for sale:







Our services for mini cement plant:

1) dispatch our engineers to have site investigation

2) complete process designing

3) all mechanical machinery & electrical facilities supply for cement plant

4) erection of all mechanical machinery & electrical facilties supply for cement plant

5) test-run of the whole cement plant

6) new employees training for cement plant

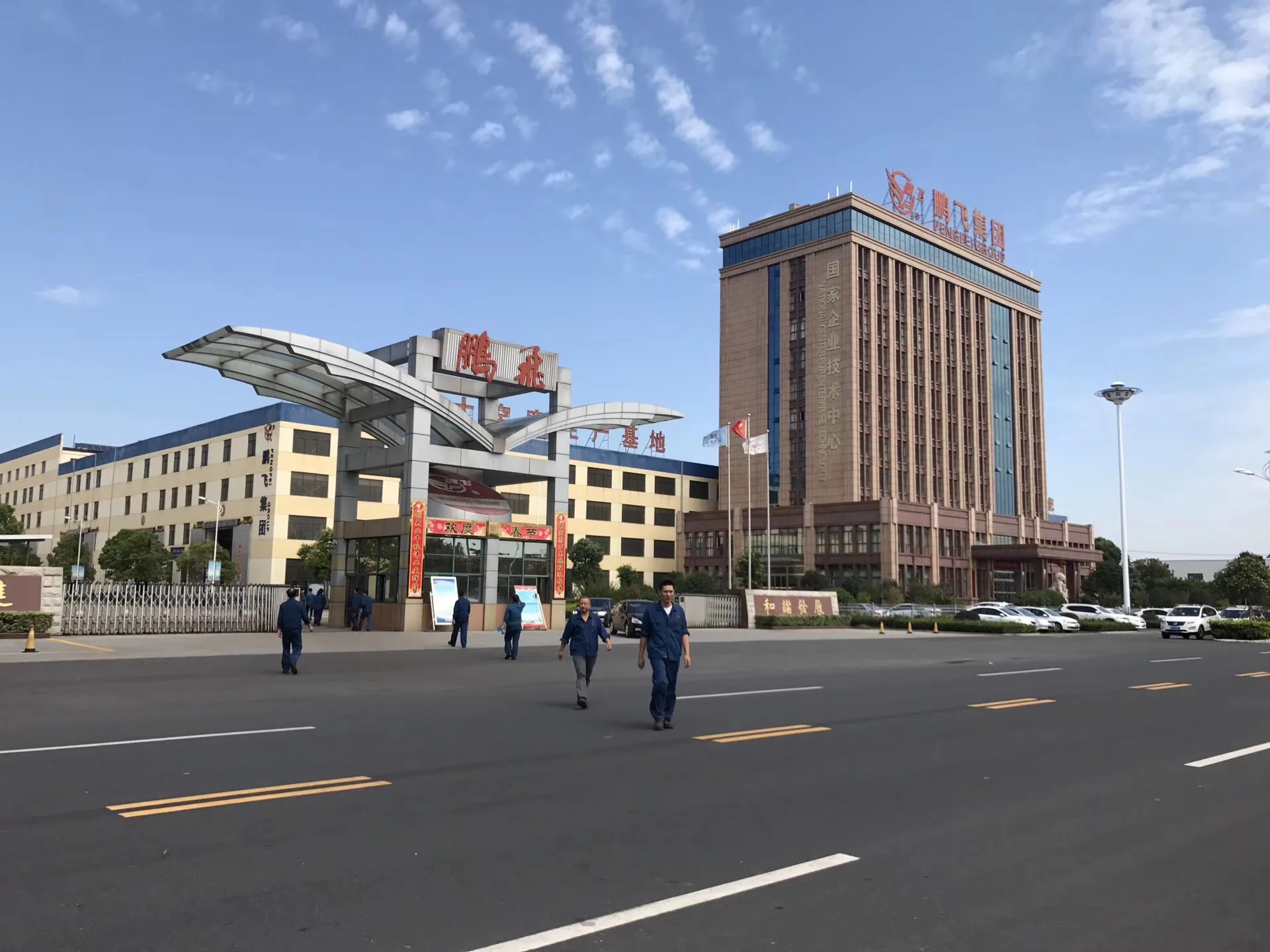

Company information:

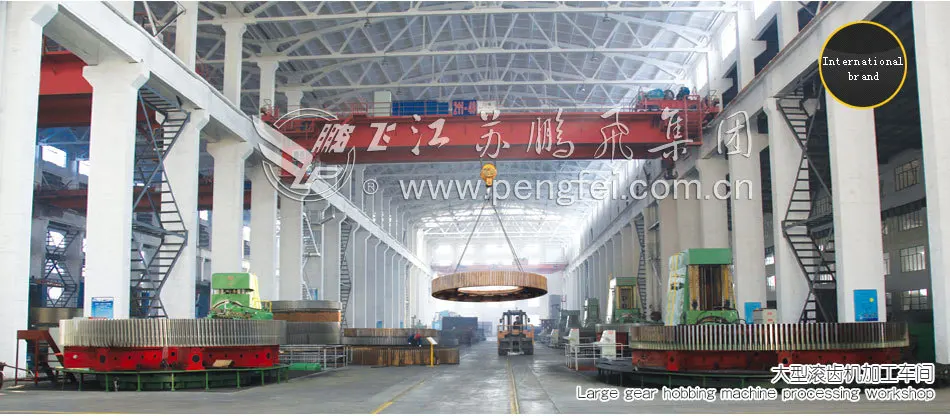

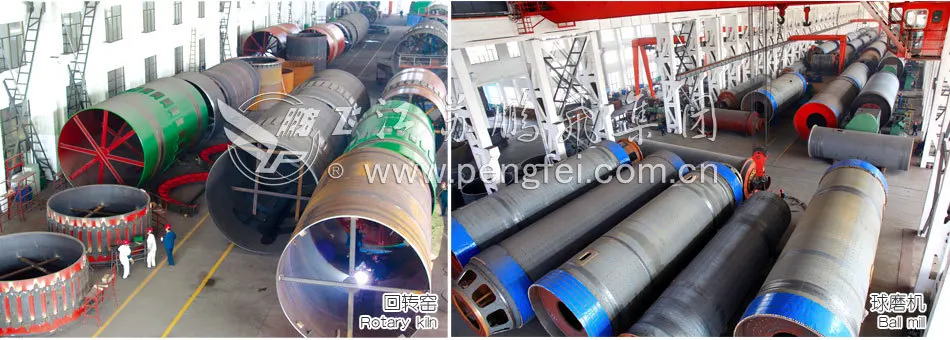

Jiangsu Pengfei Group covers an area of 350,000m2 and it has 0.82 billion RMB of total assets. There are 450 engineers and technicians. The company has the six subsidiary companies such as the mechanical plant, electronic plant, casting plant, installation plant, the new type building materials plant, etc. The company has the mechanical processing capacity of 300,000t/y; its rotary diameter and gear hobbing diameter are 10m as well as the diameter of the annealing furnace is 6.5m; the maximum hoisting capacity is 400t, so the company can meet the manufacturing requirements of the rotary kiln and ball mill below 6m in diameter.
