Box-type vacuum tube lifting assists the manipulator in lifting and moving
-
Supplier: Jiangyin Tongli Industrial Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Fenny Wang -
Price: $6500.00 / 1 - 2 sets
$6200.00 / >=3 sets -
Min. Order: 1 set
Product details
| Key words: | vacuum tube lift | Weight (kg): | 350kg |
| Warranty: | 1 year | Applicable industries: | Building materials stores, machine repair shops, manufacturing plants, farms, print shops, construction projects, advertising agencies |
| Maximum load: | 500kg | Material: | Stainless steel |
| product name: | Box type vacuum tube lifting auxiliary manipulator | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Core component warranty: | 1 year | Showroom location: | not any |
| type: | Semi-automatic | Marketing type: | Popular products |
| Function: | parts transfer | Core components: | pneumatic |
| OEM and ODM: | Customized manipulator | Place of origin: | Jiangsu, China |
| thing: | Mini lifting crane | Health status: | new |
| Video outbound inspection: | if | brand: | Tongli |
| Number of control axes: | 1~5 axis | Mechanical test report: | if |
| Action type: | Multiple joints |

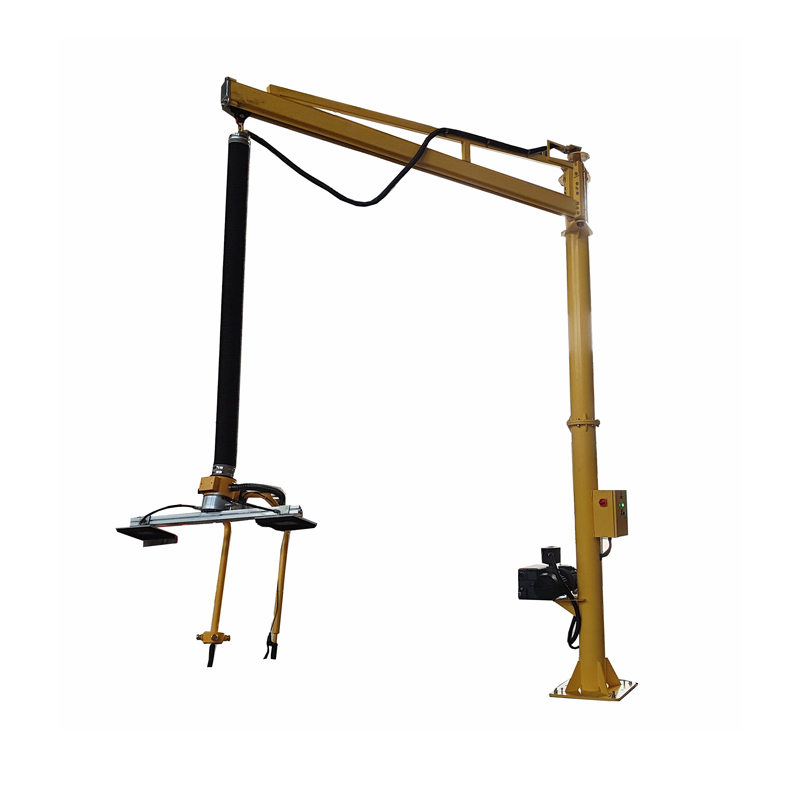

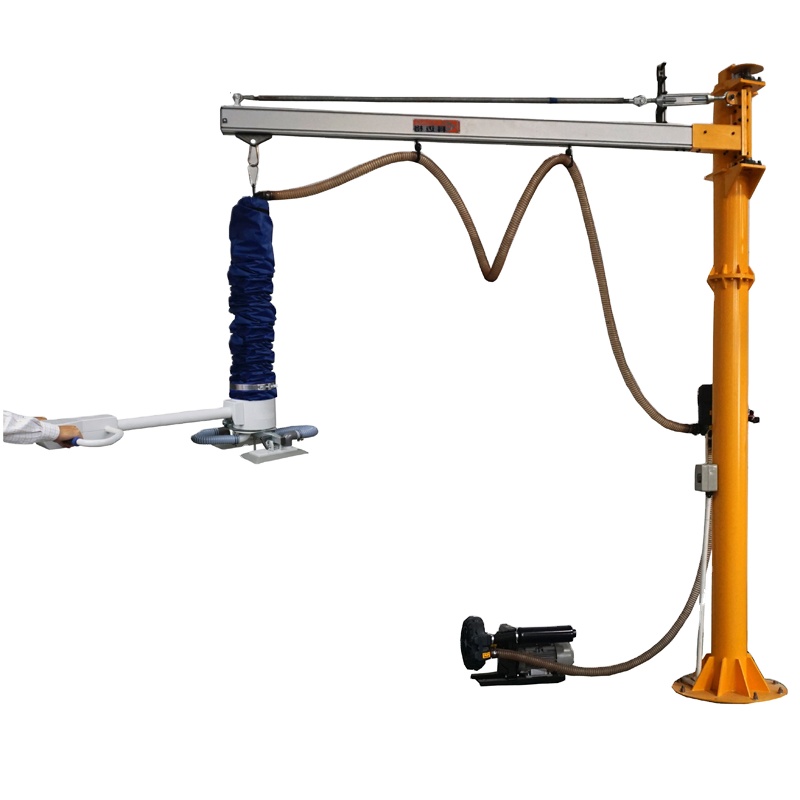

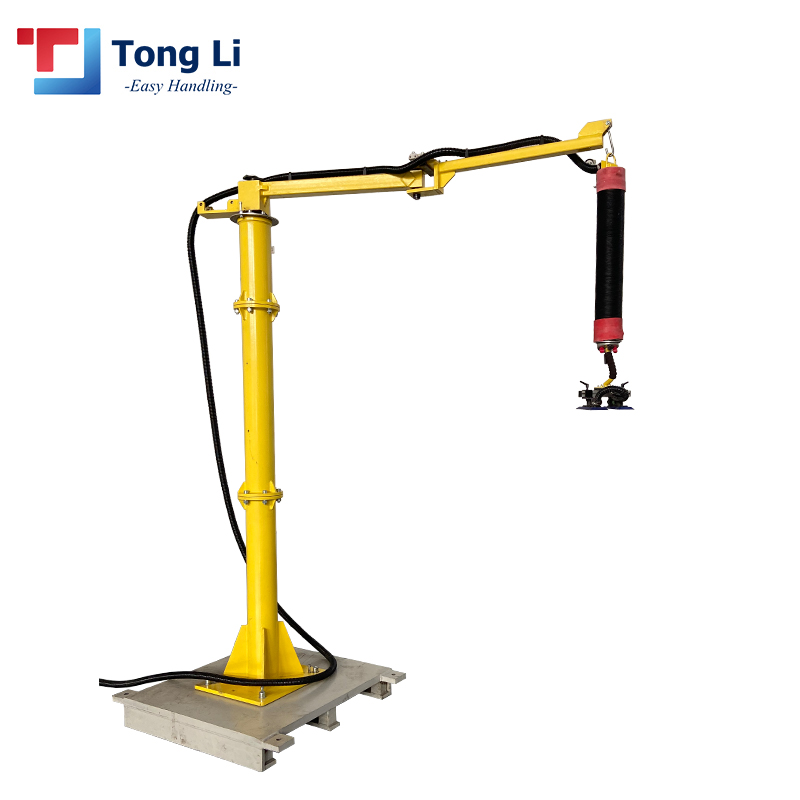

Vacuum tube lifting manipulator
Product Description

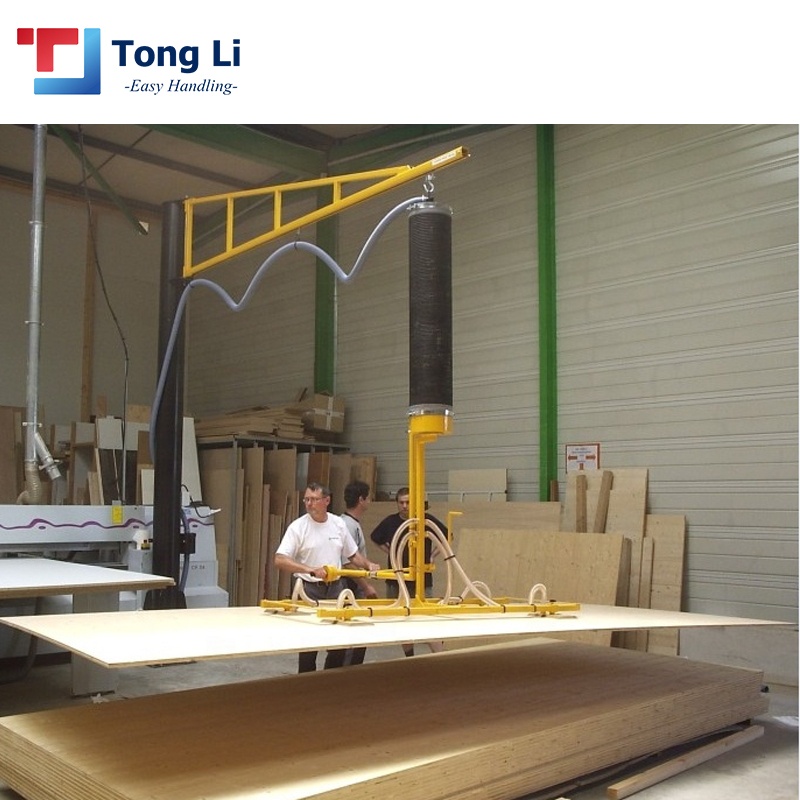

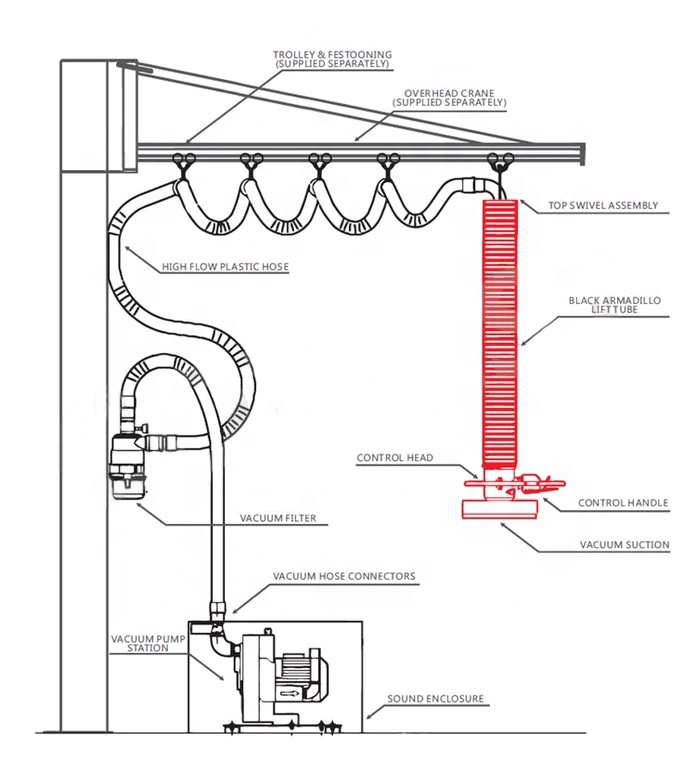

Vacuum tube cranes generally consist of columns, cantilevers, air circuit devices and suction cups. The lower end of the column is fixed to the concrete foundation through anchor bolts. The cantilever can be rotated by electric drive or manual pull. The air duct is hung on the cantilever via a mobile trolley and can be moved left and right. The vacuum tube runs in a straight line and drives the suction cup up or down vertically through vacuuming and inflating. The material is sucked by the suction cup and then transported by vacuum suction.
The main parameters
Model | TLJXS-50 | TLJXS-100 | TLJXS-200 | TLJXS-300 | TLJXS-400 |
load bearing | 50kg | 100kg | 200kg | 300kg | 400kg |
Working radius L1 | 2500mm | 2500mm | 2500mm | 2300mm | 2300mm |
Lifting height H2 | 500-2000mm | 500-2000mm | 500-2000mm | 500-2000mm | 500-2000mm |
air pressure | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
Rotation angle A | 330° | 330° | 330° | 330° | 330° |
Rotation angle B | 300° | 300° | 300° | 300° | 300° |
Rotation angle C | 360° | 360° | 360° | 360° | 360° |
Vacuum tube cranes mainly have the following outstanding features:1. Fast running speed 2. Low noise 3. Safe to use 4. Safe adsorption 5. Simple operation
